Toyota RAV4 — V-BELT

0001 1 0002 1

1106

1601

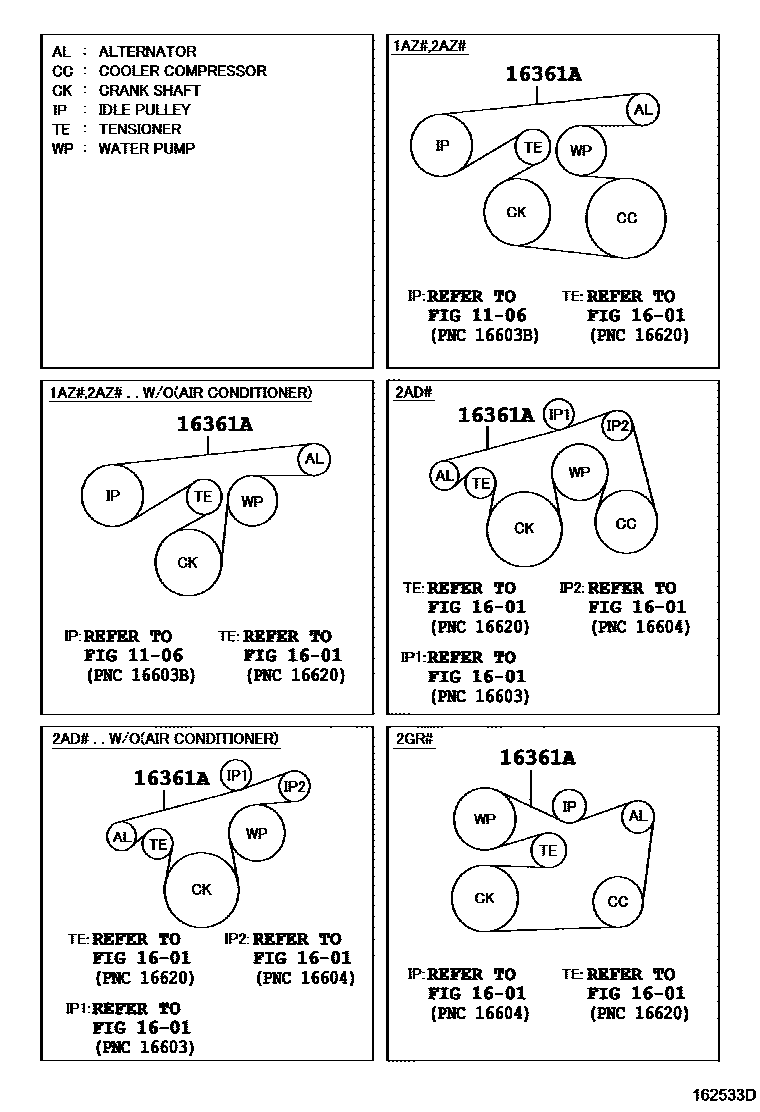

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02600i1AZFE..ACA30200511-201212

main90916-02652i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main90916-02664i3ZRFAE..ZSA3#200812-201212

main90916-W2014i2AD#..ALA30200511-200812

sub90916-W2035

main99367-C1550i2GRFE..GSA33200708-201212

sub99367-K1550

main99367-L1870i2AD#..ALA3#200812-201212

sub90916-02691

3 parts on this diagram · 2 diagrams in section
