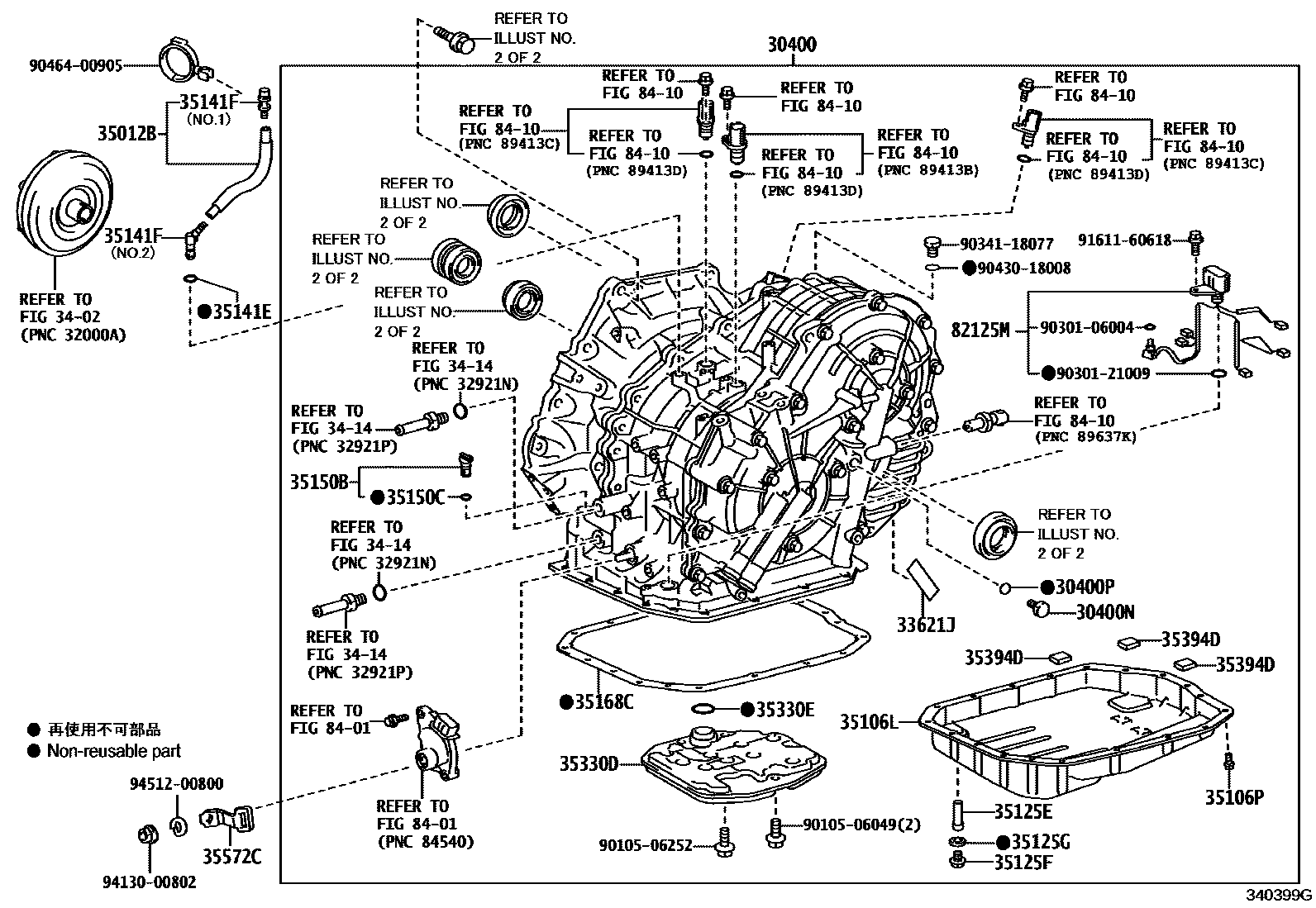

Toyota RAV4 — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K111
K111F
K114F
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33621JLABEL, TRANSAXLE OIL INFORMATION
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
3414OIL COOLER & TUBE(CVT)
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
NO.1
NO.2
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
82125MWIRE, TRANSMISSION
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010506049
main90105-06049
9010506252
main90105-06252
9030106004
main90301-06004
9030121009
main90301-21009
9034118077
main90341-18077
9043018008
main90430-18008
9046400905
main90464-00905
9161160618
main91611-60618
9413000802
main94130-00802
9451200800
main94512-00800
34 parts on this diagram · 6 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota RAV4
This section contains 99 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota RAV4. Key components include: TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING), SEAL, TYPE T OIL, NO.1(FOR CVT), SEAL, TYPE T OIL(FOR CVT OIL PUMP), PLUG, REFILL(CVT).
