Toyota RAV4 — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK(1/2) 0012 1ENGINE ROOM RELAY BLOCK(2/2) 0013 1COWL 0014 1COWL 0015 1COWL 0016 1COWL 0017 1INSTRUMENT PANEL 0018 1INSTRUMENT PANEL 0019 1INSTRUMENT PANEL 0020 1INSTRUMENT PANEL 0021 1STEERING 0022 1SEAT 0023 1DOOR,ROOF,FLOOR & BACK DOOR 0024 1DOOR,ROOF,FLOOR & BACK DOOR

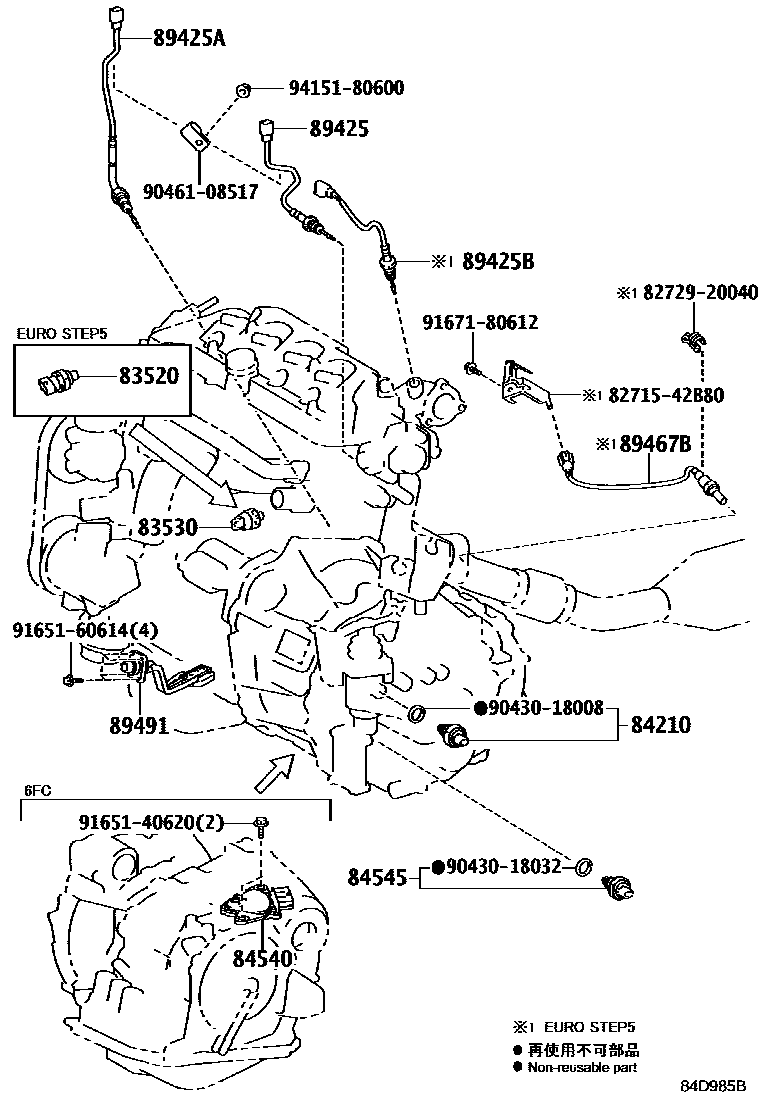

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iALA40,41201212-201510

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZSA44201310-201402

YAZAKI

sub83530-12060

main83530-28020iZSA44201212-201310

main83530-60010iALA49..RUP;ALA49..(G,M)..DCRE201510

main83530-WA011iWWA42201510-201805

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iALA4#,ZSA44..6F201212-201510

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZSA44..A201504-201510

main84540-33010iALA49..RUP..DCRL;ASA44..RUP..(G,M);ASA44..JPP..X..RUS201510

main84540-52070iZSA4#..JPP..B201510-201810

84545SWITCH, NEUTRAL POSITION

main84545-52010iWWA42201510-201805

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20380iALA4#..DCRE,DCRL201212-201510

main89425-YV010×2iWWA42201510-201805

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20390iALA4#..DCRE,DCRL201212-201510

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-20400iALA40,41201212-201510

89467BSENSOR, AIR FUEL RATIO

main89467-06200iAVA4#201712-201810

MARK=89467-06200

main89467-0R060iASA44..RUP201610

MARK=89467-OR060

main89467-12030iZSA44201212-201504

MARK:TAPE=RED

main89467-21020iASA44..RUP201610

MARK 89467-28010

main89467-42130iALA49..RUP..DCRL201510

main89467-42140iALA49..RUP..DCRE;ALA49..(G,M)..DCRE201510

main89467-48270iAVA4#201712-201810

MARK=89467-48270

main89467-52060iZSA4#..RUP;ZSA44..RHD..X;ZSA42..JPP..6F..(G,M);ZSA44..JPP..6F..(G,X)..RUS201510

main89467-YV010iWWA42201510-201805

89491SENSOR, ENGINE OIL LEVEL

main89491-20131iALA49201212-201510

main89491-20140iALA40,41201212-201510

8271542B80BRACKET,WIRING HARNESS CLAMP

main82715-42B80

8272920040

main82729-20040

9043018008

main90430-18008

9043018032

main90430-18032

9046108517

main90461-08517

9165140620

main91651-40620

9165160614

main91651-60614

9167180612

main91671-80612

9415180600

main94151-80600

19 parts on this diagram · 24 diagrams in section
