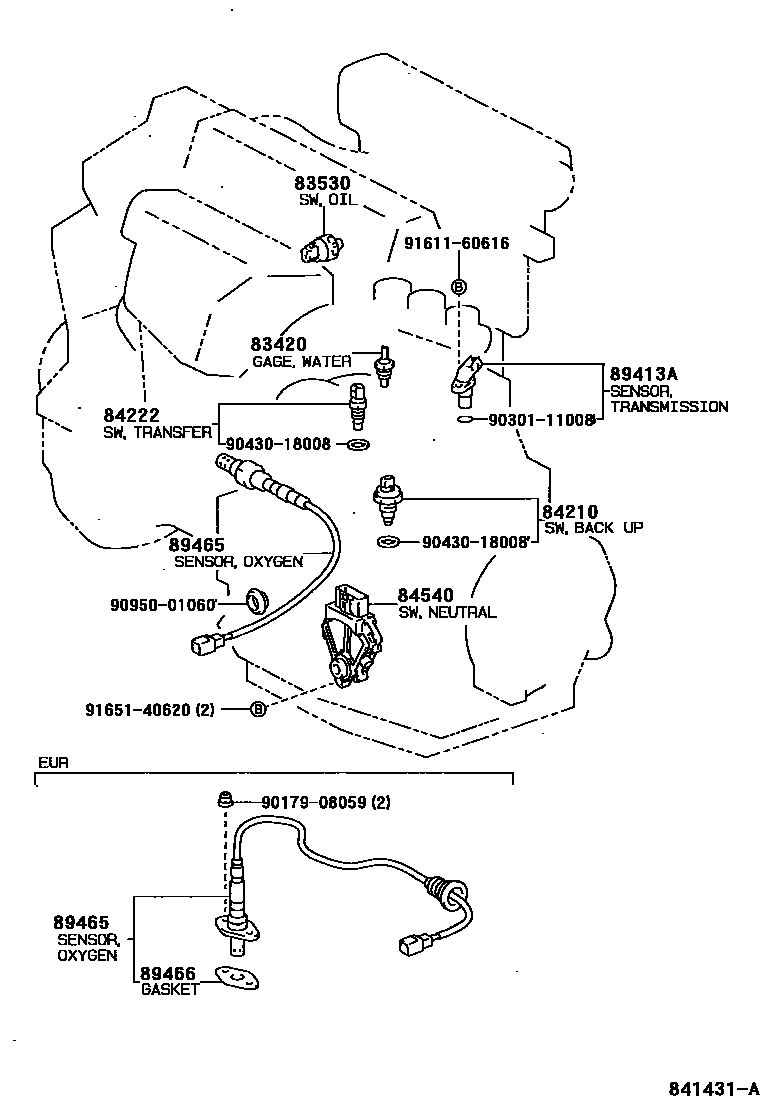

Toyota RAV4 — SWITCH & RELAY & COMPUTER

0001 1ENGINE,TRANSMISSON,TRANSFER 0002 1ENGINE ROOM RELAY 0003 1COWL,INSTRUMENT PANEL RELAY 0004 1COWL,INSTRUMENT PANEL RELAY 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1IGNITION, COMBINATION SWITCH 0008 1IGNITION, COMBINATION SWITCH 0009 1ROOF,DOOR,FLOOR SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iSXA1#199404-199608

DENSO

main83420-20040iSXA1#..EUR,GCC,GEN199608-199709

DENSO

main83420-AA010iSXA1#..EUR,GCC,GEN199610-199709

AMERICAN YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSXA1#199803

DENSO

main83530-30090iSXA1#199709-199803

main83530-60020iSXA1#199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSXA1#..MTM199404

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iSXA1#..MTM199404

84540SWITCH ASSY, NEUTRAL START

main84540-20200iSXA1#..ATM199404

89413ASENSOR, TRANSMISSION REVOLUTION

main89413-32010iSXA1#..ATM199601

sub89413-32011

89465SENSOR, OXYGEN

main89465-20270iSXA1#..ARL199404

main89465-20430iSXA1#..EUR199608

main89465-49045iSXA1#..EUR199404-199608

89466GASKET, OXYGEN SENSOR

main89466-20020iSXA1#..EUR199404-199608

9017908059

main90179-08059

9030111008

main90301-11008

9043018008

main90430-18008

9095001060

main90950-01060

9161160616

main91611-60616

9165140620

main91651-40620

14 parts on this diagram · 9 diagrams in section
