Toyota RAV4 — STARTER

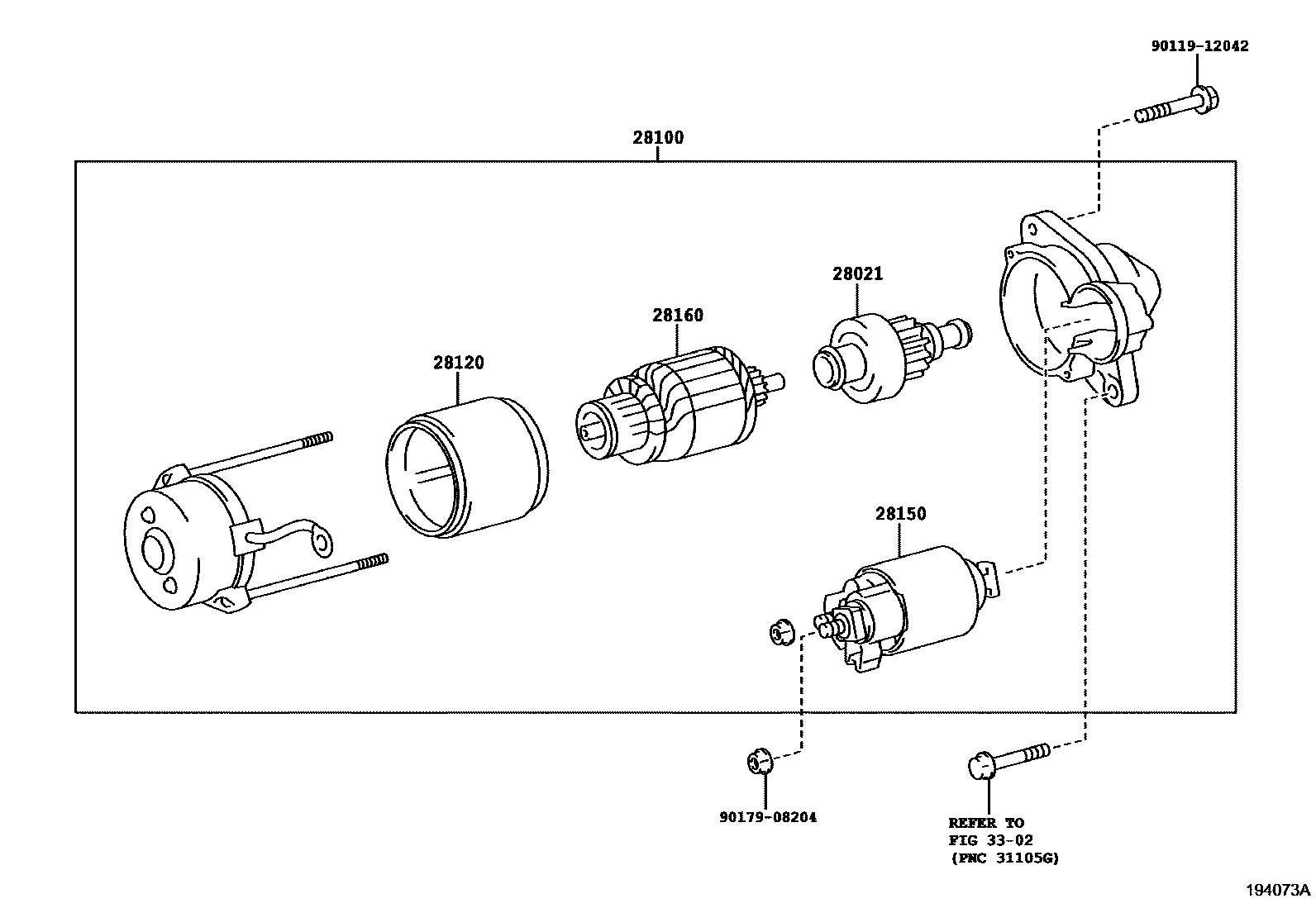

Parts diagram

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i201510-201810

main28021-21100i201504-201810

main28021-26180i201212-201810

main28021-26190i201212-201510

main28021-70020i201212-201510

28100STARTER ASSY

main28100-0X040i201510-201805

12V 2.0KW

main28100-20022i201510-201702

12V 1.7KW

main28100-26180i201212-201407

12V 2.0KW

main28100-26181i201408-201909

12V 2.0KW

main28100-26190i201212-201407

12V 1.9KW

main28100-26191i201408-201510

12V 1.9KW

main28100-28062i201708-201810

12V 1.6KW

main28100-28072i201703-201909

12V 1.7KW

main28100-37031i201212-201407

12V 1.0KW

main28100-37032i201408-201510

12V 1.0KW

main28100-37090i201510-201909

12V 1.3KW

main28100-37101i201504-201810

12V 1.7KW

main28100-37140i201510-201810

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-0X040i201510-201805

main28120-26180i201212-201810

main28120-26190i201212-201510

main28120-28060i201510-201810

main28120-28080i201510-201810

main28120-37100i201504-201810

main28120-40130i201212-201510

main28120-47240i201510-201810

28150SWITCH ASSY, MAGNET STARTER

main28150-0X040i201510-201805

main28150-22100i201212-201510

main28150-26190i201212-201510

main28150-37020i201212-201909

main28150-40090i201703-201909

main28150-47240i201510-201810

main28226-28051i201510-201705

28160ARMATURE ASSY, STARTER

main28160-0X040i201510-201805

main28160-21060i201510-201909

main28160-26180i201212-201909

main28160-26190i201212-201510

main28160-28040i201510-201909

main28160-36110i201701-201810

main28160-37100i201504-201701

main28160-38070i201510-201801

main28160-38080i201801-201810

main28160-70050i201212-201510

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

9011912042

main90119-12042

9017908204

main90179-08204

8 parts on this diagram · 9 diagrams in section

STARTER for Toyota RAV4

This section contains 36 genuine Toyota parts for the STARTER system of the Toyota RAV4. Key components include: CLUTCH SUB-ASSY, STARTER, SHAFT SUB-ASSY, PLANET CARRIER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE.
