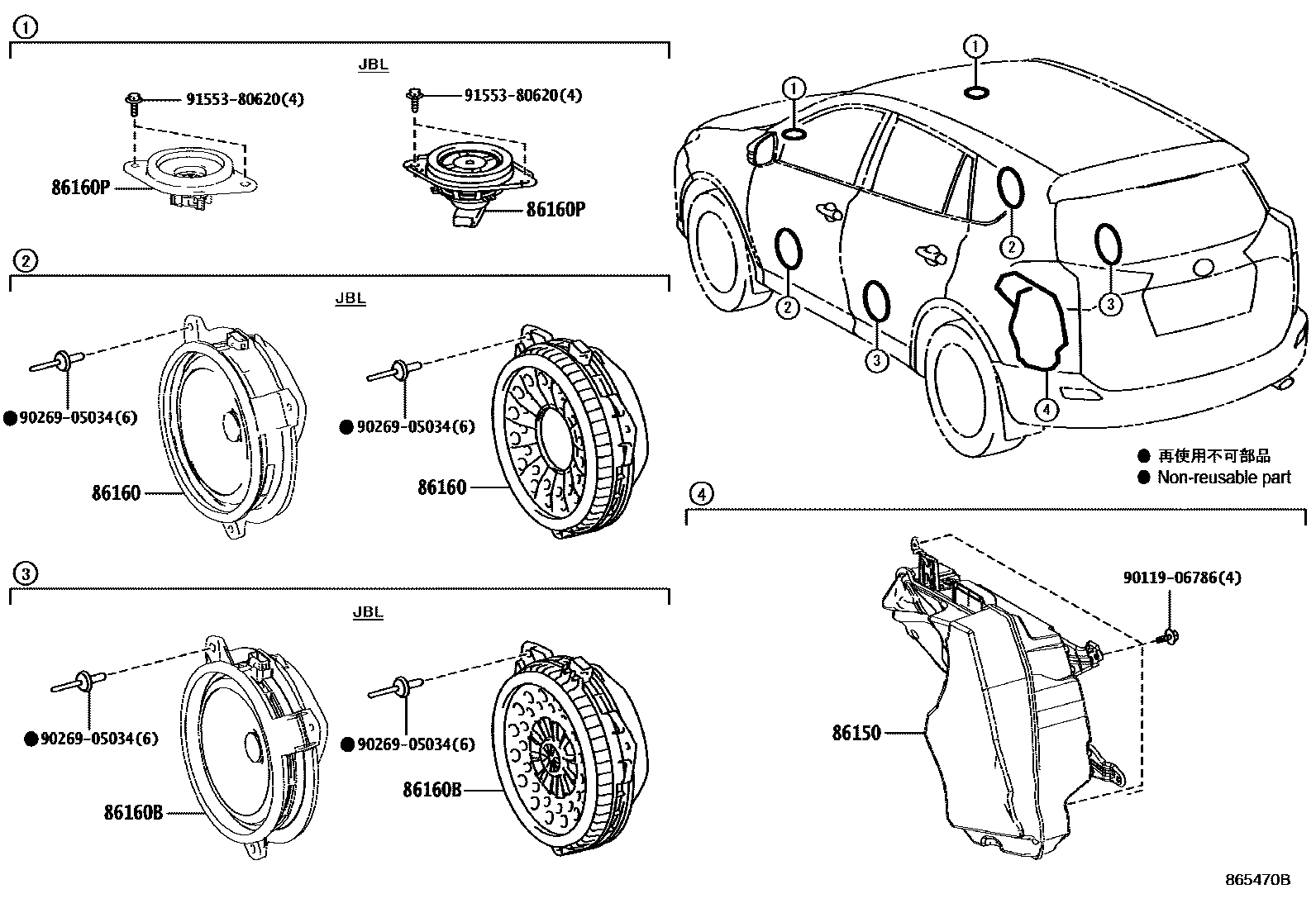

Toyota RAV4 — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
AUDIO-13MM JBL *DA(*DLX) W(DAB)
AUDIO-JBL 7INCH DA-FULL DAB EU
AUDIO-JBL 7INCH DA-FULL DAB EU
86160SPEAKER ASSY, FRONT NO.1
main86160-52331×2iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
AUDIO-JBL 7INCH DA-FULL DAB EU
AUDIO-13MM JBL *DA(*DLX) W(DAB); AUDIO-13MM JBL AVN
AUDIO-JBL 7INCH DA-FULL DAB EU
86160BSPEAKER ASSY, REAR
main86160-52331×2iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
AUDIO-13MM JBL *DA(*DLX) W(DAB)
AUDIO-JBL 7INCH DA-FULL DAB EU
86160PSPEAKER ASSY, FRONT NO.2
main86150-42010×2iALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..G..DCR;ALA49,ZSA44..RHD..(6F,6FC)..X201212-201510
AUDIO-6SPEAKER(AUDIO LESS)
AUDIO-13MM JBL *DA(*DLX) W(DAB)
AUDIO-JBL 7INCH DA-FULL DAB EU
9011906786
main90119-06786
9026905034
main90269-05034
9155380620
main91553-80620
7 parts on this diagram · 2 diagrams in section
SPEAKER for Toyota RAV4
This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota RAV4. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
