Toyota RAV4 — SPEAKER

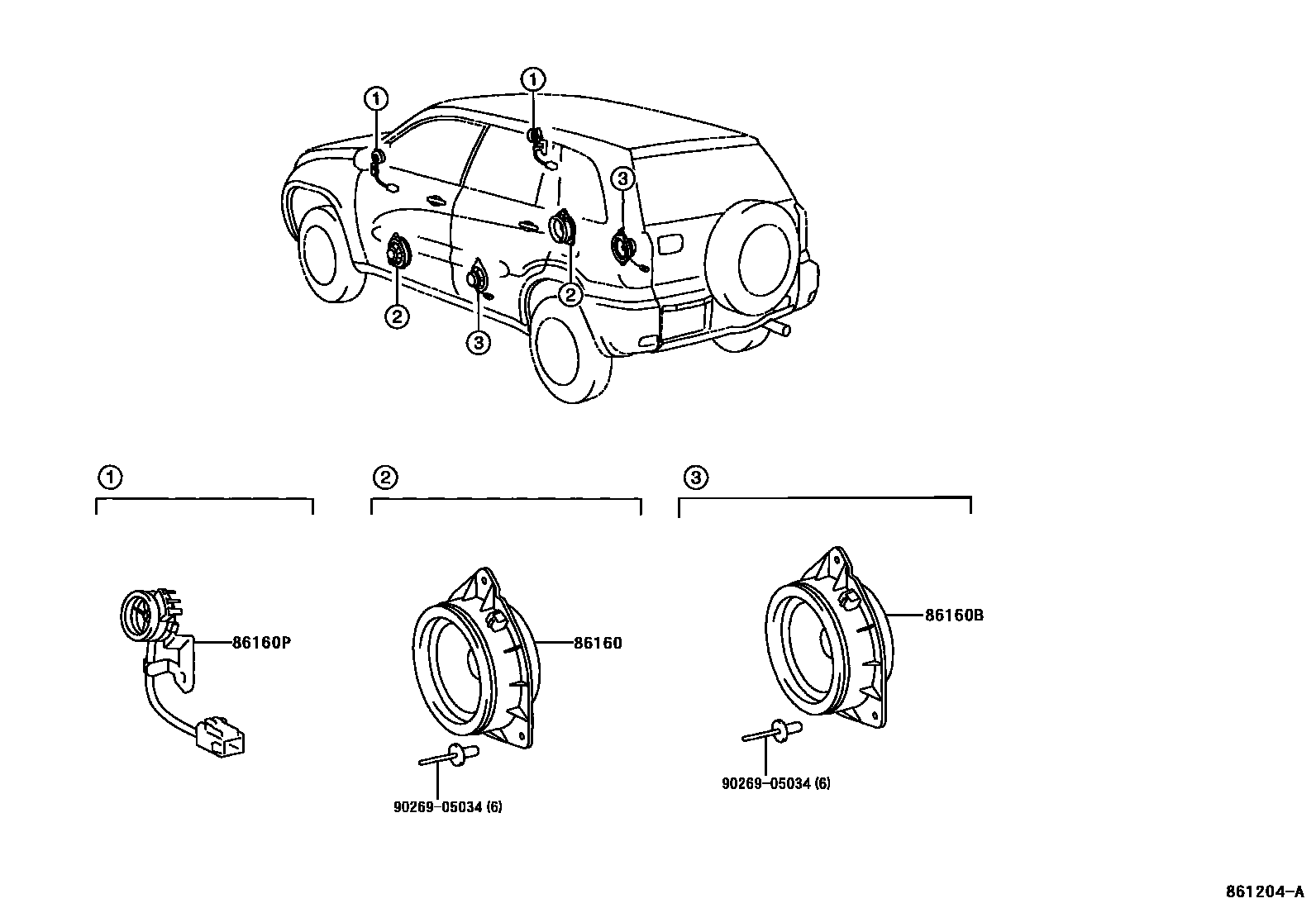

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-0W810i200307
W(JBL PREMIUM SOUND SYSTEM)
main86160-42070i200008-200407
main86160-42110i200407
86160BSPEAKER ASSY, REAR
main86160-0W820i200307
W(JBL PREMIUM SOUND SYSTEM)
main86160-42070i200008-200407
main86160-42110i200407
86160PSPEAKER ASSY, FRONT NO.2
main86160-0W850i200307
W(JBL PREMIUM SOUND SYSTEM),RH
main86160-0W860i200307
W(JBL PREMIUM SOUND SYSTEM),LH
main86160-42090i200008-200307
RH
main86160-42100i200008-200307
LH
9026905034
main90269-05034

4 parts on this diagram · 1 diagram in section

SPEAKER for Toyota RAV4

This section contains 4 genuine Toyota parts for the SPEAKER system of the Toyota RAV4. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
