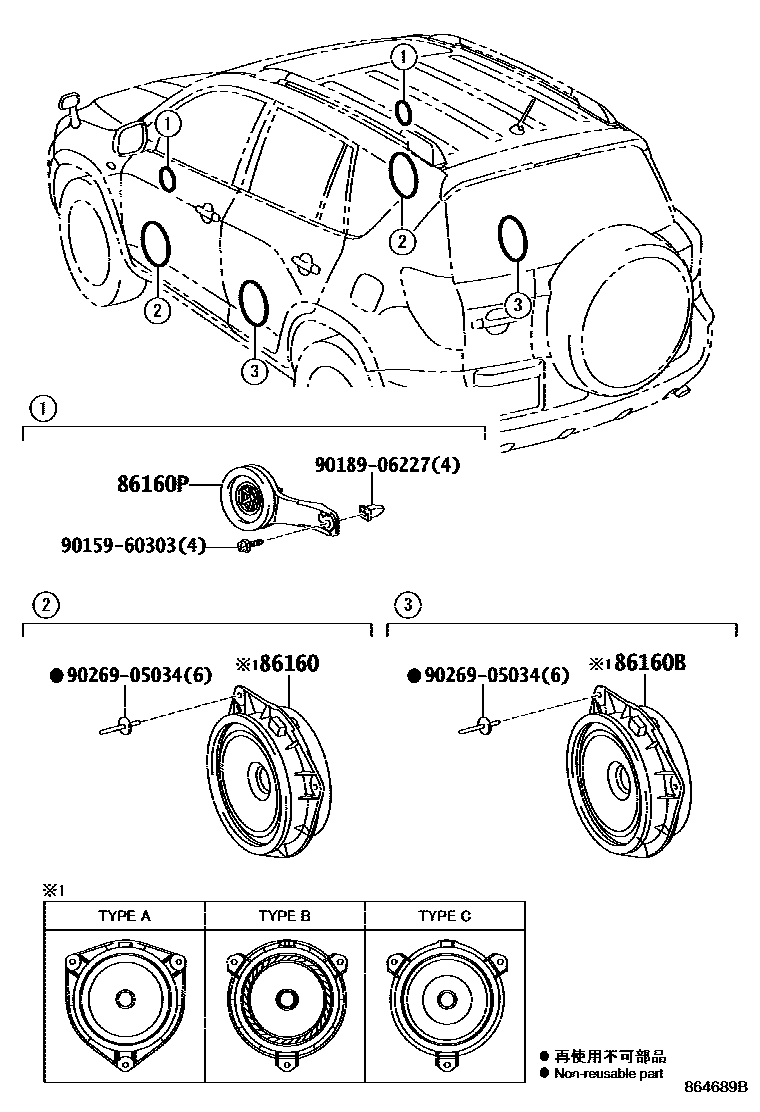

Toyota RAV4 — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10iACA3#,ALA30,GSA33200511-201107

TYPE A:REFER ILLUST.

main86160-2B580iACA3#,ALA30,GSA33200511-201011

TYPE B:REFER ILLUST.

main86160-52330iACA3#,ALA3#,GSA33,ZSA3#201012-201212

TYPE C:REFER ILLUST.

sub86160-52331

86160BSPEAKER ASSY, REAR

main86160-22A10iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201107

TYPE A:REFER ILLUST.

main86160-2B580iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201011

TYPE B:REFER ILLUST.

main86160-52330iACA3#,ALA3#,GSA33,ZSA3#201012-201212

TYPE C:REFER ILLUST.

sub86160-52331

86160PSPEAKER ASSY, FRONT NO.2

main86160-42120iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

RH

main86160-42130iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

LH

9015960303

main90159-60303

9018906227

main90189-06227

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section
