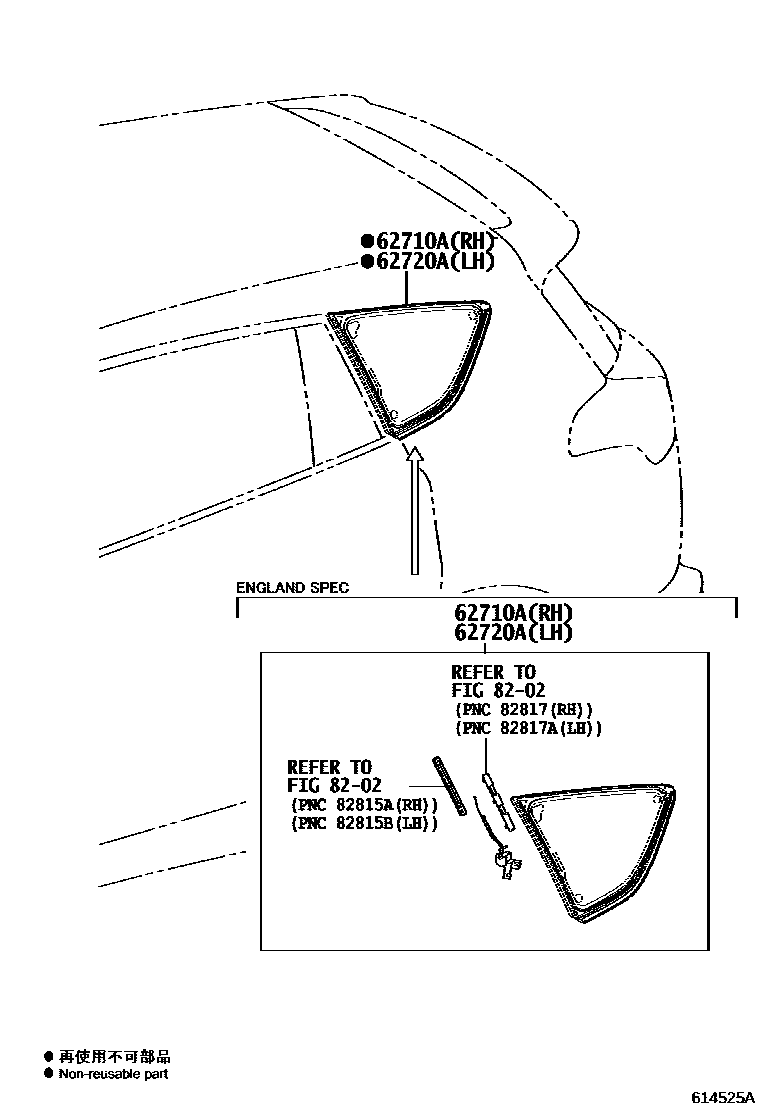

Toyota RAV4 — SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-42310iALA4#,ZSA44..M,X201212-201510

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62710-42320iALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X)201212-201510

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)

main62710-42330iAVA4#..RHD..M201510-201810

UK,MALTA SPEC&REAR SIDE GLASS-REINFORCED(GRAY)

62720AWINDOW ASSY, QUARTER, LH

main62720-42340iALA4#,ZSA44..M,X201212-201510

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62720-42350iASA44,AVA4#,WWA42,ZSA44..G..EUR201510-201810

REAR SIDE GLASS-REINFORCED(GRAY)

main62720-42360iAVA4#..RHD..M201510-201810

UK,MALTA SPEC&REAR SIDE GLASS-REINFORCED(GRAY)

8202

3 parts on this diagram · 1 diagram in section
