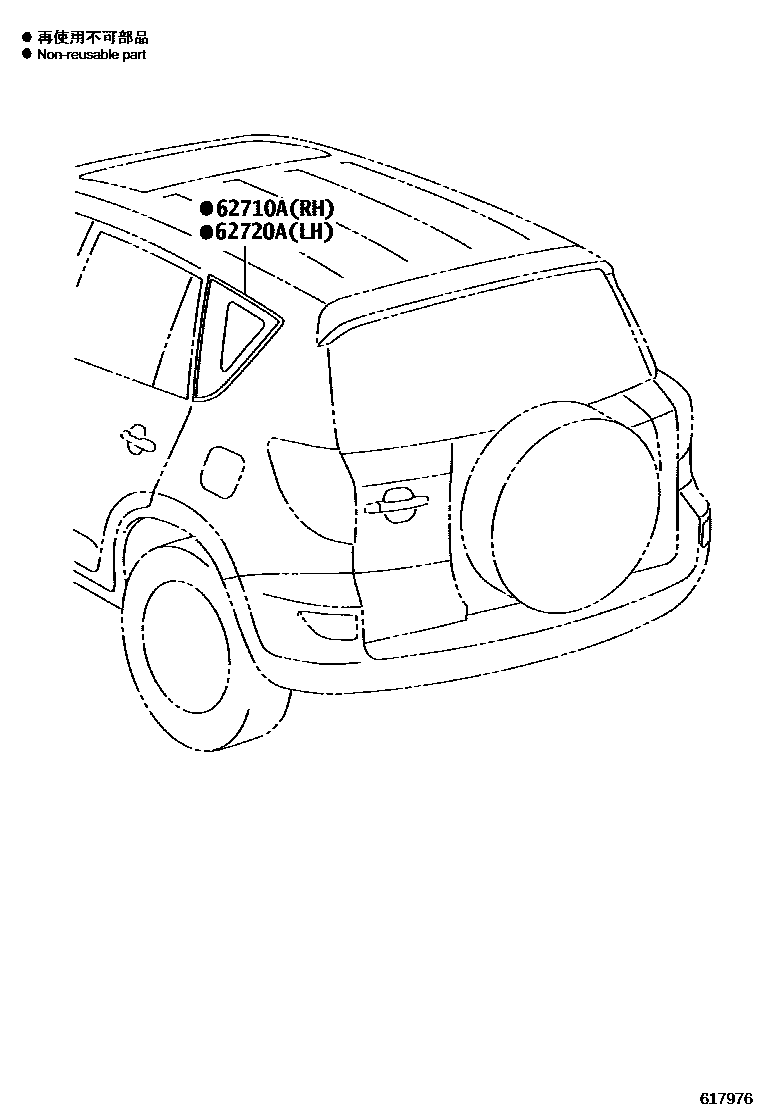

Toyota RAV4 — SIDE WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-42250iACA33..4FC..G..(ARL,GEN)200511-200808

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62710-42260iACA33,38,GSA33..X..ARL200808-201212

*TEM,T=3.1,DARK GRAY

main62710-42270iACA30,31,ALA30200511-200812

*UVCT,T=3.1,GREEN

main62710-42280iALA3#,ZSA3#..G200812-201212

*TEM,T=3.1,DARK GRAY

main62710-42380iACA33,38..4FC..GEN201206-201212

*UVCT,T=3.1,GREEN,BRAZIL SPEC

sub62710-42381

62720AWINDOW ASSY, QUARTER, LH

main62720-42280iACA33..4FC..G..(ARL,GEN)200511-200808

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62720-42290iACA33,38,GSA33..G..(ARL,GEN)200511-200808

*TEM,T=3.1,DARK.GRAY

main62720-42300iACA30,31,ALA30200511-200812

*UVCT,T=3.1,GREEN

main62720-42310iALA3#,ZSA3#..G200812-201212

*TEM,T=3.1,DARK.GRAY

main62720-42410iACA33,38..4FC..GEN201206-201212

*UVCT,T=3.1,GREEN,BRAZIL SPEC

sub62720-42411

2 parts on this diagram · 2 diagrams in section
