Toyota RAV4 — SIDE WINDOW

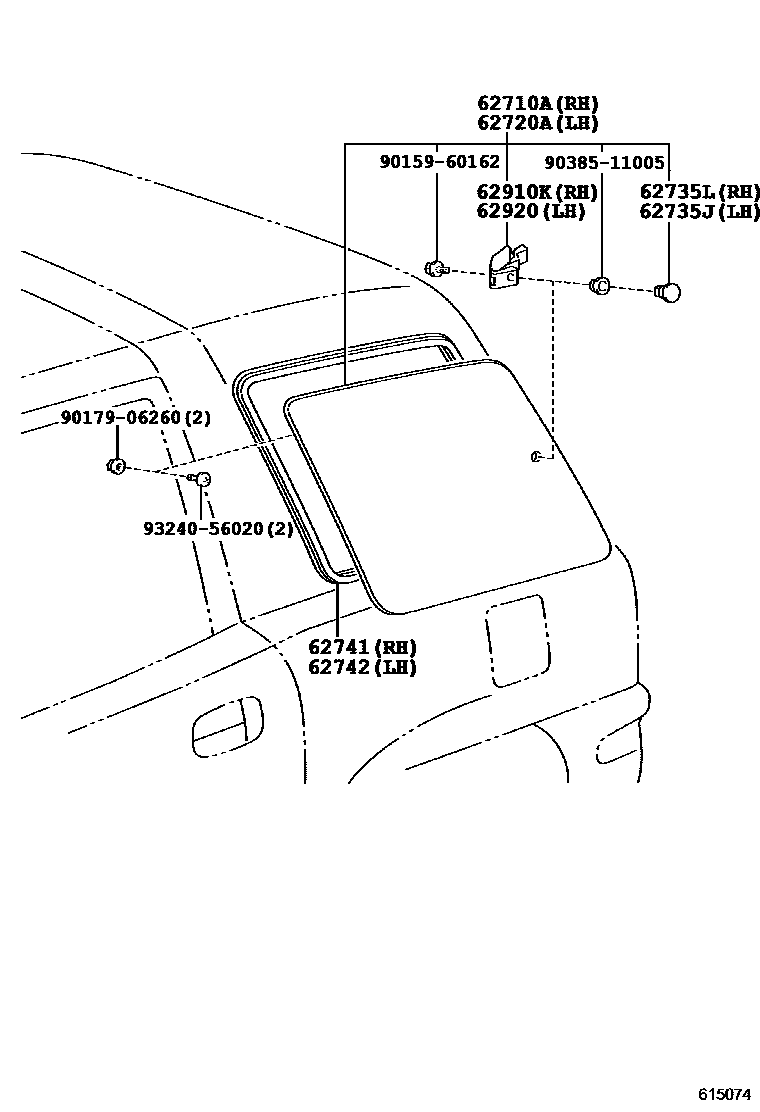

Parts diagram
62710AWINDOW ASSY, QUARTER, RH
main62710-42010i199404-199504
*TT,T=3.1,BLUE
main62710-42030i199504-199608
*TT,T=3.1,GREEN
main62710-42030-B0i199608-199709
*TT,T=3.1,GREEN,BLUISH GRAY,TRIM1#
main62710-42030-B1i199709
*TT,T=3.1,GREEN,SHADOW GRAY,TRIM10,11,19
main62710-42040i199504
*TT,T=3.1,GREEN
62720AWINDOW ASSY, QUARTER, LH
main62720-42010i199404-199504
*TT,T=3.1,BLUE
main62720-42030i199511-199608
*TT,T=3.1,GREEN,HONG KONG SPEC
main62720-42030i199511-199608
*TT,T=3.1,GREEN,MIDDLE SOUTH AMERICA SPEC
main62720-42030i199504-199608
*TT,T=3.1,GREEN
main62720-42040i199504
*TT,T=3.1,GREEN
main62720-42070-B0i199610-199709
*TT,T=3.1,GREEN,BLUISH GRAY,TRIM1#
main62720-42070-B0i199610-199709
*TT,T=3.1,GREEN,HONG KONG SPEC,BLUISH GRAY,TRIM1#
main62720-42070-B0i199610-199709
*TT,T=3.1,GREEN,MIDDLE SOUTH AMERICA SPEC,BLUISH GRAY,TRIM1#
main62720-42070-B1i199709
*TT,T=3.1,GREEN,MIDDLE SOUTH AMERICA SPEC,SHADOW GRAY,TRIM10,11,19
main62720-42070-B1i199709
*TT,T=3.1,GREEN,SHADOW GRAY,TRIM10,11,19
main62720-42070-B1i199709
*TT,T=3.1,GREEN,HONG KONG SPEC,SHADOW GRAY,TRIM10,11,19
main62720-42080i199511-199610
*TT,T=3.1,GREEN
main62720-42080-B0i199610-199709
*TT,T=3.1,GREEN,BLUISH GRAY,TRIM1#
62735JRETAINER, QUARTER WINDOW HINGE, LH
main62735-95D00i199511-199602
MIDDLE SOUTH AMERICA SPEC
main62735-95D00i199404-199511
main62735-95D00i199511-199602
HONG KONG SPEC
62735LRETAINER, QUARTER WINDOW HINGE, RH
main62735-95D00i199404
62741WEATHERSTRIP, QUARTER WINDOW, RH
main62741-42010i199404
62742WEATHERSTRIP, QUARTER WINDOW, LH
main62742-42010i199404-199511
main62742-42010i199511-199602
HONG KONG SPEC
main62742-42010i199511-199602
MIDDLE SOUTH AMERICA SPEC
62910KLOCK ASSY, QUARTER WINDOW, RH
main62910-42010i199404-199608
main62910-42010-B0i199608-199709
BLUISH GRAY,TRIM1#
main62910-42010-B1i199709
SHADOW GRAY,TRIM10,11,19
62920LOCK ASSY, QUARTER WINDOW, LH
main62920-42010i199404-199511
main62920-42010i199511-199608
HONG KONG SPEC
main62920-42010i199511-199608
MIDDLE SOUTH AMERICA SPEC
main62920-42010-B0i199608-199709
MIDDLE SOUTH AMERICA SPEC,BLUISH GRAY,TRIM1#
main62920-42010-B0i199608-199709
BLUISH GRAY,TRIM1#
main62920-42010-B0i199608-199709
HONG KONG SPEC,BLUISH GRAY,TRIM1#
main62920-42010-B1i199709
HONG KONG SPEC,SHADOW GRAY,TRIM10,11,19
main62920-42010-B1i199709
SHADOW GRAY,TRIM10,11,19
main62920-42010-B1i199709
MIDDLE SOUTH AMERICA SPEC,SHADOW GRAY,TRIM10,11,19
main62920-42020i199511-199608
main62920-42020-B0i199608-199709
BLUISH GRAY,TRIM1#
9015960162
main90159-60162
9017906260
main90179-06260
9038511005
main90385-11005
9324056020
main93240-56020

12 parts on this diagram · 2 diagrams in section

SIDE WINDOW for Toyota RAV4

This section contains 12 genuine Toyota parts for the SIDE WINDOW system of the Toyota RAV4. Key components include: WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, RETAINER, QUARTER WINDOW HINGE, LH, RETAINER, QUARTER WINDOW HINGE, RH, WEATHERSTRIP, QUARTER WINDOW, RH.
