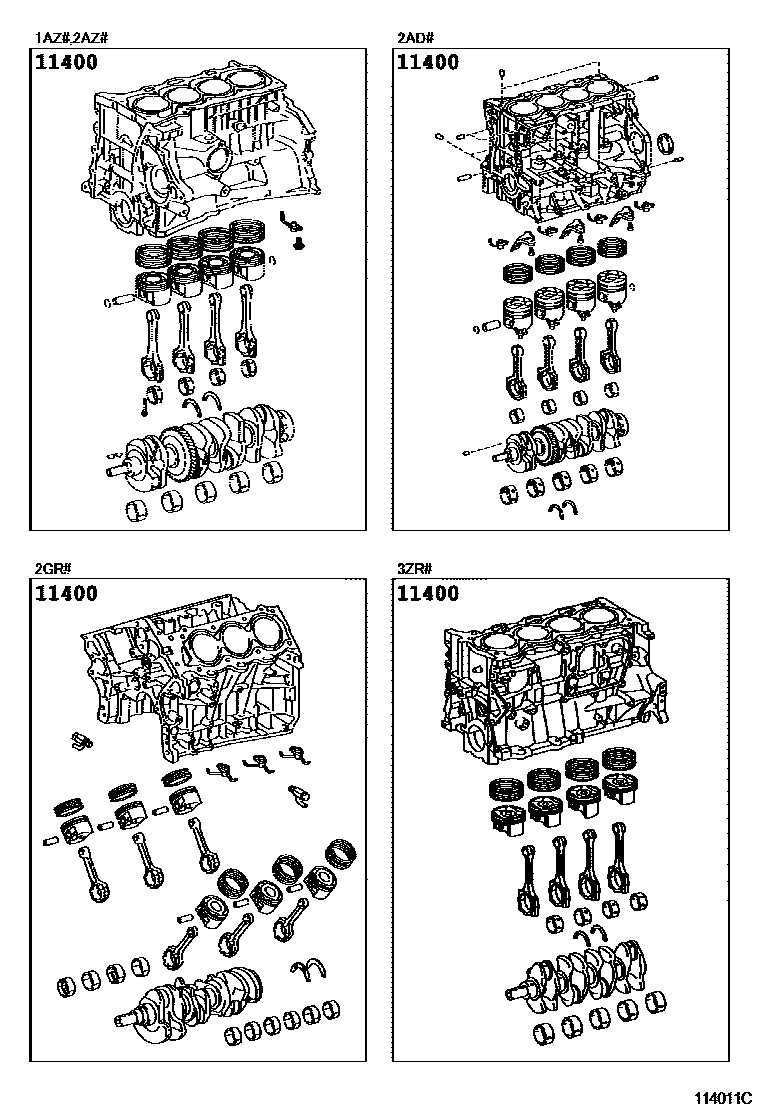

Toyota RAV4 — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-26090i2ADFHV..ALA30200602-200807

sub11400-0R022

main11400-26100i2ADFTV..ALA30200602-200807

sub11400-0R010

main11400-26110i2ADFHV..ALA30200511-200602

sub11400-26090

main11400-26120i2ADFTV..ALA30200511-200602

sub11400-26100

main11400-26151i2AD#..ALA3#200812-201212

sub11400-0R051

main11400-26210i2ADFHV..ALA30200807-200812

sub11400-0R070

main11400-26220i2ADFTV..ALA30..RHD..DCR200807-200812

BERMUDA SPEC

sub11400-0R060

main11400-26220i2ADFTV..ALA30..LHD..DCR200807-200812

SOUTH AFRICA SPEC

sub11400-0R060

main11400-26220i2ADFTV..ALA30..LHD..DCR200807-200812

ALGERIA SPEC

sub11400-0R060

main11400-28070i1AZFE..ACA30200511-200608

sub11400-28261

main11400-28261i1AZFE..ACA30200608-201212

main11400-28400i2AZFE..ACA33..ARL200601-201212

sub11400-28510

main11400-28490i2AZFE..ACA33..ARL200511-200601

sub11400-28400

main11400-28510i2AZFE..ACA33,38..LHD..4FC200808-201212

main11400-28510i2AZFE..ACA31,33,38..LHD200511-200801

*195

main11400-31161i2GRFE..GSA33200708-200905

sub11400-31163

main11400-31163i2GRFE..GSA33200905-201210

sub11400-39095

main11400-31360i2GRFE..GSA33201210-201212

sub11400-39115

main11400-37090i3ZRFAE..ZSA3#200812-201212

sub11400-37210

1 parts on this diagram · 1 diagram in section
