Toyota RAV4 — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42903iALA4#,ZSA44201212-201510

main63102-42905iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42030iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0R030iALA49,ASA44,ZSA4#..RUP201610

main63104-42020iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

63111PANEL, ROOF

main63111-0R070iALA49,ASA44,ZSA4#..RUP201610

main63111-42230iALA4#,ZSA44201212-201510

main63111-42231iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201510-201810

63118SUPPORT, ROOF PANEL, RH

main63118-42070

63119SUPPORT, ROOF PANEL, LH

main63118-42070

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42050

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42060iALA4#,ZSA44201212-201810

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42041iALA4#,ZSA44201212-201810

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-42020iALA4#,ZSA44201212-201810

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42070iALA4#,ZSA44201212-201810

63185DBRACKET, ROOF RACK, FRONT

main63185-42020iALA49..X..DCR;ALA49..LHD..G..DCR;ALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201810

63187ABRACKET, ROOF RACK, REAR

main63187-42010iALA4#,ZSA44201212-201810

63479RETAINER, ROOF INNER RACK

main63479-42010iALA4#,ZSA44201212-201810

9011908C47

main90119-08C47

9017906274

main90179-06274

91621J0814

main91621-J0814

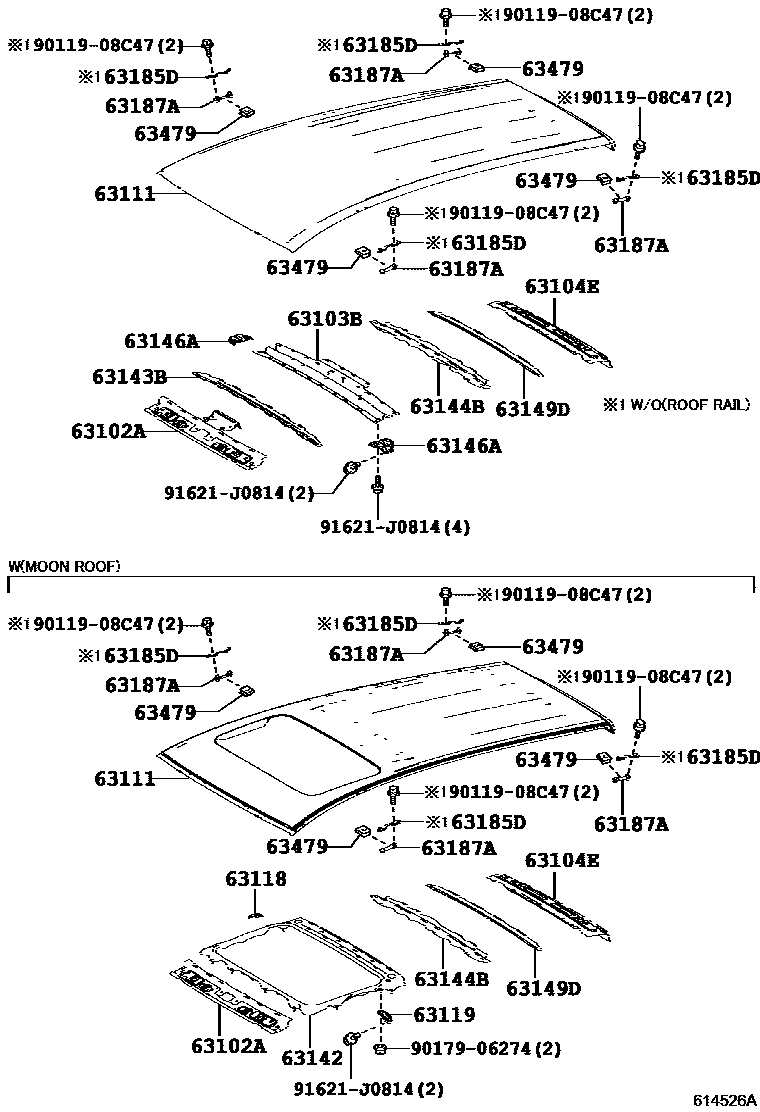

17 parts on this diagram · 3 diagrams in section
