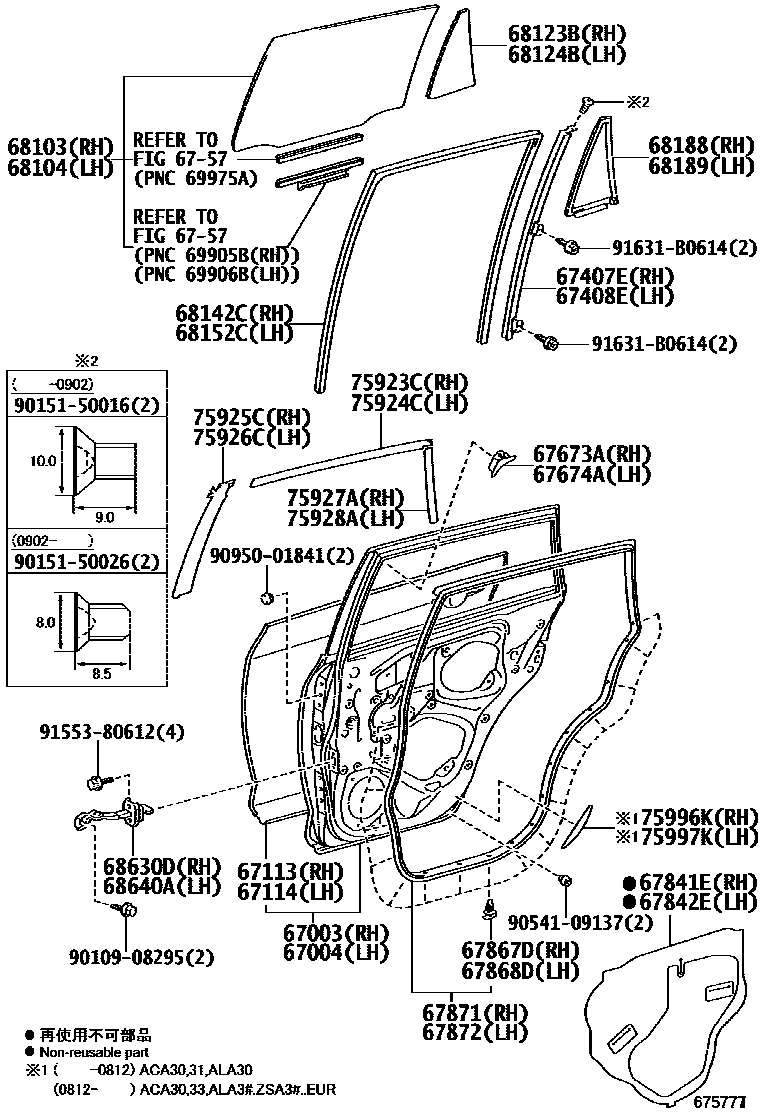

Toyota RAV4 — REAR DOOR PANEL & GLASS
67113PANEL, REAR DOOR, OUTER RH
OVER FENDER-WITH
67114PANEL, REAR DOOR, OUTER LH
OVER FENDER-WITH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,BRUNEI SPEC
*UVCT,T=3.1,GREEN,BRAZIL SPEC
*UVCT,T=3.1,GREEN,SINGAPORE SPEC
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*TT,T=3.1,DARK GRAY
*UVCT,T=3.1,GREEN,IRELAND SPEC
*UVCT,T=3.1,GREEN
main68103-42130iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200812-201212
*TT,T=3.1,DARK GRAY
main68103-42130iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200812-201212
*TT,T=3.1,DARK GRAY,IRELAND SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RRCAMERA DISPLAY
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.1,GREEN,BRUNEI SPEC
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,BRAZIL SPEC
*UVCT,T=3.1,GREEN,SINGAPORE SPEC
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*TT,T=3.1,DARK GRAY
main68104-42120iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200511-201212
*UVCT,T=3.1,GREEN
main68104-42120iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200812-201212
*UVCT,T=3.1,GREEN,IRELAND SPEC
main68104-42130iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200812-201212
*TT,T=3.1,DARK GRAY,IRELAND SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RRCAMERA DISPLAY
*TT,T=3.1,DARK GRAY
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.1,GREEN,SINGAPORE SPEC
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,BRAZIL SPEC
*UVCT,T=3.1,GREEN,BRUNEI SPEC
*TT,T=3.1,DARK GRAY
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
main68123-42110iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200511-201212
*UVCT,T=3.1,GREEN
main68123-42110iALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ALA30,ZSA3#..RHD..G..(DCRE,DCRL,HTWVM)200812-201212
*UVCT,T=3.1,GREEN,IRELAND SPEC
*TT,T=3.1,DARK GRAY,IRELAND SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RRCAMERA DISPLAY
*TT,T=3.1,DARK GRAY
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.1,GREEN,SINGAPORE SPEC
*UVCT,T=3.1,GREEN,BRUNEI SPEC
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,BRAZIL SPEC
*TT,T=3.1,DARK GRAY
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,IRELAND SPEC
*TT,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*TT,T=3.1,DARK GRAY
*TT,T=3.1,DARK GRAY,IRELAND SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RRCAMERA DISPLAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
75926CTAPE, BLACK OUT, NO.3 LH
main75926-42020iALA30..G..BTYPE;ALA30..X..DCRE..BTYPE;ACA30,ALA30..(DCR,HTWC)..ATYPE;ALA35,ZSA3#..(DCRE,HTWVM)..BTYPE200511-201212
sub75926-42030
75927ATAPE, BLACK OUT, NO.4 RH
75928ATAPE, BLACK OUT, LH
75996KSTRIPE, REAR BODY, RH
75997KSTRIPE, REAR BODY, LH
9010908295
main90109-08295
9015150016
main90151-50016
9015150026
main90151-50026
9054109137
main90541-09137
9095001841
main90950-01841
9155380612
main91553-80612
91631B0614
main91631-B0614
40 parts on this diagram · 2 diagrams in section
