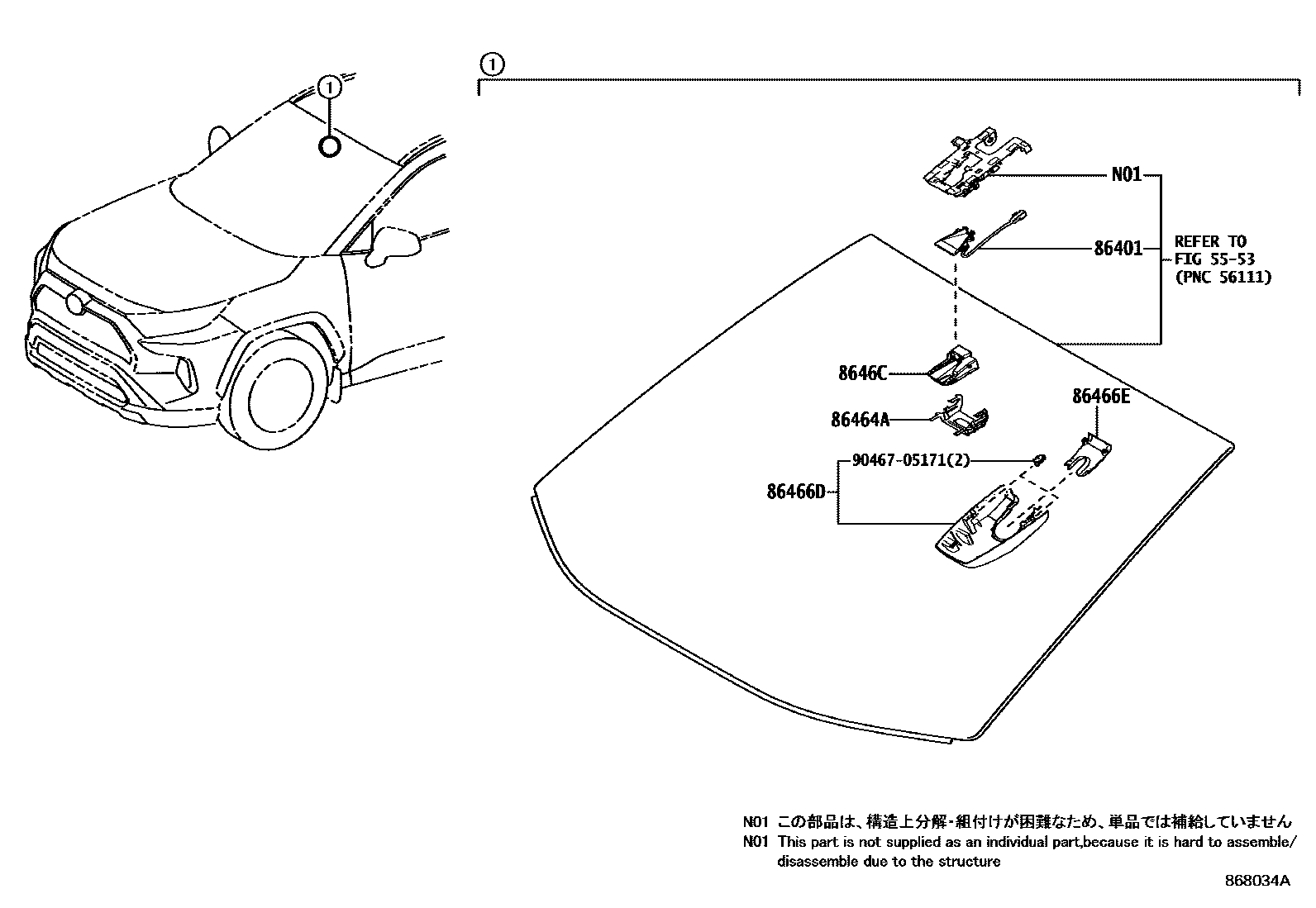

Toyota RAV4 — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-42041iAXAP54..RHD202006-202210

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXAP54..RHD202006-202210

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060iAXAP54202310

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070supersedes 86466-42130iAXAP54202310

8646CCAMERA, FORWARD RECOGNITION

main8646C-42050iAXAP54..LHD202210-202310

ACTIVE SAFETY PACKAGE-WITHOUT,*614

main8646C-42080iAXAP54..RHD202006-202101

*614

main8646C-42081iAXAP54..RHD202101-202210

*614

main8646C-42120iAXAP54202310-202501

main8646C-42121iAXAP54202501

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
