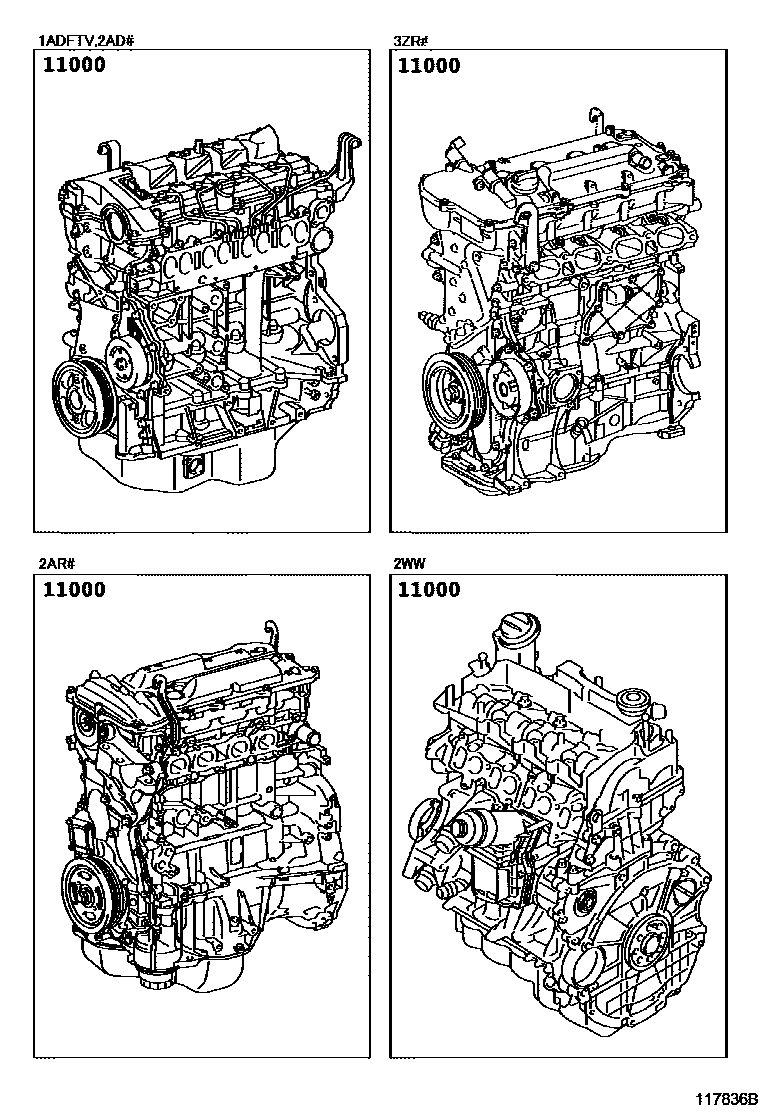

Toyota RAV4 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0R220supersedes 19000-26630i1ADFTV..ALA40201304-201311

(L)

main19000-0R230i2AD#..ALA49..DCRE,DCRL201304-201311

(L)

main19000-0R270i2ADFTV..ALA49..DCR201506-201510

*145

main19000-0V240i2ARFXE..AVA4#..EUR201510-201810

EXCEPT FOR WVTA&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE),*347

main19000-26442i2AD#..ALA49..DCRE,DCRL201311-201510

main19000-26501i2ADFTV..ALA49..DCR201212-201506

main19000-26630i1ADFTV..ALA40201212-201311

(J)

main19000-36381i2ARFE..ASA44201510-201909

main19000-36440supersedes 19000-36430i2ARFXE..AVA4#..EUR201510-201810

EXCEPT FOR WVTA&EXHAUST EMISSION CONTROL-LESS(OBD EUROPE EURO5 GASOLINE),*524

main19000-37362i3ZRFAE..ZSA44201212-201504

sub19000-37364

main19000-37672i3ZRFE..ZSA4#201510-201909

main19000-37770i3ZRFAE..ZSA44201504-201505

main19000-37771i3ZRFAE..ZSA44201505-201510

main19000-WA030i2WW..WWA42201510-201805

main19000-0R240supersedes 19000-26640i1ADFTV..ALA41201311-201510

1AD-FTV,(L)

1 parts on this diagram · 1 diagram in section
