Toyota RAV4 — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

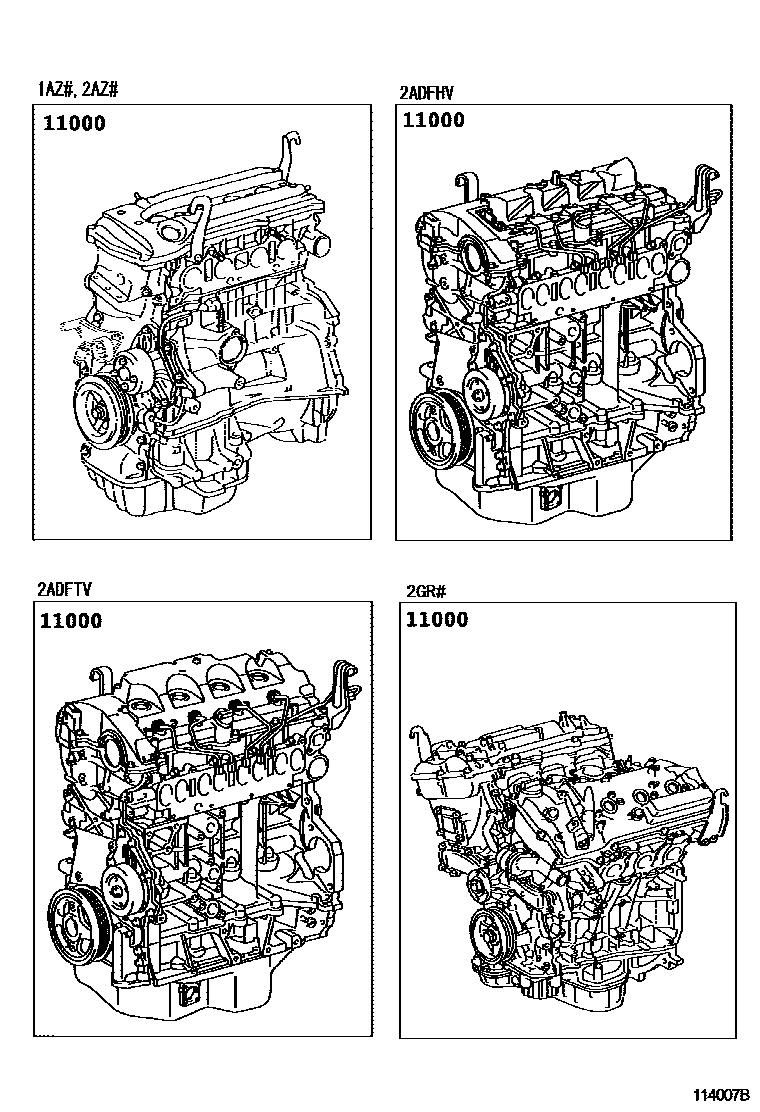

11000ENGINE ASSY, PARTIAL

main19000-26360i2ADFHV..ALA30200511-200802

sub19000-26530

main19000-26370i2ADFTV..ALA30..DCR200511-200711

sub19000-26540

main19000-26410i2ADFTV..ALA30..DCRE200701-200802

sub19000-26560

main19000-26440i2ADFHV..ALA30..6FC;2ADFTV..ALA3#..DCRE200812-201208

sub19000-26442

sub25760-26200

sub25770-26172

main19000-26442i2ADFHV..ALA30..6FC;2ADFTV..ALA3#..DCRE201208-201212

sub19000-0R230

main19000-26450i2ADFHV..ALA30..6F200812-201208

sub19000-26452

sub25760-26200

sub25770-26172

main19000-26452i2ADFHV..ALA30..6F201208-201212

sub19000-0R300

main19000-26500i2ADFTV..ALA3#..DCR200812-201208

sub19000-26501

sub25760-26200

sub25770-26172

main19000-26501i2ADFTV..ALA30..DCR201208-201212

sub19000-0R270

main19000-26530i2ADFHV..ALA30200802-200812

sub19000-0R310

main19000-26540i2ADFTV..ALA30..DCR200711-200812

sub19000-0R250

main19000-26560i2ADFTV..ALA30..DCRE200802-200812

sub19000-0R260

main19000-28A80i1AZFE..ACA30200511-200608

sub19000-28A81

main19000-28A81i1AZFE..ACA30200608-201212

main19000-28A90i2AZFE..ACA31,33,38..LHD200801-200812

sub19000-28D00

main19000-28B30i2AZFE..ACA33,38..4FC..ARL200511-201204

sub19000-28B31

main19000-28B31i2AZFE..ACA33,38..5F..ARL201204-201212

sub19000-28B32

main19000-28D00i2AZFE..ACA31,33,38..LHD200511-200801

*195

sub19000-28D01

main19000-28D00i2AZFE..ACA33,38..LHD..4FC200808-201212

sub19000-28D01

main19000-31F80i2GRFE..GSA33200708-201212

main19000-37362i3ZRFAE..ZSA3#201109-201212

sub19000-37364

main19000-37380i3ZRFAE..ZSA3#..ATYPE200812-201108

sub19000-37362
