Toyota RAV4 — PACKAGE TRAY PANEL

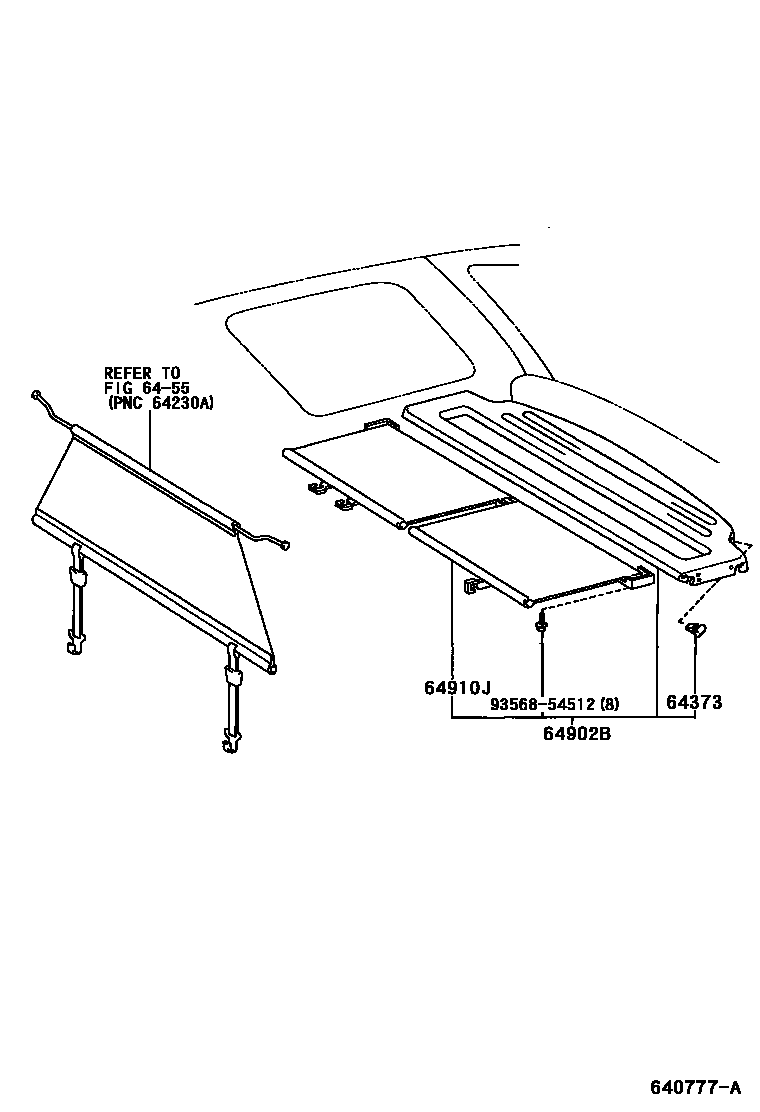

Parts diagram

64373STOPPER, PACKAGE TRAY TRIM

main64373-42020-B0×2i200008-200307

BLUE GRAY,TRIM1#

main64373-42020-B1×2i200402-200511

DK.GRAY,TRIM1#

main64373-42020-E0×2i200008-200307

FAWN,TRIM4#

6455

64902BCOVER SUB-ASSY, TONNEAU

main64902-42020-B0i200008-200010

BLUE GRAY,TRIM1#

main64902-42020-B1i200010-200307

BLUE GRAY,TRIM1#

main64902-42020-B2i200307-200402

DARK GRAY,TRIM1#

main64902-42020-E0i200008-200010

FAWN,TRIM4#

main64902-42020-E1i200307-200402

FAWN,TRIM4#

main64902-42021-B2i200402-200511

DARK GRAY,TRIM1#

main64902-42021-E1i200402-200511

FAWN,TRIM4#

64910JCOVER ASSY, TONNEAU

main64910-42010-B1i200008-200307

BLUE GRAY,TRIM1#

main64910-42010-B2i200402-200408

DK.GRAY,TRIM1#

main64910-42010-E1i200307-200401

FAWN,TRIM4#

main64910-42011-B2i200409-200511

DK.GRAY,TRIM1#

main64910-42011-E1i200409-200511

FAWN,TRIM4#

9356854512

main93568-54512

5 parts on this diagram · 1 diagram in section
