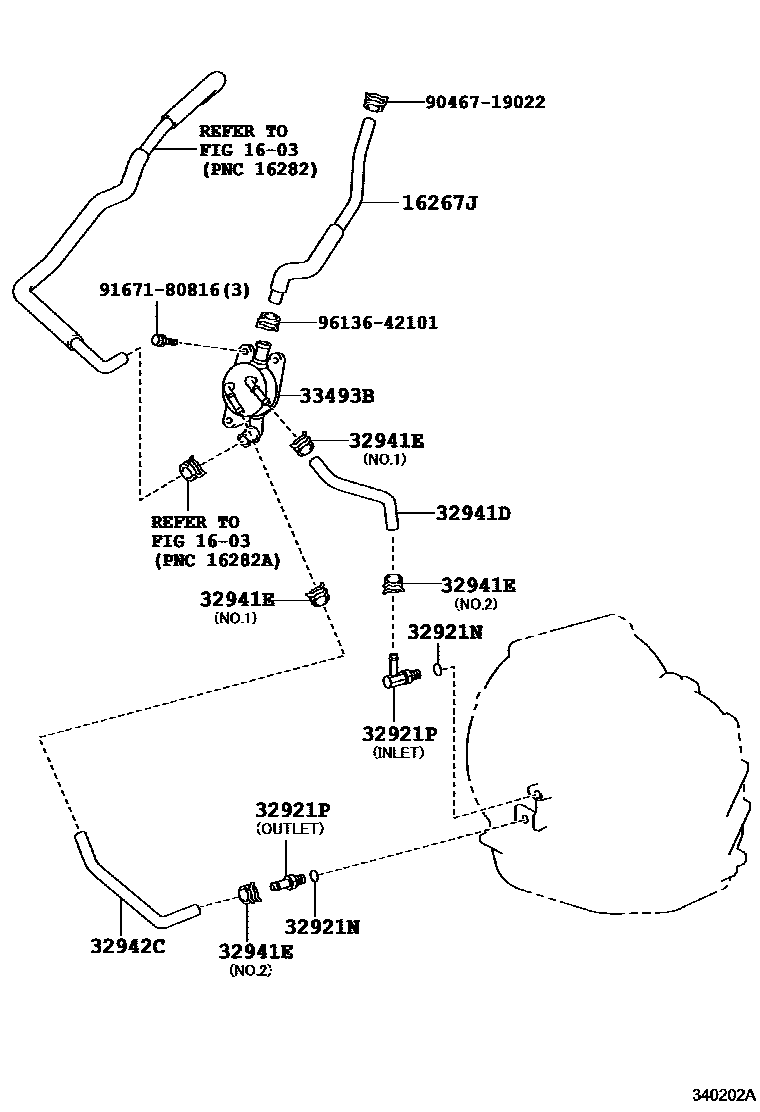

Toyota RAV4 — OIL COOLER & TUBE(CVT)

1603

16267JHOSE, WATER BY-PASS, NO.3

main16267-37040i3ZRFAE..ZSA30..CVFC200812-201212

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iZSA30..CVFC200812-201212

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iZSA30..CVFC200812-201212

OUTLET

sub90404-13010

main90407-13009iZSA30..CVFC200812-201212

INLET

sub90407-13010

32941DHOSE, OIL COOLER INLET

main32941-42100iZSA30..CVFC200812-201212

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004iZSA30..CVFC200812-201212

NO.1

main90467-16022iZSA30..CVFC200812-201212

NO.2

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-42090iZSA30..CVFC200812-201212

33493BCOOLER, OIL

main33493-42070iZSA30..CVFC200812-201212

9046719022

main90467-19022

9167180816

main91671-80816

9613642101

main96136-42101

11 parts on this diagram · 1 diagram in section
