Toyota RAV4 — MIRROR

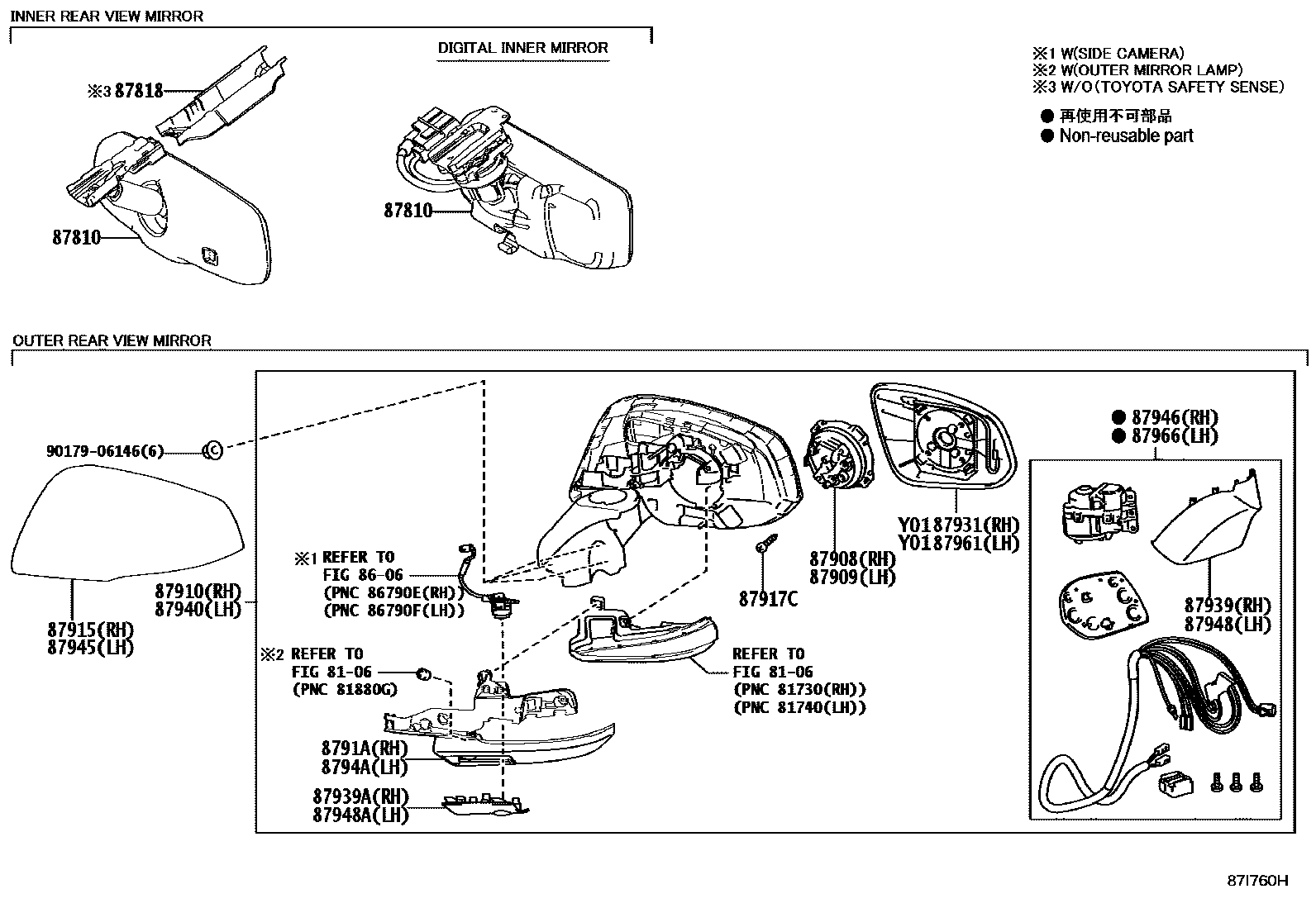

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
main87840-0W140supersedes 87810-0WZ20i202210-202310
main87810-0WZ20i202006-202112
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE& *ACRC & *LDA; ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE& *ACRC & *LDA & *SLC; ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&REAR SIDE GLASS-DARK(GRAY)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE & *ACRC & *LDA; ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&REAR SIDE GLASS-DARK(GRAY)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE & *ACRC & *LDA & *SLC; ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&REAR SIDE GLASS-UV-CUT(GREEN)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE & *ACRC & *LDA; ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(RADAR CRUISE CONTROL)&REAR SIDE GLASS-UV-CUT(GREEN)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&STEERING SWITCH-AUDIO & VOICE & *ACRC & *LDA & *SLC
main87840-0W130i202112-202210
ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO &VOICE & CRUISE CONTROL; ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO &VOICE & CRUISE CONTROL & *SLC
87818COVER, INNER RR VIEW MIRROR
main87818-76010i202006-202112
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-42M50i202006-202209
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87908-42M50i202006-202209
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-42F30supersedes 87910-42M80i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87910-42F31i202101-202112
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87910-42F40supersedes 87910-42M30i202006-202101
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42F60supersedes 87910-42M60i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87910-42F61i202101-202112
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87910-42F70i202006-202101
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42F80supersedes 87910-42M50i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87910-42F81supersedes 87910-42M50i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87910-42G00supersedes 87910-42M30i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87910-42G01supersedes 87910-42M30i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87910-42K60i202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42K61i202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42K70i202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42K71i202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L00i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L10i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L30supersedes 87910-42M80i202210-202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L31supersedes 87910-42M30i202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L40supersedes 87910-42M60i202210-202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L41supersedes 87910-42M60i202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42M30supersedes 87910-42M80i202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87910-42M50i202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87910-42M60supersedes 87910-42M50i202310
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42M80i202310
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87915COVER, OUTER MIRROR, RH
main87915-42200-A0i202310
SUPER WHITE 2,040
main87915-42200-A1i202006-202210
WHITE PEARL CS.,070
main87915-42200-A2i202310
PLATINUM WHITE PEARL MC.,089
main87915-42200-B0i202006-202210
SILVER ME.,1D6
main87915-42200-B1i202310
GRAY ME.,1G3
main87915-42200-C1i202310
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
main87915-42200-J1i202006-202210
DK. BLUE MC.,8X8
main87915-42220-D1i202210-202310
EMOTIONAL RED 2,3U5
87917CSCREW, OUTER MIRROR
main87917-15010×12i202310
8791ACOVER, OUTER MIRROR, RH NO.2
main8791B-42E40supersedes 8791B-42E50i202006-202210
CLEARANCE & BACK SONAR-WITH
main8791B-42E50supersedes 8791B-42E40i202006-202210
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87931OUTER MIRROR, RH
main87931-42F30supersedes 87931-42G00i202210-202310
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87931-42F50supersedes 87931-42F60i202006-202210
CLEARANCE & BACK SONAR-WITH
main87931-42F60supersedes 87931-42F50i202310
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87931-42G00supersedes 87931-42F30i202210-202310
CLEARANCE & BACK SONAR-WITH
87939COVER, OUTER MIRROR HOLE, RH
main87939-42E30i202210-202310
main87939-42F50i202210-202310
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-42E50i202310
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87939-42E60i202006-202210
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87939-42L20i202210-202310
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-42F00supersedes 87940-42M70i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87940-42F01supersedes 87940-42M70i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87940-42F10supersedes 87940-42M70i202006-202101
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42F30supersedes 87940-42M80i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
main87940-42F31supersedes 87940-42M80i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87940-42F40i202006-202101
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42F70supersedes 87940-42M20i202006-202101
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87940-42F71supersedes 87940-42M20i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87940-42F80supersedes 87940-42M40i202006-202012
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87940-42F81supersedes 87940-42M40i202101-202204
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main87940-42K50i202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42K51i202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42K60i202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42K61i202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42K90i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L00i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L20supersedes 87940-42M20i202210-202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L21supersedes 87940-42M20i202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L30supersedes 87940-42M40i202210-202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L31supersedes 87940-42M40i202310
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42M20supersedes 87940-42M70i202204-202210
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87940-42M40supersedes 87940-42M80i202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87940-42M70supersedes 87940-42M20i202210-202310
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42M80i202210-202310
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87945COVER, OUTER MIRROR, LH
main87945-42200-A0i202210-202310
SUPER WHITE 2,040
main87945-42200-A1i202006-202210
WHITE PEARL CS.,070
main87945-42200-A2i202310
PLATINUM WHITE PEARL MC.,089
main87945-42200-B0i202006-202210
SILVER ME.,1D6
main87945-42200-B1i202006-202210
GRAY ME.,1G3
main87945-42200-C1i202310
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
main87945-42200-J1i202310
DK. BLUE MC.,8X8
main87945-42220-D1i202006-202210
EMOTIONAL RED 2,3U5
87946RETRACTOR, OUTER MIRROR, RH
main87946-42F00i202210-202310
CLEARANCE & BACK SONAR-WITH
main87946-42F80i202006-202210
CLEARANCE & BACK SONAR-WITH
87948COVER, OUTER MIRROR HOLE, LH
main87948-42E00i202006-202210
main87948-42F20i202006-202210
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-42E20i202006-202210
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main87948-42E30i202008-202210
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87948-42L10i202310
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
8794ACOVER, OUTER MIRROR, LH NO.2
main8794B-42E10supersedes 8794B-42E20i202006-202210
CLEARANCE & BACK SONAR-WITH
main8794B-42E20supersedes 8794B-42E10i202006-202112
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA); CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87961MIRROR OUTER, LH
main87961-42E90supersedes 87961-42F00i202210-202310
CLEARANCE & BACK SONAR-WITH
main87961-42F00supersedes 87961-42E90i202006-202210
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87961-42F30supersedes 87961-42F80i202310
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87961-42F80supersedes 87961-42F30i202210-202310
CLEARANCE & BACK SONAR-WITH
87966RETRACTOR, OUTER MIRROR, LH
main87966-42E70i202006-202210
CLEARANCE & BACK SONAR-WITH
main87966-42F80i202006-202210
CLEARANCE & BACK SONAR-WITH
9017906146
main90179-06146

22 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4

This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota RAV4. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, ACTUATOR ASSY, OUTER MIRROR, RH.
