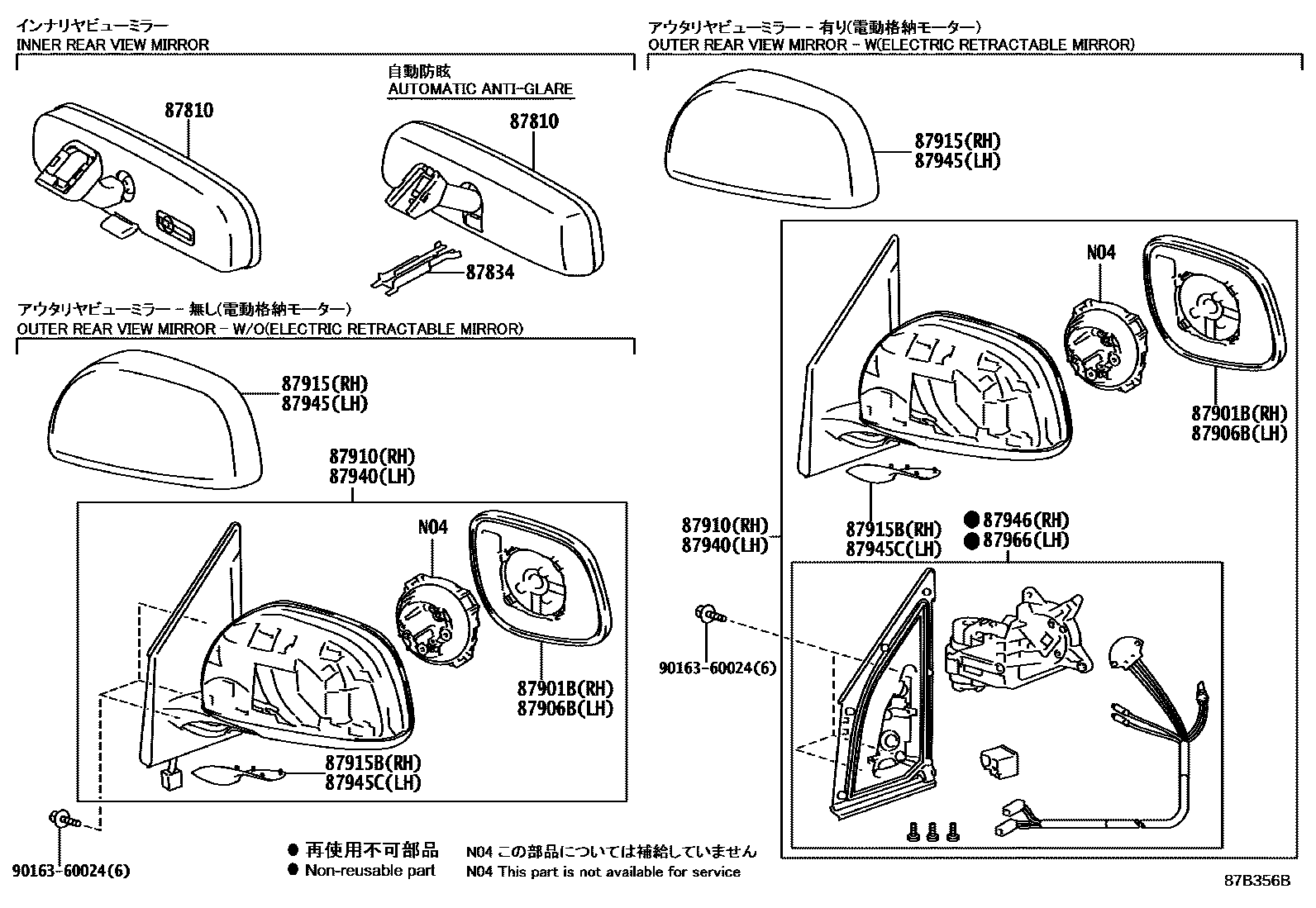

Toyota RAV4 — MIRROR

0001 1 0003 1 0005 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-05042iACA30,33,ALA3#,ZSA3#..G..EUR200812-201212

main87810-52040iACA3#,ALA30200511-200612

sub87810-52041

main87810-52041iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200701-200812

main87810-52041iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,GCC,GEN200808-201212

TYPE A

main87810-AA011iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,GCC,GEN201111-201212

TYPE B

main87810-AA011iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,GCC,GEN201111-201212

INSIDE REAR VIEW MIRROR-DAY&NIGHT(MECHANICAL TYPE),TYPE B

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-AC010iACA30,33,ALA3#,ZSA3#..G..EUR200812-201212

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-42840iACA30,ALA30..RHD..G200511-200812

main87931-42850iACA30,ALA30..RHD..X200511-200812

main87931-42890iACA33,38..G..GEN;ACA30,ALA30..LHD..X200511-200812

main87931-42A00iACA30,33,38,ALA3#,ZSA3#..G..(EUR,GEN)200808-201212

main87931-42A00iACA33..G..GCC200511-200812

CHINA SPEC

main87931-42A00iACA33..G..GCC200511-200812

BEIJING SPEC

main87931-42A10iACA33..GCC200511-200812

main87931-42A20iACA33,38..X..GEN200511-200808

main87931-42A80iACA33,38..X..GEN;ACA33,38,GSA33..ARL200808-201212

main87931-42B30iACA33,38..GCC200808-201212

main87931-52750iACA33,GSA33..ARL200511-200808

main87931-B4120iACA30,ALA3#,ZSA3#..X200812-201212

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-42780iACA33..G..GCC200511-200812

BEIJING SPEC

main87961-42780iACA30,31,ALA30..LHD..G200511-200812

CHINA SPEC

main87961-42790iACA33,38..G..GEN;ACA30,ALA30..LHD..X200511-200812

main87961-42830iACA30,ALA30..RHD..X200511-200812

main87961-42840iACA30,ALA30..RHD..G200511-201212

main87961-42850iACA33..GCC200511-200812

main87961-42A50iACA33,38..X..GEN;ACA33,38,GSA33..ARL200808-201212

main87961-42B00iACA33,38..GCC200808-201212

main87961-52730iACA33,38..X..GEN200511-200808

main87961-82800iACA33,GSA33..ARL200511-200808

main87961-B4120iACA30,ALA3#,ZSA3#..X200812-201212

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42840iACA30,ALA30..RHD..G200511-200812

NO PAINT REQ.

main87910-42850iACA30,ALA30..RHD..X200511-200812

NO PAINT REQ.

main87910-42860iACA33,GSA33..ARL200511-200808

NO PAINT REQ.

main87910-42890iACA33,38..G..GEN;ACA30,ALA30..LHD..X200511-200812

NO PAINT REQ.

main87910-42A00iACA33..G..GCC200511-200609

NO PAINT REQ.,CHINA SPEC

sub87910-42A01

main87910-42A00iACA33..G..GCC200511-200609

NO PAINT REQ.,BEIJING SPEC

sub87910-42A01

main87910-42A00iACA33..G..GCC200511-200609

NO PAINT REQ.

sub87910-42A01

main87910-42A01iACA30,31,ALA30..LHD..G200610-200812

NO PAINT REQ.

main87910-42A01iACA30,31,ALA30..LHD..G200610-200812

NO PAINT REQ.,CHINA SPEC

main87910-42A01iACA30,31,ALA30..LHD..G200610-200812

NO PAINT REQ.,BEIJING SPEC

main87910-42A10iACA33..GCC200511-200812

NO PAINT REQ.

main87910-42A20iACA33,38..X..GEN200511-200808

NO PAINT REQ.

main87910-42A60iACA30,ALA3#,ZSA3#..RHD..G200812-201212

NO PAINT REQ.

main87910-42A70iACA30,ALA3#,ZSA3#..RHD..X200812-201212

NO PAINT REQ.

main87910-42A80iACA33,38,GSA33..ARL200808-201212

NO PAINT REQ.

main87910-42A90iACA33,38..X..GEN200808-201212

NO PAINT REQ.

main87910-42B10iACA30,ALA3#,ZSA3#..LHD..X200812-201212

NO PAINT REQ.

main87910-42B20iACA30,33,38,ALA3#,ZSA3#..LHD..G..(EUR,GEN)200808-201212

NO PAINT REQ.

main87910-42B30iACA33,38..GCC200808-201212

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-42031-A0iACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC200511-200812

SUPER WHITE 2,040

main87915-42031-A1iACA33,38,GSA33..G200511-200812

WHITE PEARL CS.,070

main87915-42031-B0iACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

DK.GRAY MC.,1E0

main87915-42031-B1iACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC200511-200812

SILVER ME.,1F7

main87915-42031-C0iACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

BLACK,202

main87915-42031-D0iACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN)200511-200812

RED M.M.,3R3

main87915-42031-E0iACA33..G..GCC200511-200812

BEIGE ME.,4R4

main87915-42031-G0iGSA33;ACA30,ALA30..G200511-200812

DK.GREEN MC.,6T3

main87915-42031-G1iACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN)200511-200812

LT.GREEN ME.,6T6

main87915-42031-J0iACA33..G..GCC200511-200812

GRAYISH BLUE ME.,8R3

main87915-42031-J1iACA30,31,ALA30;ACA33,38..G..GEN200511-200812

DK.BLUE MC.,8S6

main87915-42041iACA33,38..X..GEN200511-200808

NO PAINT REQ.

main87915-42060-A0iACA30,33,ALA3#,ZSA3#..EUR;ACA33,38,GSA33..X..(ARL,GCC)200808-201212

SUPER WHITE 2,040

main87915-42060-A1iACA33,GSA33..G;ACA33..5F..GCC;ACA38..ARL,GCC;ALA3#,ZSA3#..G..BTYPE;ACA33..4FC..X..(ARL,GCC);ACA30,38,ALA3#,ZSA3#..LHD..G..(EUR,GEN)..ATYPE200808-201212

WHITE PEARL CS.,070

main87915-42060-B0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

SILVER ME.,1F7

main87915-42060-B1iACA33,38..G..GEN200808-201212

GRAY ME.,1G3

main87915-42060-B2iACA33,38,GSA33..ARL,GCC201002-201212

DK. STEEL MC.,1H2

main87915-42060-C0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

BLACK,202

main87915-42060-D0iACA30,ALA3#,ZSA3#..RHD200808-201212

RED M.M.,3R3

main87915-42060-D1iACA30,33,ALA3#,ZSA3#..EUR201002-201008

DK. RED M.M.,3Q3

main87915-42060-E0iACA30,ALA30..RHD..X..ATYPE200808-201212

BRONZE M.M.,4T3

main87915-42060-E1iACA33..G..GEN;ALA3#,ZSA3#..X..BTYPE;ACA33,38,GSA33..ARL,EUR,GCC;ACA30,ALA3#,ZSA3#..LHD..X..ATYPE;ACA30,38,ALA3#,ZSA3#..G..(EUR,GEN)200808-201212

BEIGE ME.,4T8

main87915-42060-G0iACA33,38..G..GEN;ALA30..(DCRE,DCRL)..ATYPE;ACA30,ALA30..LHD..(DCR,HTWC)..ATYPE;ACA33,38,ALA35,GSA33,ZSA3#..(ARL,EUR,GCC)..ATYPE200808-201008

DK.GREEN MC.,6T3

main87915-42060-G0iACA33,38..4FC..X..GEN200808-201008

TAIWAN SPEC,DK.GREEN MC.,6T3

main87915-42060-J0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

GRAYISH BLUE ME.,8R3

main87915-42060-K0iACA30,ALA3#,ZSA3#..G200812-201002

DK.VIOLET M.M.,9AF

main87915-42070iACA33,38..X..GEN200808-201212

NO PAINT REQ.

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-42080iACA33,GSA33..ARL200511-201212

main87915-42090iACA33..G..GCC;ACA30,31,ALA30..LHD200511-201212

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42780iACA30,ALA30..RHD..G200511-200812

NO PAINT REQ.

main87940-42790iACA30,ALA30..RHD..X200511-200812

NO PAINT REQ.

main87940-42800iACA33,GSA33..ARL200511-200808

NO PAINT REQ.

main87940-42830iACA33,38..G..GEN;ACA30,ALA30..LHD..X200511-200812

NO PAINT REQ.

main87940-42840iACA33..G..GCC200511-200609

NO PAINT REQ.,CHINA SPEC

sub87940-42841

main87940-42840iACA33..G..GCC200511-200609

NO PAINT REQ.,BEIJING SPEC

sub87940-42841

main87940-42840iACA33..G..GCC200511-200609

NO PAINT REQ.

sub87940-42841

main87940-42841iACA33..G..GCC200610-200812

NO PAINT REQ.,CHINA SPEC

main87940-42841iACA30,31,ALA30..LHD..G200610-200812

NO PAINT REQ.

main87940-42841iACA30,31,ALA30..LHD..G200610-200812

NO PAINT REQ.,BEIJING SPEC

main87940-42850iACA33..GCC200511-200812

NO PAINT REQ.

main87940-42860iACA33,38..X..GEN200511-200808

NO PAINT REQ.

main87940-42A30iACA30,ALA3#,ZSA3#..RHD..G200812-201212

NO PAINT REQ.

main87940-42A40iACA30,ALA3#,ZSA3#..RHD..X200812-201212

NO PAINT REQ.

main87940-42A50iACA33,38,GSA33..ARL200808-201212

NO PAINT REQ.

main87940-42A60iACA33,38..X..GEN200808-201212

NO PAINT REQ.

main87940-42A80iACA30,ALA3#,ZSA3#..LHD..X200812-201212

NO PAINT REQ.

main87940-42A90iACA30,33,38,ALA3#,ZSA3#..LHD..G..(EUR,GEN)200808-201212

NO PAINT REQ.

main87940-42B00iACA33,38..GCC200808-201212

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-42031-A0iACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC200511-200812

SUPER WHITE 2,040

main87945-42031-A1iACA33,38,GSA33..G200511-200812

WHITE PEARL CS.,070

main87945-42031-B0iACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

DK.GRAY MC.,1E0

main87945-42031-B1iACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC200511-200812

SILVER ME.,1F7

main87945-42031-C0iACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

BLACK,202

main87945-42031-D0iACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN)200511-200812

RED M.M.,3R3

main87945-42031-E0iACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN)200511-200812

BEIGE ME.,4R4

main87945-42031-G0iGSA33;ACA30,ALA30..G200511-200812

DK.GREEN MC.,6T3

main87945-42031-G1iACA33..G..GCC200511-200812

LT.GREEN ME.,6T6

main87945-42031-J0iACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

GRAYISH BLUE ME.,8R3

main87945-42031-J1iACA33..ARL,GCC200511-200812

DK.BLUE MC.,8S6

main87945-42041iACA33,38..X..GEN200511-200808

NO PAINT REQ.

main87945-42060-A0iACA30,33,ALA3#,ZSA3#..EUR;ACA33,38,GSA33..X..(ARL,GCC)200808-201212

SUPER WHITE 2,040

main87945-42060-A1iACA30,ALA30..RHD..G..ATYPE200808-201212

WHITE PEARL CS.,070

main87945-42060-B0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

SILVER ME.,1F7

main87945-42060-B1iACA33,38..G..GEN200808-201212

GRAY ME.,1G3

main87945-42060-B2iACA33,38,GSA33..ARL,GCC201002-201212

DK. STEEL MC.,1H2

main87945-42060-C0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

BLACK,202

main87945-42060-D0iACA30,ALA3#,ZSA3#..RHD200808-201212

RED M.M.,3R3

main87945-42060-D1iACA30,33,ALA3#,ZSA3#..EUR201002-201008

DK. RED M.M.,3Q3

main87945-42060-E0iACA30,ALA30..RHD..X..ATYPE200808-201212

BRONZE M.M.,4T3

main87945-42060-E1iACA33..G..GEN;ALA3#,ZSA3#..X..BTYPE;ACA33,38,GSA33..ARL,EUR,GCC;ACA30,ALA3#,ZSA3#..LHD..X..ATYPE;ACA30,38,ALA3#,ZSA3#..G..(EUR,GEN)200808-201212

BEIGE ME.,4T8

main87945-42060-G0iACA33,38..4FC..X..GEN200808-201008

DK.GREEN MC.,6T3

main87945-42060-G0iACA33,38..G..GEN;ALA30..(DCRE,DCRL)..ATYPE;ACA30,ALA30..LHD..(DCR,HTWC)..ATYPE;ACA33,38,ALA35,GSA33,ZSA3#..(ARL,EUR,GCC)..ATYPE200808-201008

TAIWAN SPEC,DK.GREEN MC.,6T3

main87945-42060-J0iACA33,38..G..GEN;ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC200808-201212

GRAYISH BLUE ME.,8R3

main87945-42060-K0iACA30,ALA3#,ZSA3#..G200812-201002

DK.VIOLET M.M.,9AF

main87945-42070iACA33,38..X..GEN200808-201212

NO PAINT REQ.

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-42080iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200511-201212

main87945-42090iACA30,33,38,ALA3#,ZSA3#..LHD200511-201212

87946RETRACTOR, OUTER MIRROR, RH

main87946-42840iACA33..G..GCC200511-200812

CHINA SPEC

main87946-42840iACA30,31,ALA30..G200511-200812

BEIJING SPEC

main87946-42A60iACA30,33,38,ALA3#,ZSA3#..G..(EUR,GEN)200808-201212

87966RETRACTOR, OUTER MIRROR, LH

main87966-42780iACA30,31,ALA30..G200511-200812

CHINA SPEC

main87966-42780iACA30,31,ALA30..G200511-200812

BEIJING SPEC

main87966-42A20iACA30,33,38,ALA3#,ZSA3#..G..(EUR,GEN)200808-201212

9016360024

main90163-60024

13 parts on this diagram · 3 diagrams in section
