Toyota RAV4 — METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY 0003 1HEAD-UP DISPLAY

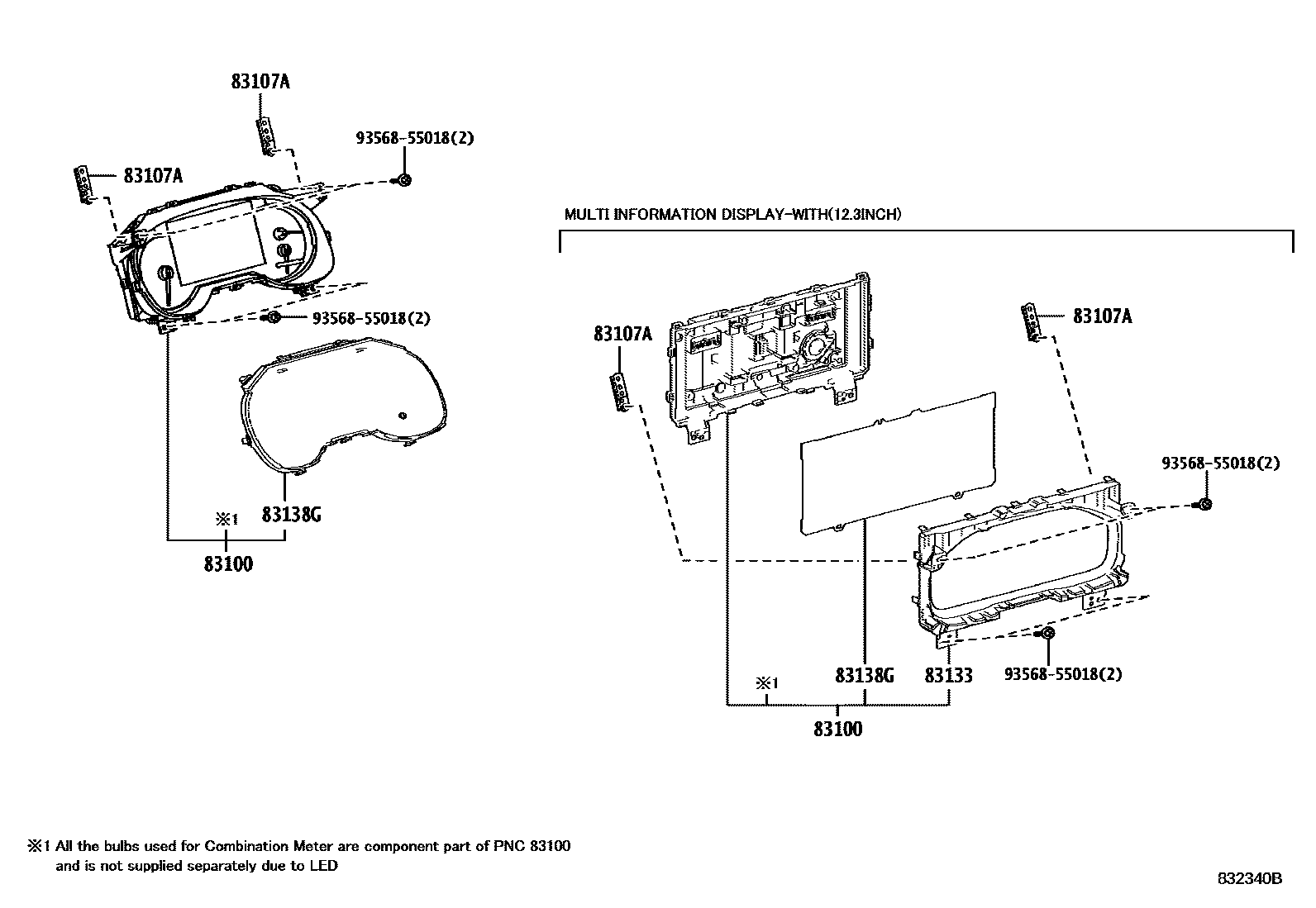

83100METER ASSY, COMBINATION

main83800-42N90iAXAP54202006-202112

DENSO,*614

main83800-4AA20iAXAP54202112-202210

DENSO,*614

main83800-4AE30iAXAP54..M202210-202211

DENSO,*614

main83800-4AE31iAXAP54..M202212-202304

DENSO,*614

main83800-4AE32iAXAP54..M202305-202310

DENSO,*614

sub83800-4AE33

main83800-4AL10iAXAP54..M202310-202402

DENSO,*614

main83800-4AL11iAXAP54..M202402-202409

DENSO,*614

main83800-4AL12supersedes 83800-4AK61iAXAP54..M202410

DENSO,*614

main83800-42P00iAXAP54..RHD202006-202112

DENSO,ENGLAND SPEC,*614

main83800-4AA30iAXAP54..RHD202112-202210

DENSO,ENGLAND SPEC,*614

main83800-4AE40iAXAP54..RHD..M202210-202211

DENSO,ENGLAND SPEC,*614

main83800-4AE41iAXAP54..RHD..M202212-202310

DENSO,ENGLAND SPEC,*614

main83800-4AE50iAXAP54..RHD..G202210-202211

DENSO,ENGLAND SPEC,*614

main83800-4AE51iAXAP54..RHD..G202212-202304

DENSO,ENGLAND SPEC,*614

main83800-4AE52iAXAP54..RHD..G202305-202310

DENSO,ENGLAND SPEC,*614

sub83800-4AE53

main83800-4AK70iAXAP54..RHD..M202310-202402

DENSO,ENGLAND SPEC,*614

main83800-4AK71iAXAP54..RHD..M202402

DENSO,ENGLAND SPEC,*614

main83800-4AL20iAXAP54..RHD..G202310-202402

DENSO,ENGLAND SPEC,*614

main83800-4AL21iAXAP54..RHD..G202402-202409

DENSO,ENGLAND SPEC,*614

main83800-4AL22iAXAP54..RHD..G202410

DENSO,ENGLAND SPEC,*614

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-42010×2iAXAP54202006-202210

83133PLATE, COMBINATION METER, NO.1

main83811-4AB40iAXAP54..M202310

MULTI INFORMATION DISPLAY-WITH(12.3INCH)

83138GGLASS, COMBINATION METER

main83852-42Y10iAXAP54202006-202210

main83852-4AB40supersedes 83852-42Y10iAXAP54..M202210-202309

MULTI INFORMATION DISPLAY-WITH(12.3INCH)

9356855018

main93568-55018

5 parts on this diagram · 3 diagrams in section
