Toyota RAV4 — METER

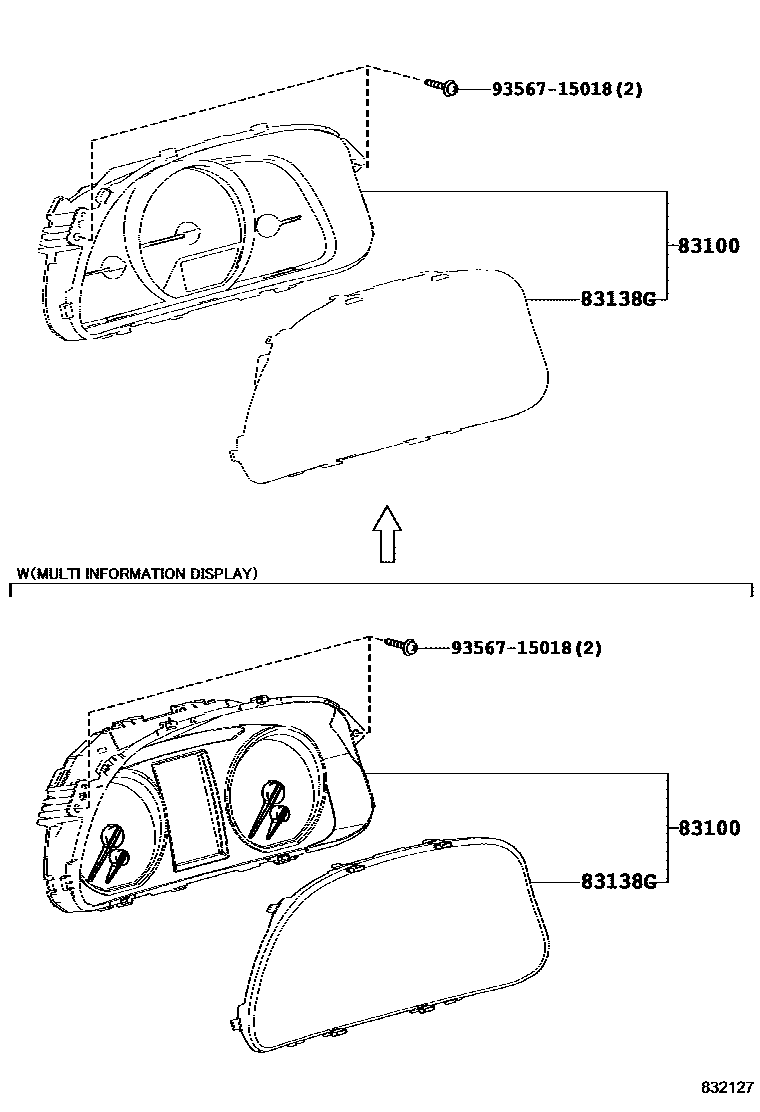

Parts diagram

83100METER ASSY, COMBINATION

main83800-0R310i201610

(L)

main83800-0R320i201610

(L)

main83800-0R330i201610

(L)

main83800-0R340i201610

(L)

main83800-42K20i201212-201307

main83800-42K21i201308-201409

main83800-42K22i201410-201504

main83800-42K23i201504-201510

main83800-42K30i201212-201307

SPEEDOMETER-KM/H

main83800-42K31i201308-201409

main83800-42K32i201410-201507

main83800-42K33i201508-201510

main83800-42K40i201212-201307

SPEEDOMETER-KM/H

main83800-42K41i201308-201510

SPEEDOMETER-KM/H

main83800-42K50i201212-201307

POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(2 BUTTON)&SEAT COVER MATERIAL-FABRIC

main83800-42K51i201308-201510

SPEEDOMETER-KM/H

main83800-42L00i201212-201307

main83800-42L01i201308-201409

main83800-42L02i201410-201504

main83800-42L03i201504-201510

main83800-42L10i201212-201307

main83800-42L11i201308-201409

main83800-42L12i201410-201507

main83800-42L13i201508-201510

main83800-42L20i201212-201307

main83800-42L21i201308-201510

main83800-42L30i201212-201307

main83800-42L31i201308-201510

main83800-42L60supersedes 83800-42L71i201212-201307

POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(2 BUTTON)&SEAT COVER MATERIAL-FABRIC

main83800-42L61i201308-201510

main83800-42R00i201510-201607

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&EXCEPT FOR WVTA&SINGAPOLE SPEC

main83800-42R10i201510-201607

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&EXCEPT FOR WVTA&HONG KONG,MACAO SPEC&SPEED WARNING-WITHOUT

main83800-42R30i201510-201602

main83800-42R31i201602-201608

main83800-42R40i201510-201602

main83800-42R41i201602-201608

main83800-42R60i201510-201607

EXCEPT FOR WVTA&HONG KONG,MACAO SPEC

main83800-42R80i201510-201607

main83800-42R90i201510-201607

main83800-42T50i201608-201708

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(GENERAL NAME PLATE)&EXCEPT FOR WVTA&HONG KONG,MACAO SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY P

main83800-42T60i201608-201708

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&EXCEPT FOR WVTA&SPEED WARNING-WITHOUT

main83800-42T80i201608-201810

main83800-42T90i201610

(J)

main83800-42U00i201608-201805

main83800-42U10i201608-201805

main83800-42U30i201608-201708

EXCEPT FOR WVTA&HONG KONG,MACAO SPEC

main83800-4A230i201708-201810

main83800-4A250i201708-201810

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(GENERAL NAME PLATE)&EXCEPT FOR WVTA&HONG KONG,MACAO SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY P

main83800-4A260i201802

DENSO,(J)

main83800-42K60i201212-201308

ENGLAND SPEC

main83800-42K61i201311-201504

ENGLAND SPEC

main83800-42K62i201308-201311

ENGLAND SPEC

main83800-42K63i201504-201510

ENGLAND SPEC

main83800-42K70i201212-201308

ENGLAND SPEC

main83800-42K71i201311-201507

ENGLAND SPEC

main83800-42K72i201308-201311

ENGLAND SPEC

main83800-42K73i201508-201510

ENGLAND SPEC

main83800-42K80i201212-201308

ENGLAND SPEC

main83800-42K81i201311-201510

ENGLAND SPEC

main83800-42K82i201308-201311

ENGLAND SPEC

main83800-42K90i201212-201308

ENGLAND SPEC&SPEEDOMETER-MILE(MAIN),KM/H HIGH

main83800-42K91i201311-201510

ENGLAND SPEC&SPEEDOMETER-MILE(MAIN),KM/H HIGH

main83800-42K92i201308-201311

ENGLAND SPEC&SPEEDOMETER-MILE(MAIN),KM/H HIGH

main83800-42L40i201212-201307

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42L41i201311-201510

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42L50i201212-201307

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42L51i201311-201510

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42M30i201305-201307

AUSTRALIA SPEC

main83800-42M31i201308-201311

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42M40i201305-201307

AUSTRALIA SPEC

main83800-42M41i201308-201311

AUSTRALIA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-42Q40i201510-201607

EXCEPT FOR WVTA

main83800-42R20i201510-201607

REGULATION COMFORMITY LABEL & NAME PLATE-W(*WVTA & ID PLATE)&UK,MALTA SPEC

main83800-42R50i201510-201602

UK,MALTA SPEC

main83800-42R51i201602-201608

UK,MALTA SPEC

main83800-42R70i201510-201607

UK,MALTA SPEC

main83800-42T40i201608-201708

EXCEPT FOR WVTA

main83800-42T70i201608-201810

REGULATION COMFORMITY LABEL & NAME PLATE-W(*WVTA & ID PLATE)&UK,MALTA SPEC

main83800-42U20i201608-201805

UK,MALTA SPEC

main83800-42U40i201608-201708

UK,MALTA SPEC

main83800-4A220i201708-201810

EXCEPT FOR WVTA

main83800-4A240i201708-201810

UK,MALTA SPEC

83138GGLASS, COMBINATION METER

main83852-0R310i201610

(L)

main83852-42K00i201212-201510

main83852-42M70i201510-201810

9356715018

main93567-15018

3 parts on this diagram · 1 diagram in section
