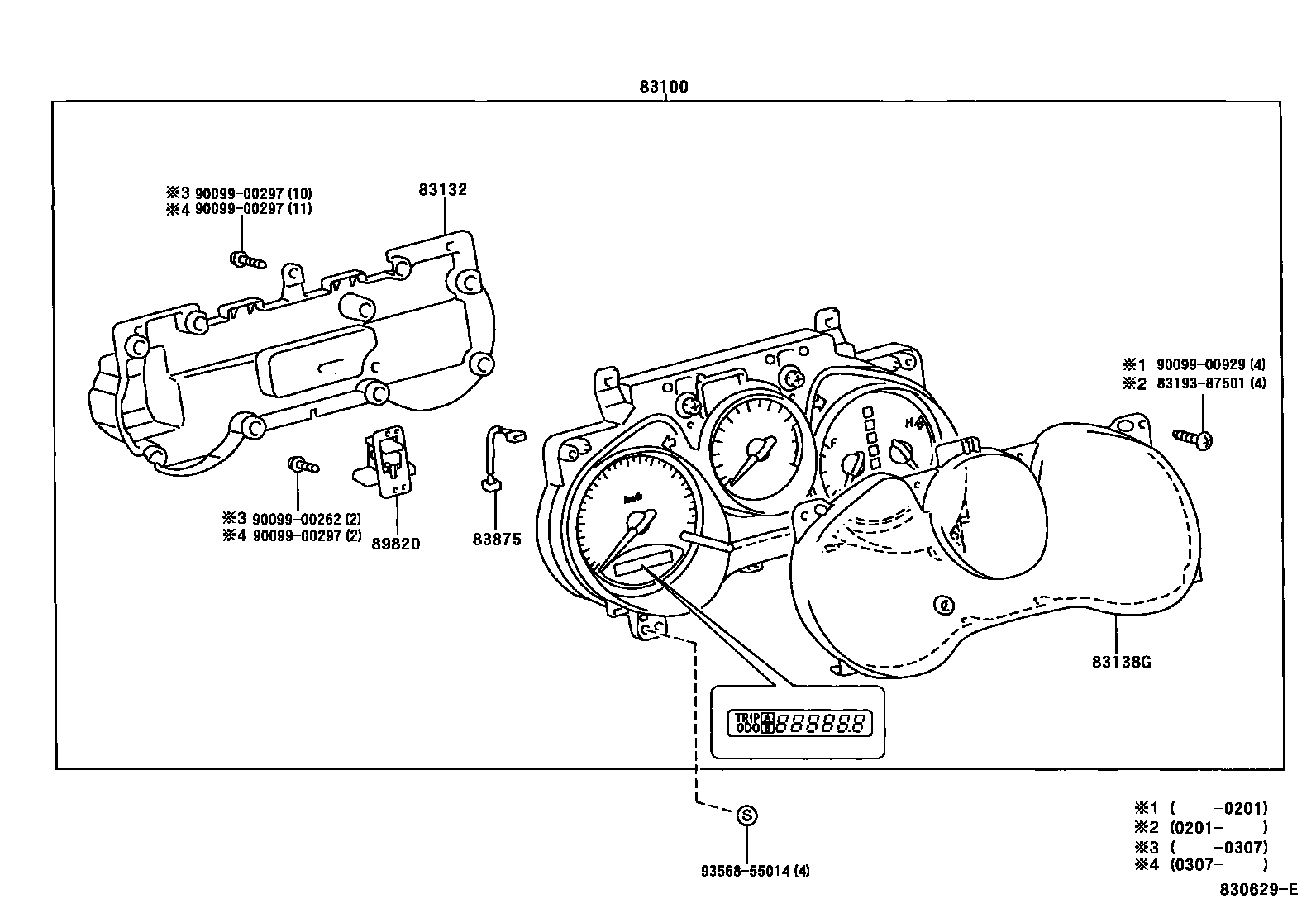

Toyota RAV4 — METER

83100METER ASSY, COMBINATION

main83800-42B00iACA2#..MTM..USA200307

W(TIRE WARNING INDICATOR)

main83800-42B10iACA2#..ATM..USA200307

W(TIRE WARNING INDICATOR)

main83800-42B20iACA23..MTM..CND200307

main83800-42B30iACA23..ATM..CND200307

main83800-42B80iACA23..MTM..CND200307

W(TIRE WARNING INDICATOR)

main83800-42B90iACA23..ATM..CND200307

W(TIRE WARNING INDICATOR)

main83800-42C00iACA28..ATM200307

MEXICO SPEC & W(TIRE WARNING INDICATOR)

main83800-42C10iACA28..ATM200307

MEXICO SPEC

main83800-4A030iACA2#..MTM..USA200008-200201

main83800-4A031iACA2#..MTM..USA200201-200307

main83800-4A040iACA2#..ATM..USA200008-200201

main83800-4A041iACA2#..ATM..USA200201-200307

main83800-4A050iACA21..MTM..CND200008-200201

main83800-4A051iACA21..MTM..CND200201-200307

main83800-4A060iACA21..ATM..CND200008-200201

main83800-4A061iACA21..ATM..CND200201-200307

83132CASE, COMBINATION METER

main83821-42720iACA2#200307

main83821-42760iACA2#200008-200307

83138GGLASS, COMBINATION METER

main83852-42760iACA2#200008-200307

83875WIRE, COMBINATION METER, NO.1

main83875-42760iACA2#200008-200307

89820SENSOR ASSY, INCLINATION

main89820-35010iACA2#200008-200307

8319387501

main83193-87501

9009900262

main90099-00262

9009900297

main90099-00297

9009900929

main90099-00929

9356855014

main93568-55014

10 parts on this diagram · 1 diagram in section
