Toyota RAV4 — METER

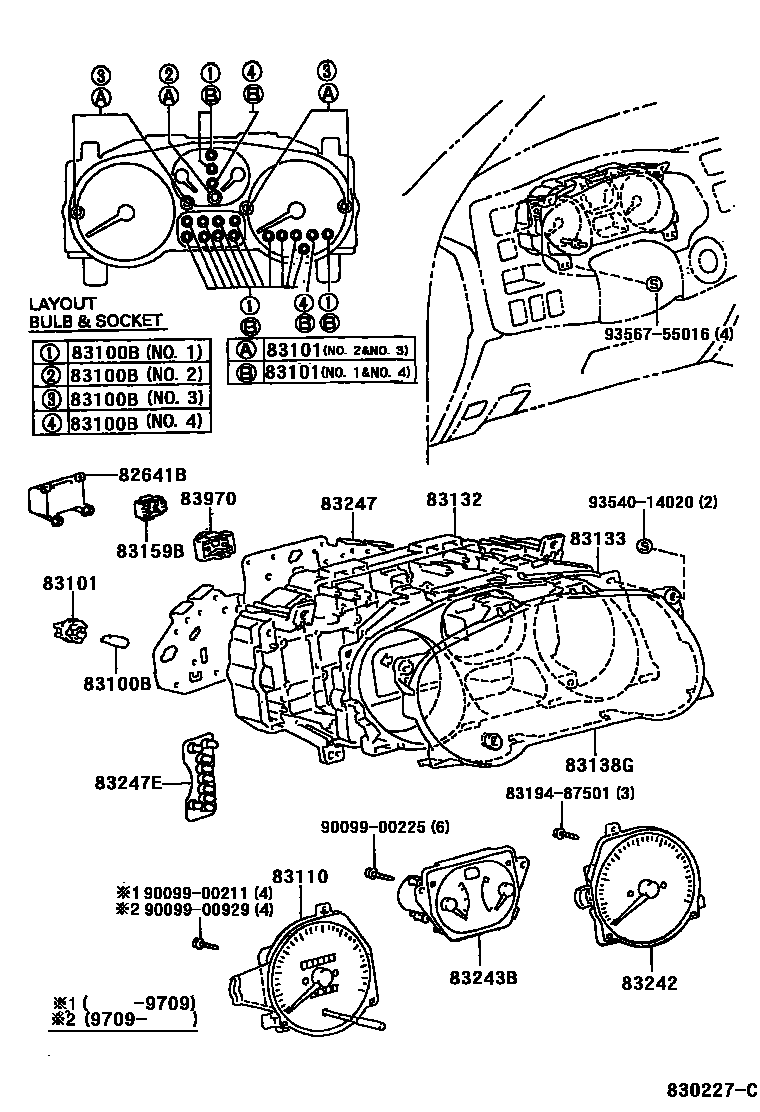

0001 1COMBINATION METER 0002 1SPEED SENSOR & CLOCK

82641BRELAY, INTEGRATION (FOR METER)

main83888-42510iSXA1#199709

83100BBULB, COMBINATION METER, NO.1

main83101-20080iSXA1#199802

12V 1.4W,W(SOCKET)

main83119-32010iSXA1#199511

14V 3.0W,NO.2

main83119-42010×4iSXA1#199511

14V 3.0W,W(CAP),NO.3

main90099-53009×2iSXA1#199709-199802

14V0.84W W/O(SOCKET),NO.4

main90981-11018×13iSXA1#..MTM199511-199709

12V 1.2W W/O SOCKET,NO.1

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×14iSXA10,11;SXA15,16..MTM199709

NO.1 & NO.4

main83101-32020×5iSXA1#199511

NO.2 & NO.3

83110SPEEDOMETER ASSY

main83220-42010iSXA1#199511-199709

MPH(MAIN) & KM/H

main83220-42020iSXA11,15;SXA16..ATM199608-199709

KM/H(MAIN) & MPH

main83220-42070iSXA1#199709

MPH(MAIN) & KM/H

main83220-42080iSXA16..ATM;SXA10,11,15199709

KM/H(MAIN) & MPH

83132CASE, COMBINATION METER

main83841-42010iSXA1#..MTM199511-199709

main83841-42020iSXA11,15,16..ATM199511-199709

main83841-42260iSXA11,15..MTM199608-199709

CANADA SPEC

main83841-42270iSXA11,15,16..ATM199608-199709

CANADA SPEC

main83841-42510iSXA1#199709

main83841-42570iSXA10,11,15..MTM199709

CANADA SPEC

main83841-42580iSXA1#..ATM199709

CANADA SPEC

83133PLATE, COMBINATION METER, NO.1

main83133-42010iSXA1#199511

83138GGLASS, COMBINATION METER

main83138-42010iSXA1#199511-199709

main83852-42360iSXA1#199709

83159BRELAY ASSY, METER

main83159-22170iSXA11,15;SXA16..ATM199608-199709

83242TACHOMETER ASSY, ENGINE

main83881-42010iSXA1#199511-199709

main83881-42260iSXA11,15;SXA16..ATM199608-199709

CANADA SPEC

main83881-42510iSXA1#199709-200008

main83881-42570iSXA16..ATM;SXA10,11,15199709-200008

KM/H+(MILE/H).CANADA SPEC OR KM/H+(MILE/H)

83243BGAUGE ASSY, COMBINATION

main83243-42030iSXA11,15;SXA16..ATM199608-199709

CANADA SPEC

sub83243-42010

main83882-42010iSXA1#199511-199709

main83882-42360iSXA1#..MTM199709

main83882-42400iSXA1#..ATM199709

main83882-42580iSXA1#..ATM199709

CANADA SPEC

83247PLATE, METER CIRCUIT

main83861-42010iSXA15,16;SXA10,11..MTM199511-199709

main83861-42020iSXA11..ATM199511-199709

main83861-42510iSXA1#..MTM199709

main83861-42520iSXA10,11..ATM199709

main83861-42540iSXA15,16..ATM199709

83247EPLATE, MATER CIRCUIT, NO.4

main83866-42400iSXA1#..ATM199709

main83866-42580iSXA1#..ATM199709

CANADA SPEC

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iSXA1#199511-199709

8319487501

main83194-87501

9009900211

main90099-00211

9009900225

main90099-00225

9009900929

main90099-00929

9354014020

main93540-14020

9356755016

main93567-55016

19 parts on this diagram · 2 diagrams in section
