Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

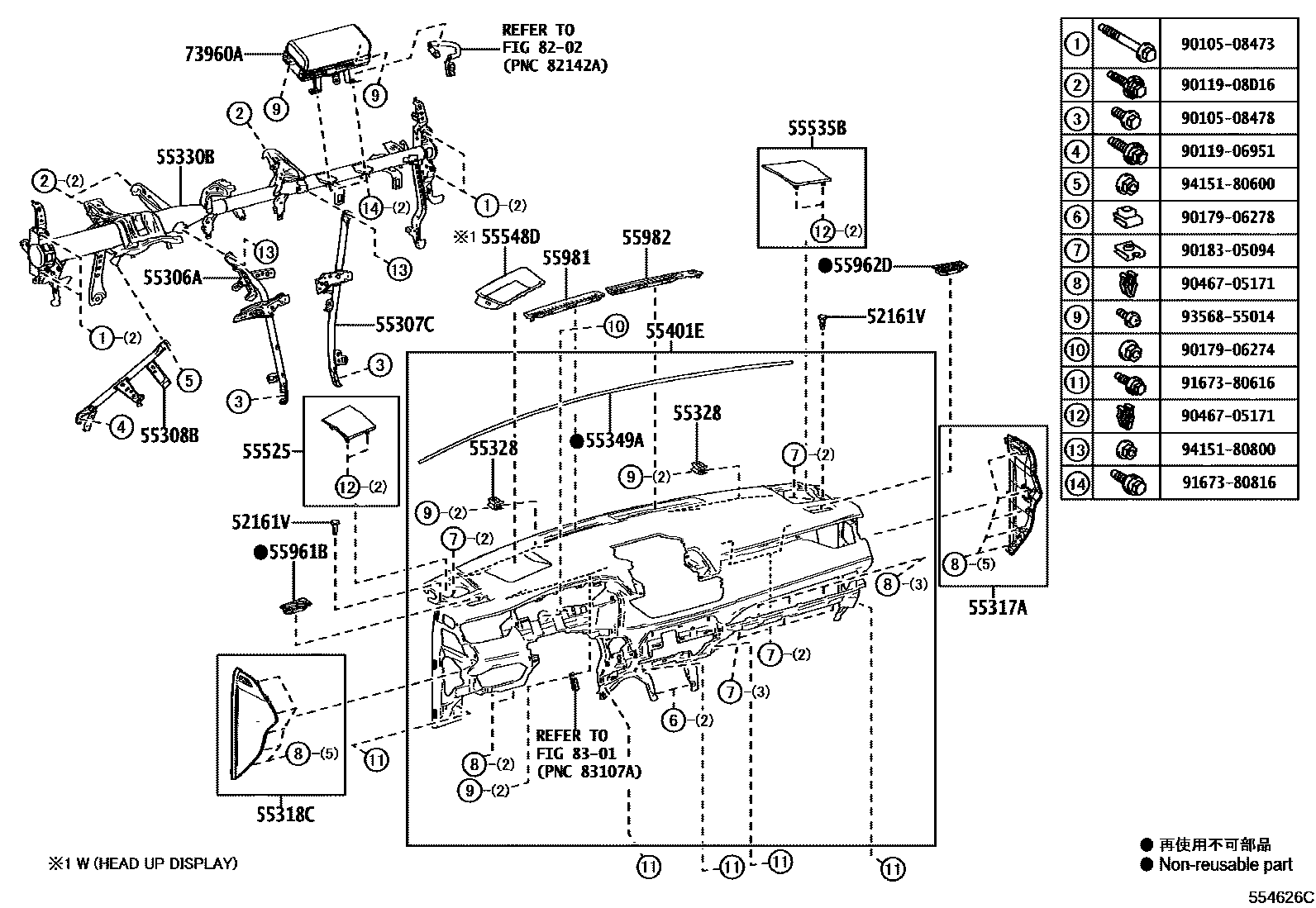

Parts diagram
52161VPIECE, INSTRUMENT PANEL
main52161-16010×2i202006-202210
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-42150i202210-202310
main55306-42160i202210-202310
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-42090i202006-202210
main55307-42100i202210-202310
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-42070i202006-202210
main55308-42080i202310
55317APANEL, INSTRUMENT SIDE, RH
main55317-42070-C0i202310
BLACK,TRIM2#
main55317-42080-C0i202006-202210
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
main55318-42030-C0i202210-202310
BLACK,TRIM2#
main55318-42040-C0i202210-202310
BLACK,TRIM2#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-60090×4i202310
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-42370supersedes 55330-42320i202310
HEAD-UP DISPLAY-WITH
main55330-42380supersedes 55330-42340i202310
HEAD-UP DISPLAY-WITH
55349ACUSHION, INSTRUMENT PANEL
main55349-42050i202006-202210
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-42100-C1supersedes 55401-42180-C0i202006-202101
HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM2#
main55401-42120-C1supersedes 55401-42190-C0i202006-202101
HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM2#
main55401-42200-C0supersedes 55401-42180-C0i202101-202210
HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM2#
main55401-42200-C2supersedes 55401-42180-C2i202310
HEAD-UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM20
main55401-42210-C0supersedes 55401-42190-C0i202210-202310
HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM2#; HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM20
main55401-42210-C2supersedes 55401-42190-C2i202310
HEAD-UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM20
55525COVER, SPEAKER HOLE, NO.1
main55525-42030-C0supersedes 55525-42040-C0i202006-202210
AUDIO-JBL & 9INCH DISPLAY T1 & DAB (EU),BLACK,TRIM2#; AUDIO-JBL & 9INCH DISPLAY T2 (EU),BLACK,TRIM2#; BLACK,TRIM2#
55535BCOVER, SPEAKER HOLE, NO.2
main55535-42030-C0supersedes 55535-42040-C0i202006-202210
AUDIO-JBL & 9INCH DISPLAY T1 & DAB (EU),BLACK,TRIM2#; AUDIO-JBL & 9INCH DISPLAY T2 (EU),BLACK,TRIM2#; BLACK,TRIM2#; UKRAINE SPEC&AUDIO-JBL & 9INCH DISPLAY T1 & DAB (EU),BLACK,TRIM2#; UKRAINE SPEC&AUDIO-JBL & 9INCH DISPLAY T2 (EU),BLACK,TRIM2#; UKRAINE SPEC,BLACK,TRIM2#
55548DCOVER, INSTRUMENT PANEL HOLE
main55548-42060i202310
HEAD-UP DISPLAY-WITH
main55548-42070i202210-202310
HEAD-UP DISPLAY-WITH
55961BNOZZLE, SIDE DEFROSTER, NO.1
main55961-42010-C0i202006-202210
BLACK,TRIM2#
55962DNOZZLE, SIDE DEFROSTER, NO.2
main55962-42010-C0i202210-202310
BLACK,TRIM2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-42030-C0i202006-202210
BLACK,TRIM2#
main55981-42040-C0i202310
BLACK,TRIM2#
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-42030-C0i202210-202310
BLACK,TRIM2#
main55982-42040-C0i202310
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-42110i202310
8202WIRING & CLAMP
→ Go to FIG 82-02
8301METER
→ Go to FIG 83-01
9010508473
main90105-08473
9010508478
main90105-08478
9011906951
main90119-06951
9011908D16
main90119-08D16
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
