Toyota RAV4 — INJECTION PUMP ASSEMBLY

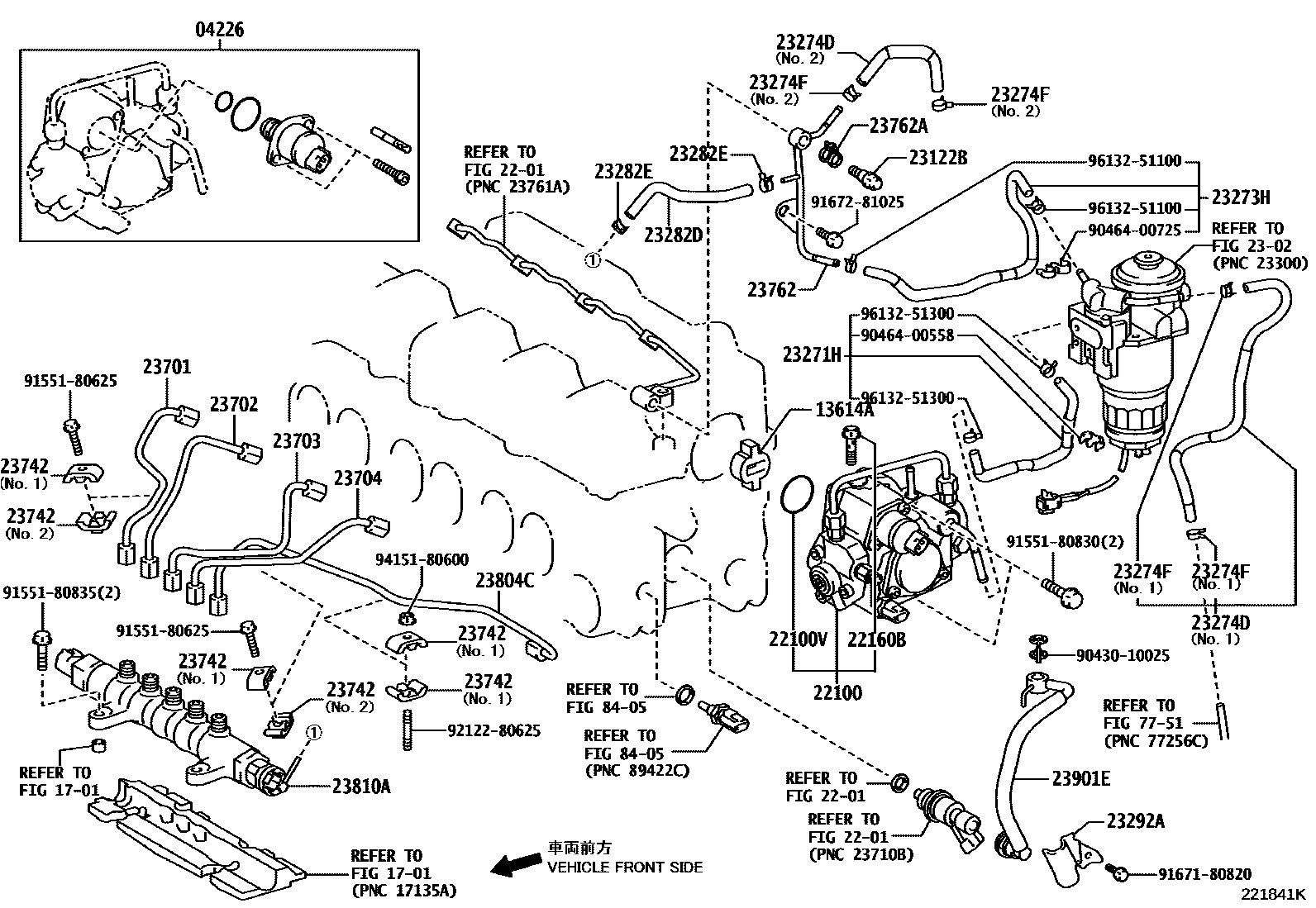

Parts diagram
04226VALVE KIT, SUCTION CONTROL
main04226-0L030i200511-200812
sub04226-26020
sub04226-26030
main04226-26010i200812-201212
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
main13614-26010i200511-201212
1701
2201
22100PUMP ASSY, INJECTION OR SUPPLY
main22100-0R010i200511-200710
sub22100-0R011
main22100-0R011i200710-200812
sub22100-0R070
main22100-0R020i200511-200710
sub22100-0R021
main22100-0R021i200710-200812
sub22100-0R050
main22100-0R050i200812-201212
sub22100-0R051
22100VRING, O(FOR INJECTION PUMP)
main22193-0R020i200511-201212
22160BSCREW
main22569-0R020i200511-201212
2302
23122BVALVE, CHECK
main23769-26020i200511-200812
main23769-26030i200812-201212
main2376A-26010i200812-201012
NO.2
sub2376A-26020
main2376A-26020i201012-201110
NO.2
sub2376A-26030
main2376A-26030i201110-201212
NO.2
23271HHOSE, FUEL, NO.1
main23271-26050i200511-200812
main23271-26180i200812-201212
23273HHOSE, FUEL, NO.2
main23273-26030i200511-200812
main23273-26060i200812-201212
23274DHOSE, FUEL, NO.3
main23274-26020i200511-200812
NO.2
main23274-26050i200511-200812
NO.1
main23274-26080i200812-201212
23274FCLIP(FOR FUEL HOSE NO.3)
main96132-51300i200511-200812
NO.1
main96135-51100i200812-201212
main96135-51100i200511-200812
NO.2
23282DHOSE, FUEL, NO.4
main23282-26030i200511-200812
main23282-26040i200511-200812
main23282-26070i200812-201212
23282ECLIP(FOR FUEL HOSE NO.4)
main90467-11076i200511-201212
23292APROTECTOR, FUEL HOSE
main23292-26030i200511-201212
23701PIPE SUB-ASSY, INJECTION, NO.1
main23701-0R030i200812-201212
(L)
main23701-26030i200511-200812
main23701-26040i200511-200803
sub23701-26050
main23701-26050i200812-201212
(J)
main23701-26050i200803-200812
23702PIPE SUB-ASSY, INJECTION, NO.2
main23702-0R030i200812-201212
(L)
main23702-26030i200511-200812
main23702-26040i200511-200803
sub23702-26050
main23702-26050i200803-200812
main23702-26050i200812-201212
(J)
23703PIPE SUB-ASSY, INJECTION, NO.3
main23703-0R030i200812-201212
(L)
main23703-26030i200511-200812
main23703-26040i200511-200803
sub23703-26050
main23703-26050i200803-200812
main23703-26050i200812-201212
(J)
23704PIPE SUB-ASSY, INJECTION, NO.4
main23704-0R030i200812-201212
(L)
main23704-26040i200511-200812
main23704-26050i200511-200803
sub23704-26060
main23704-26060i200803-200812
main23704-26060i200812-201212
(J)
23742CLAMP, INJECTION PIPE, NO.2
main23742-27010i200511-201212
NO.1
main23742-58020i200511-201212
NO.2
23762PIPE, NOZZLE LEAKAGE, NO.2
main23762-0R011i200511-200812
main23762-0R021i200511-200812
main23762-26021i200812-201212
23762AGASKET, NOZZLE LEAKAGE PIPE NO.2
main90430-10025i200511-200812
main90904-30012i200511-201212
23804CPIPE SUB-ASSY, FUEL INLET
main23804-0R020i200812-201212
(L)
main23804-26040i200511-200803
sub23804-26050
main23804-26050i200803-200812
main23804-26050i200812-201212
(J)
23810ARAIL ASSY, COMMON
main23810-0R010i200511-200812
sub23810-0R011
main23810-0R020i200511-200812
main23810-0R040i200812-201204
sub23810-0R041
main23810-0R041i201204-201212
23901ETUBE SUB-ASSY, FUEL
main23901-26030i200511-200812
main23901-26040i200812-201212
7751
8405
9043010025
main90430-10025
9046400558
main90464-00558
9046400725
main90464-00725
9155180625
main91551-80625
9155180830
main91551-80830
9155180835
main91551-80835
9167180820
main91671-80820
9167281025
main91672-81025
9212280625
main92122-80625
9415180600
main94151-80600
9613251100
main96132-51100
9613251300
main96132-51300
