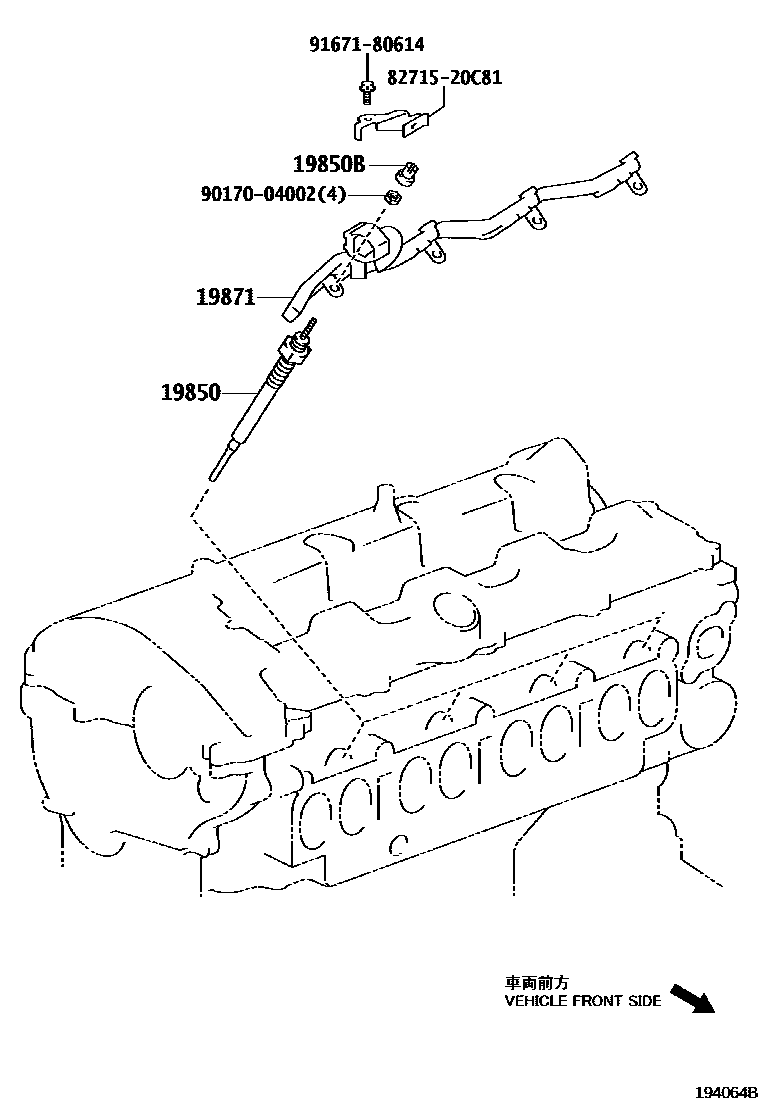

Toyota RAV4 — IGNITION COIL & SPARK PLUG / GLOW PLUG

19850PLUG ASSY, GLOW

main19850-26022×4i201506-201510

*BV-GV=12V-11V,*145

main19850-26030×4i201212-201510

*BV-GV=12V-11V,*119; *BV-GV=12V-11V,1AD-FTV,*119

main19850-WA020×4i201510-201805

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i201506-201510

*145

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010i201212-201510

*119; 2AD-FHV,*119; 2AD-FTV,*119

main19871-26030i201212-201510

*119; 1AD-FTV,*119

main19871-0R010i201311-201510

1AD-FTV,*145

8271520C81BRACKET,WIRING HARNESS CLAMP

main82715-20C81

9017004002

main90170-04002

9167180614

main91671-80614

6 parts on this diagram · 5 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4

This section contains 14 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4. Key components include: CYLINDER HEAD, PLUG, SPARK, COIL ASSY, IGNITION, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG).
