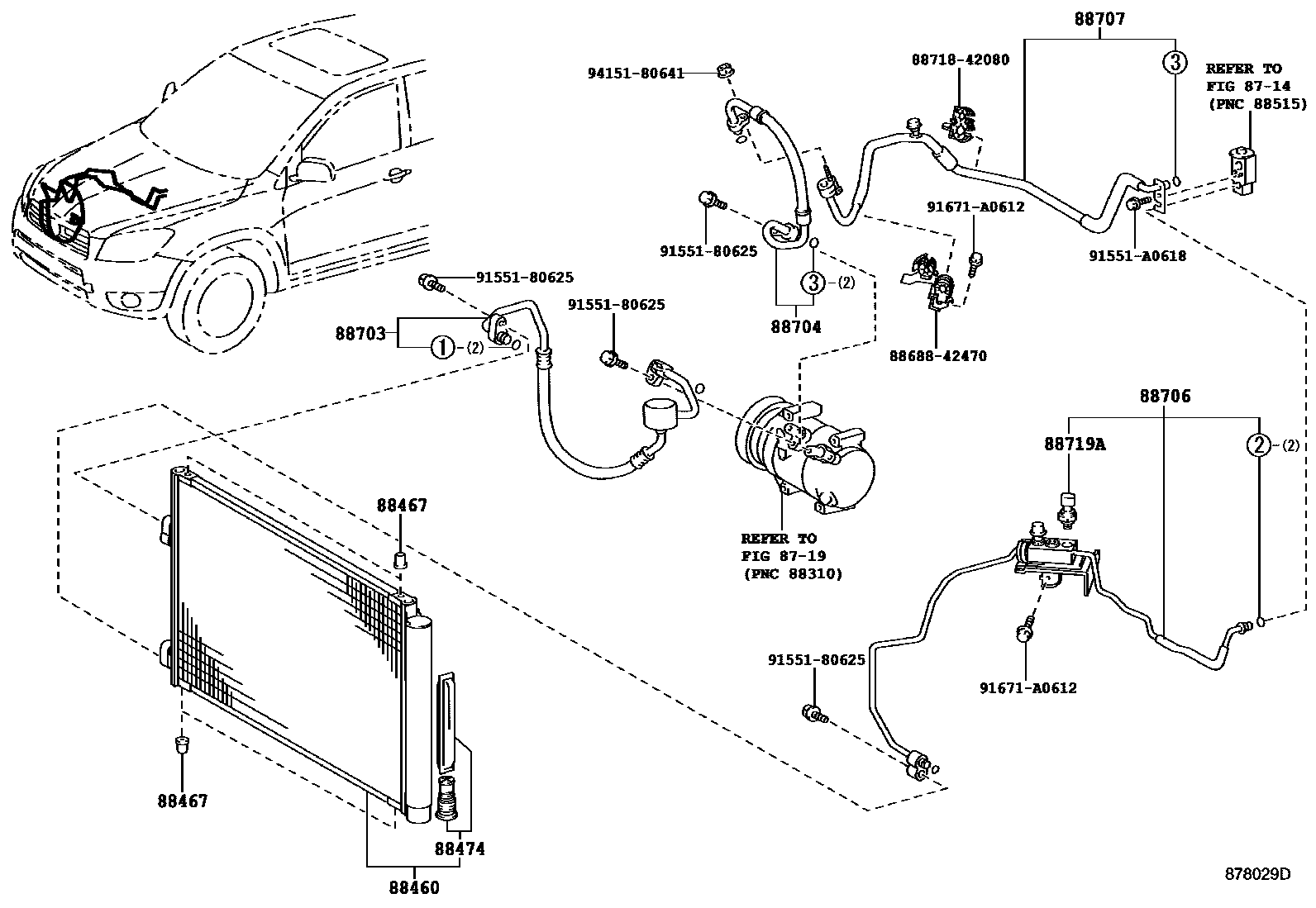

Toyota RAV4 — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-42100iACA33..G..GCC;ACA30,31,ALA30200511-200812

AIR CONDITIONER-WITHOUT

main88460-42100iACA33..G..GCC;ACA30,31,ALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88460-42100iACA33..G..GCC;ACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88460-42100iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88460-42100iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201103

main88460-42120iACA3#,ALA3#,GSA33,ZSA3#201103-201212

WITHOUT(CURTAIN & SIDE AIR BAG)

main88460-42120iACA3#,ALA3#,GSA33,ZSA3#201103-201212

AIR CONDITIONER-WITHOUT

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

88474DRYER, COOLER

main88474-12030iACA3#,ALA3#,GSA33,ZSA3#201103-201212

WITHOUT(CURTAIN & SIDE AIR BAG)

main88474-12030iACA3#,ALA3#,GSA33,ZSA3#201103-201212

AIR CONDITIONER-WITHOUT

main88474-17010iACA30,ALA30..G..(DCR,DCRL,HTWC)200511-200812

AIR CONDITIONER-WITHOUT

main88474-17010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88474-17010iACA33..G..GCC;ACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88474-17010iACA33..G..GCC;ACA30,31,ALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88474-17010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201103

88703HOSE SUB-ASSY, DISCHARGE

main88703-42080iACA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88703-42080iACA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88703-42080iACA30200812-201212

main88703-42080iACA30200511-200812

AIR CONDITIONER-WITHOUT

main88703-42090iACA33,38..ARL,GEN200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88703-42090iACA31200511-201212

main88703-42100iACA33,38..GCC200511-201012

main88703-42110iGSA33200708-201212

main88703-42120iALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88703-42120iALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88703-42120iALA30200511-200812

AIR CONDITIONER-WITHOUT

main88703-42140iALA3#200812-201212

AIR CONDITIONER-WITHOUT

main88703-42150iZSA3#200812-201212

AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-42180iACA30..X200511-200512

WITH(FRONT WHEEL SPLASH SHIELD)

main88704-42180iACA30..X200511-200512

WITHOUT(CURTAIN & SIDE AIR BAG)

main88704-42180iACA30..X200511-200512

AIR CONDITIONER-WITHOUT

main88704-42181iACA30200812-201212

main88704-42181iACA30200512-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88704-42181iACA30200512-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88704-42181iACA30200512-200812

AIR CONDITIONER-WITHOUT

main88704-42190iACA33,38..X..GEN200511-200512

AIR CONDITIONER-MANUAL(DOP)

main88704-42191iACA31,33..G..(EUR,GCC)200512-201212

main88704-42191iACA33..X..GCC;ACA33,38..ARL,GEN200512-200808

AIR CONDITIONER-MANUAL(DOP)

main88704-42201iGSA33200708-201212

main88704-42210iALA30..X..DCR200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88704-42210iALA30..X..DCR200511-200812

AIR CONDITIONER-WITHOUT

main88704-42210iALA30..G..(DCR,DCRL)200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88704-42230iALA3#200812-201212

AIR CONDITIONER-WITHOUT

main88704-42240iZSA3#200812-201212

AIR CONDITIONER-WITHOUT

88706PIPE SUB-ASSY, LIQUID

main88706-42370iACA30;ACA33,38..5F200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88706-42370iACA30;ACA33,38..5F200511-200807

AIR CONDITIONER-MANUAL(DOP)

main88706-42370iACA30;ACA33,38..5F200511-200812

AIR CONDITIONER-WITHOUT

main88706-42370iACA30..X200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88706-42390iGSA33200708-200808

main88706-42400iACA33,38..4FC..X..GEN200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88706-42400iACA31,33..G..(EUR,GCC)200511-200812

main88706-42410iACA30..X200808-200812

WITH(FRONT WHEEL SPLASH SHIELD)

sub88706-42411

main88706-42410iACA30..X200808-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

sub88706-42411

main88706-42410iACA30..X200808-200812

AIR CONDITIONER-WITHOUT

sub88706-42411

main88706-42410iACA30,33,38,ZSA3#200808-200903

sub88706-42411

main88706-42411iZSA3#200904-201212

AIR CONDITIONER-WITHOUT

main88706-42420iGSA33200808-201212

main88706-42430iALA3#200812-201212

AIR CONDITIONER-WITHOUT

88707PIPE SUB-ASSY, SUCTION

main88707-42080iALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88707-42080iALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88707-42080iALA30200511-200812

AIR CONDITIONER-WITHOUT

main88707-42090iACA33,38..5F..GEN200511-200807

WITH(FRONT WHEEL SPLASH SHIELD)

main88707-42090iACA33,38..5F..GEN200511-200807

WITHOUT(CURTAIN & SIDE AIR BAG)

main88707-42090iACA33,38..5F..GEN200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88707-42090iACA33,38..5F..GEN200511-200807

AIR CONDITIONER-WITHOUT

main88707-42090iACA31,33..G..(EUR,GCC)200511-200812

main88707-42100iACA30200808-200812

WITH(FRONT WHEEL SPLASH SHIELD)

sub88707-42101

main88707-42100iACA30200808-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

sub88707-42101

main88707-42100iACA30200808-200812

AIR CONDITIONER-WITHOUT

sub88707-42101

main88707-42100iACA30,33,38,GSA33,ZSA3#200808-200903

sub88707-42101

main88707-42101iACA3#,GSA33,ZSA3#200904-201212

AIR CONDITIONER-WITHOUT

main88707-42110iALA3#200812-201212

AIR CONDITIONER-WITHOUT

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACA30,ALA30200709-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88719-33020iACA30,ALA30200709-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88719-33020iACA30,ALA30200709-200812

AIR CONDITIONER-WITHOUT

main88719-33020iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

main88719-33020iACA33,38,GSA33..5F,5FC200709-200808

AIR CONDITIONER-MANUAL(DOP)

main88719-40020iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88719-40020iACA31,33..G..(EUR,GCC)200511-200812

8868842470BRACKET, COOLER DIAPHRAGM

main88688-42470

8871842080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42080

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0612

main91671-A0612

9415180641

main94151-80641

16 parts on this diagram · 7 diagrams in section
