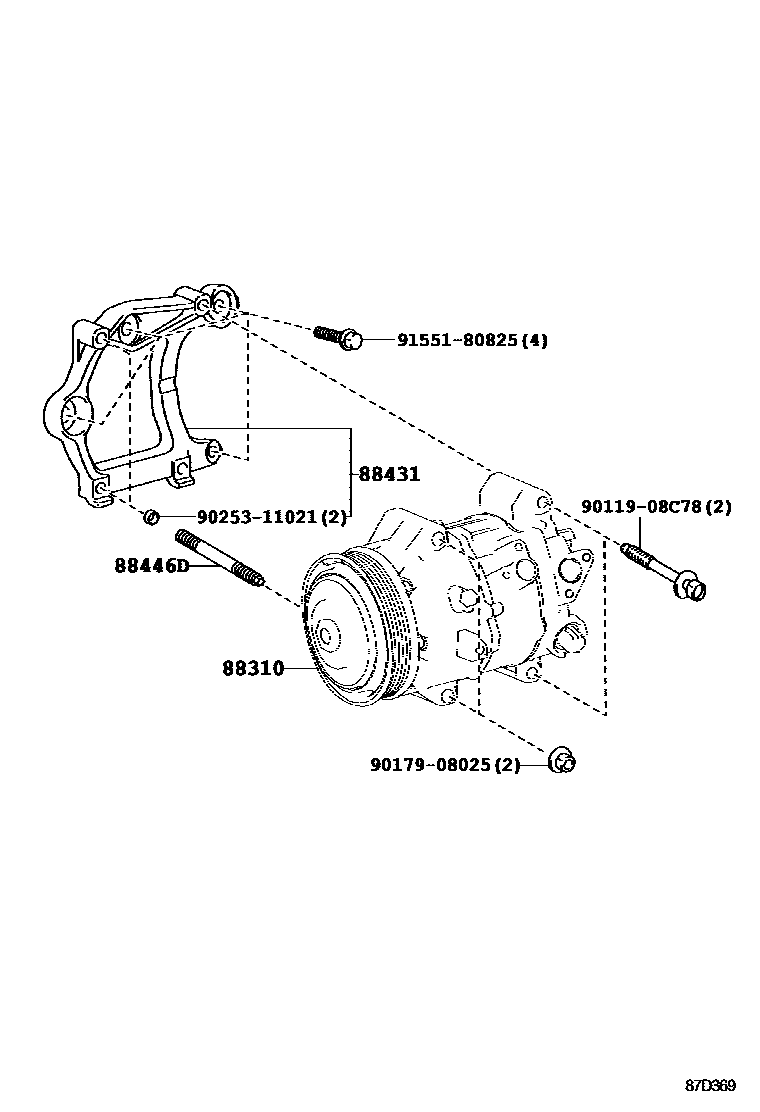

Toyota RAV4 — HEATING & AIR CONDITIONING - COMPRESSOR
88310COMPRESSOR ASSY, W/PULLEY
FRENCH SPEC&BASIC PACKAGE; UK,MALTA SPEC&BASIC PACKAGE
main88310-42391iZSA42..JPP..B..M;ZSA44..JPP..B..X;ZSA42..JPP..(G,X);ZSA44..JPP..(G,M)..RUS201610-201810
BASIC PACKAGE; FRENCH SPEC&BASIC PACKAGE; UK,MALTA SPEC&BASIC PACKAGE
BASIC PACKAGE; FRENCH SPEC&BASIC PACKAGE
BASIC PACKAGE; FRENCH SPEC&BASIC PACKAGE
BASIC PACKAGE; ENGLAND SPEC&BASIC PACKAGE; FRENCH SPEC&BASIC PACKAGE
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88446DBOLT, COOLER
main88446-42030×2iALA4#,ZSA44; ALA4#,ZSA44..DCRE,DCRL,HTWVM; ALA40,49,ZSA44..LHD..(DCRE,DCRL,HTWVM); ALA40,49,ZSA44..RHD..(DCRE,DCRL,HTWVM)201212-201510
BASIC PACKAGE; ENGLAND SPEC&BASIC PACKAGE; FRENCH SPEC&BASIC PACKAGE
9011908C78
main90119-08C78
9017908025
main90179-08025
9025311021
main90253-11021
9155180825
main91551-80825
7 parts on this diagram · 6 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RAV4
This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RAV4. Key components include: COMPRESSOR ASSY, W/PULLEY, PIN, COMPRESSOR, COMPRESSOR ASSY, W/MOTOR, BRACKET, COMPRESSOR MOUNTING, NO.1, STAY, COMPRESSOR.
