Toyota RAV4 — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0005 1CHINA SPEC 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

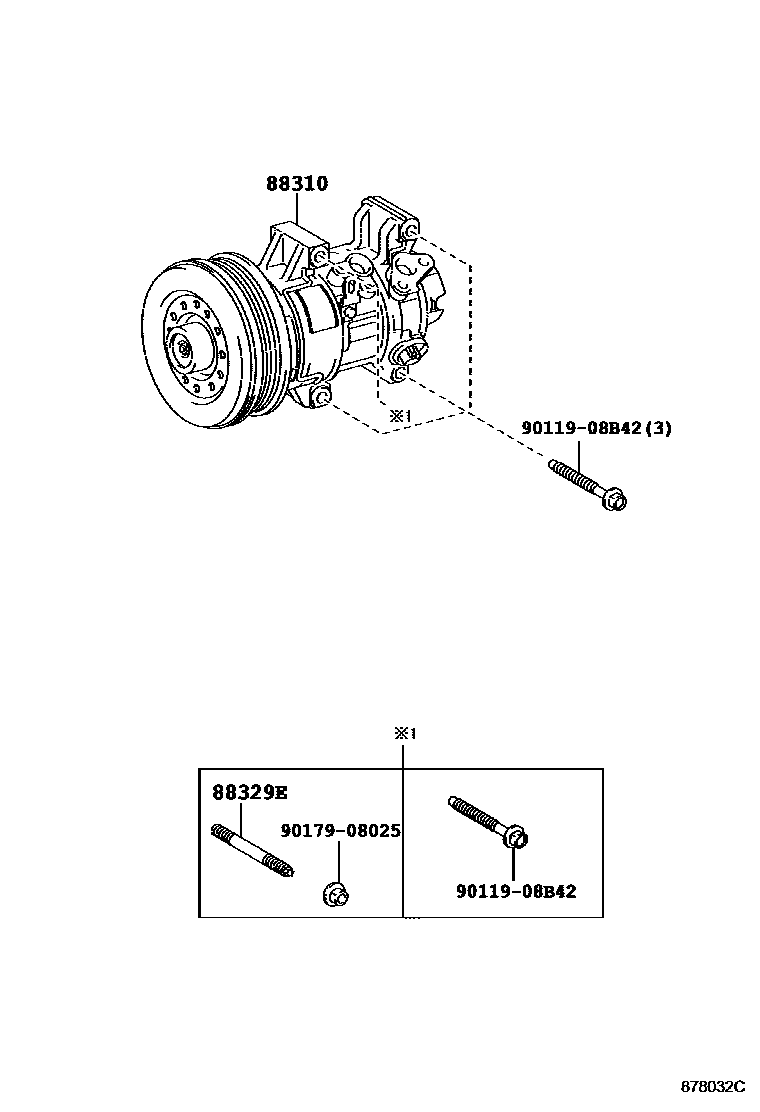

88310COMPRESSOR ASSY, W/PULLEY

main88310-42250iALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88310-42250iALA3#200812-201212

main88310-42250iALA30200511-200812

AIR CONDITIONER-WITHOUT

main88310-42250iALA30..X..DCR200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88310-42260iACA30200511-200812

AIR CONDITIONER-WITHOUT

main88310-42260iACA30200812-201212

main88310-42270iACA31,33,38200511-201212

main88310-42310iZSA30..CVFC200812-201212

AIR CONDITIONER-WITHOUT

main88310-42320iZSA3#..6F200812-201212

AIR CONDITIONER-WITHOUT

88329EBOLT, COMPRESSOR, NO.1

main88446-12060iACA3#200511-200808

AIR CONDITIONER-WITHOUT

sub88446-12061

main88446-12061iACA30,31;ACA33..G..GCC200809-200812

AIR CONDITIONER-WITHOUT

9011908B42

main90119-08B42

9017908025

main90179-08025

4 parts on this diagram · 10 diagrams in section
