Toyota RAV4 — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-42650supersedes 48131-42820iZSA44..LHD..A201212-201510

NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48131-42680iZSA44..RHD..6F201212-201510

main48131-42690iZSA44..RHD201510-201810

main48131-42740iALA49..LHD201212-201510

main48131-42760iALA49..RHD201212-201510

main48131-42820supersedes 48131-42890iZSA44..LHD..A;ZSA44..JPP..6F..M..RUS201510-201810

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42830iALA49..RUP;ALA49..(G,M)..DCRE201510

main48131-42840iALA40,41..RHD201212-201510

main48131-42890iZSA44..6F..EUR;ZSA42..JPP..6F..X201510-201810

main48131-42A00iASA44..RUP;ASA44..JPP..X..RUS201510

main48131-42A10supersedes 48131-42640iAVA4#..RUS201510-201810

ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42720supersedes 48131-42700iAVA4#..RHD201510-201810

ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42850iALA49..RHD..DCR201212-201510

ROUGH ROAD AREA SPEC-WITH(SPEC.2)

48132SPRING, FRONT COIL, LH

main48131-42650supersedes 48131-42820iWWA42..LHD;ZSA4#..RUP..B201510

main48131-42680iZSA44..RHD..6F201212-201510

main48131-42690iZSA44..RHD201510-201810

main48131-42740iALA49..LHD201212-201510

main48131-42760iALA49..RHD201212-201510

main48131-42820supersedes 48131-42890iZSA44..LHD..A;ZSA44..JPP..6F..M..RUS201510-201810

REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42830iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201510-201810

main48131-42840iALA40,41..RHD201212-201510

main48131-42890iZSA42..RUP..6F;ZSA42..JPP..6F..(G,M)201510

main48131-42A00iASA44..RUP;ASA44..JPP..X..RUS201510

main48131-42A10supersedes 48131-42640iAVA4#..RUS201510-201810

ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42720supersedes 48131-42700iAVA4#..RHD201510-201810

ROUGH ROAD AREA SPEC.-SPEC.2

main48131-42850iALA49..RHD..DCR201212-201510

ROUGH ROAD AREA SPEC-WITH(SPEC.2)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-58010iALA4#,ZSA44201212-201410

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-58010iALA4#,ZSA44201212-201410

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-21010iALA4#,ZSA44201212-201311

main48158-48050iALA4#,ZSA44201311-201409

main48158-78010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-21010iALA4#,ZSA44201212-201311

main48158-48050iALA4#,ZSA44201311-201409

main48158-78010iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

48331BBUMPER, FRONT SPRING, RH

main48331-42080iALA4#,ZSA44201212-201504

main48331-42120iALA4#,ZSA44201504-201510

48331CBUMPER, FRONT SPRING, LH

main48331-42080iALA4#,ZSA44201212-201504

main48331-42120iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iALA4#,ZSA44201212-201410

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iALA4#,ZSA44201212-201410

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80599iALA40201212-201311

MARK 48510-42360

main48510-80600iZSA44201212-201311

MARK 48510-42370

main48510-80601iALA49201212-201311

MARK 48510-42390

main48510-80644iALA40,41201311-201410

MARK 48510-42361

main48510-80645iZSA44201311-201410

MARK 48510-42371

main48510-80646iALA49201311-201410

MARK 48510-42391

main48510-80732iALA40,41201410-201510

MARK 48510-42440

main48510-80733iZSA44201410-201510

MARK 48510-42550

main48510-80734iALA49201410-201510

MARK 48510-42560

main48510-80797supersedes 48510-80796iAVA4#..RUS201510-201810

MARK 48510-42620

main48510-80819iWWA42201510-201805

MARK 48510-42660

main48510-80820iZSA44..EUR201510-201810

MARK 48510-42670

main48510-80821iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

MARK 48510-42680

main48510-80602iZSA44..LHD201212-201311

MARK 48510-42410,*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48510-80647iZSA44..LHD201311-201410

MARK 48510-42411,ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48510-80729iALA49..LHD..DCR201404-201410

MARK 48510-42420,RUSSIA SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48510-80735iZSA44..LHD201410-201510

MARK 48510-42570,UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80313iALA40201212-201311

MARK 48520-42360

main48520-80314iZSA44201212-201311

MARK 48520-42370

main48520-80315iALA49201212-201311

MARK 48520-42390

main48520-80346iALA40,41201311-201410

MARK 48520-42361

main48520-80347iZSA44201311-201410

MARK 48520-42371

main48520-80348iALA49201311-201410

MARK 48520-42391

main48520-80416iALA40,41201410-201510

MARK 48520-42440

main48520-80417iZSA44201410-201510

MARK 48520-42550

main48520-80418iALA49201410-201510

MARK 48520-42560

main48520-80473supersedes 48520-80472iAVA4#..RUS201510-201810

MARK 48520-42620,ROUGH ROAD AREA SPEC.-SPEC.2

main48520-80495iWWA42201510-201805

MARK 48520-42660

main48520-80496iZSA44..EUR201510-201810

MARK 48520-42670

main48520-80497iZSA44..LHD..EUR201510-201810

MARK 48520-42680

main48520-80316iZSA44..LHD201212-201311

MARK 48520-42410,UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48520-80349iZSA44..LHD201311-201410

MARK 48520-42411,UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48520-80413iALA49..LHD..DCR201404-201410

MARK 48520-42420,RUSSIA SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

main48520-80419iZSA44..LHD201410-201510

MARK 48520-42570,*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42040iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iALA4#,ZSA44201212-201510

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42040iALA4#,ZSA44201212-201510

48619BEARING, STRUT MOUNTING, RH

main48619-28010iALA4#,ZSA44201212-201510

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iALA4#,ZSA44201212-201510

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iALA4#,ZSA44201212-201510

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42020iALA4#,ZSA44201212-201510

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42020iALA4#,ZSA44201212-201510

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iALA4#,ZSA44201212-201510

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iALA4#,ZSA44201212-201510

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

48811BAR, STABILIZER, FRONT

main48811-42071iALA4#,ZSA44201212-201510

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-42111iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

LH

main48815-42121iZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS;ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS201510-201810

RH

main48815-42130iALA4#,ZSA44201212-201410

LH,PAINTED=WHITE

main48815-42140iALA4#,ZSA44201212-201410

RH,PAINTED=WHITE

main48815-48080iASA44,AVA4#,WWA42,ZSA44..EUR201510-201810

RH

main48815-48090iALA4#,ZSA44201410-201510

LH,PAINTED=ORANGE

main48815-42110iALA49..LHD..DCR201212-201504

RUSSIA SPEC,LH

main48815-42120iZSA44..LHD201311-201504

*334,RH

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

9038715033

main90387-15033

9415121241

main94151-21241

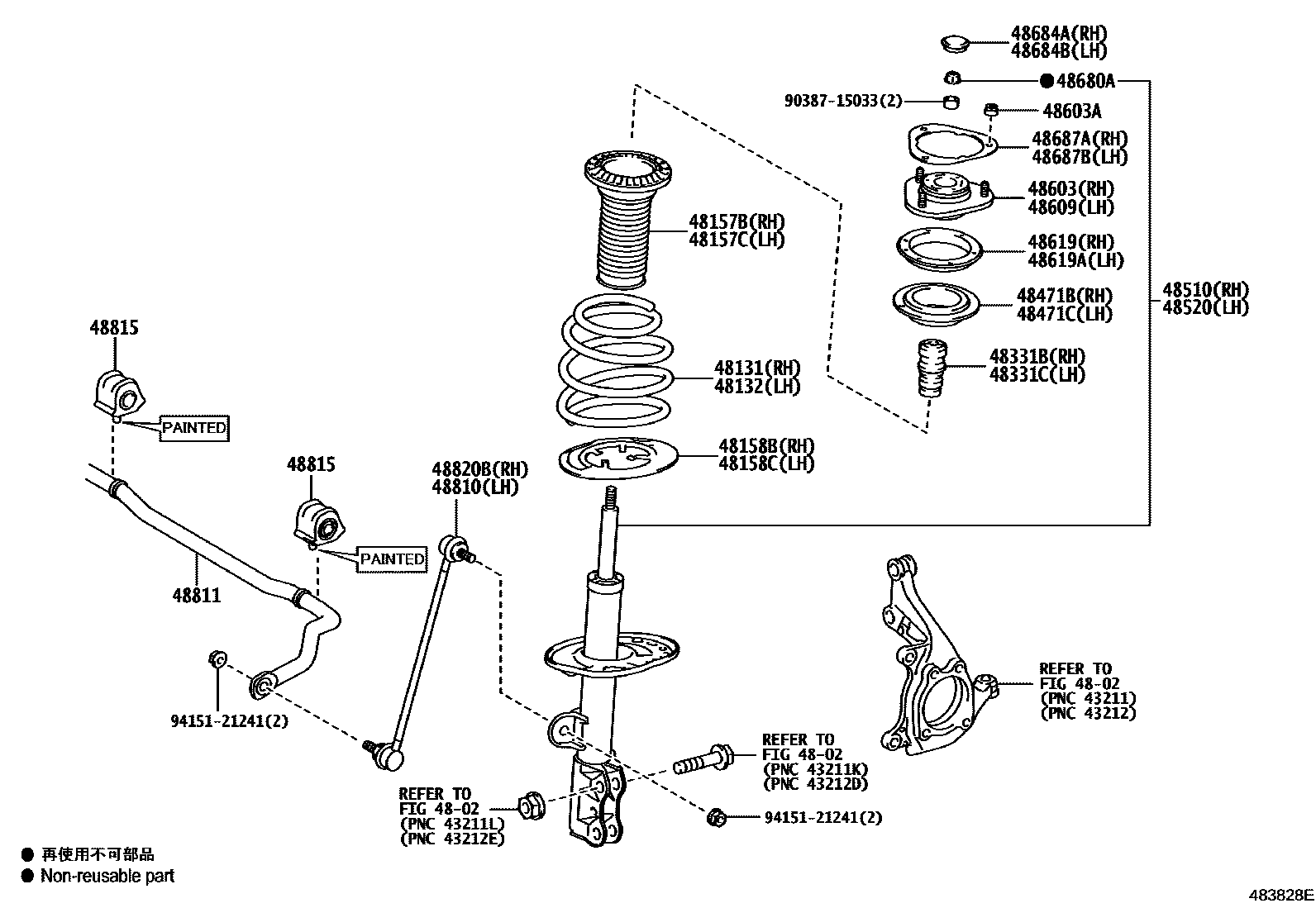

29 parts on this diagram · 2 diagrams in section
