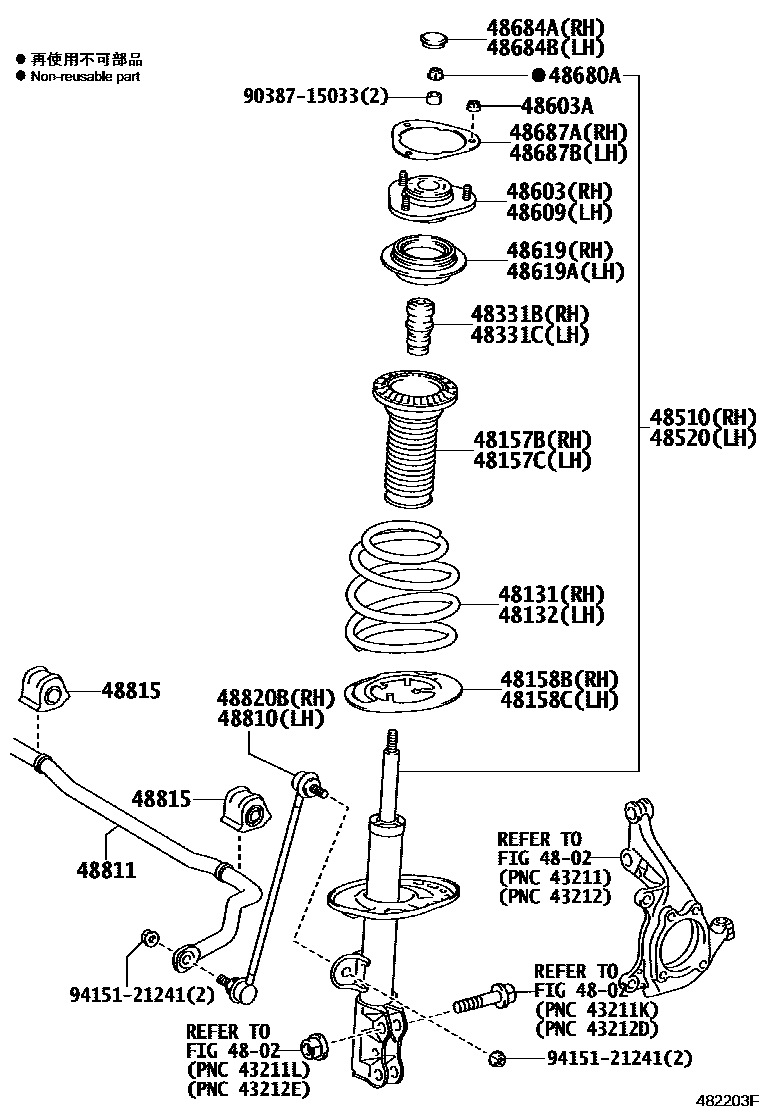

Toyota RAV4 — FRONT SPRING & SHOCK ABSORBER

0001 1TYPE A, FOR PNC48510 OR 485200002 1TYPE A: JAMAICA BERMUDA, TRIN0003 1TYPE B, FOR PNC48510 OR 48520

4802

48131SPRING, FRONT COIL, RH

main48131-42310iACA30..LHD..5F..X200511-200710

BERMUDA SPEC

main48131-42311iACA33..LHD..5F;ACA38..5F..GEN200808-201212

main48131-42470iACA30..RHD..4FC..G200511-200710

BERMUDA SPEC

main48131-42471iACA38..4FC..GEN200808-201212

main48131-42480iACA33..5F..ARL;ACA33..4FC..GCC200511-200710

main48131-42481iACA33..G..GCC200710-200812

main48131-42500iACA33..4FC..ARL200511-200710

main48131-42501iACA33..4FC..ARL200808-201212

main48131-42510supersedes 48131-42520iALA30..X200511-200710

225/65R17H ALMINUM 7.0J 5SP

main48131-42511supersedes 48131-42521iALA30..X200710-200812

225/65R17H ALMINUM 7.0J 5SP

main48131-42521iALA30..X200812-200902

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42522iALA30..6F..DCRL200903-201212

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42530iACA30..5F..X200511-200710

225/65R17H ALMINUM 7.0J 5SP

main48131-42531iACA30..5F..G200710-200812

225/65R17H ALMINUM 7.0J 5SP

main48131-42540iACA30..RHD..5F..X;ACA30..RHD..4FC..G200511-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42541iZSA35..RHD..X;ACA30..RHD..5F200812-201212

main48131-42550iACA30..4FC..X200511-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42551iACA30..4FC..X200710-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42552iZSA30..X200903-201212

main48131-42561iZSA30..RHD..G;ACA38..5F..ARL;ACA30..RHD..4FC200812-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48131-42570iACA30..LHD..5F..X;ACA30..LHD..4FC..G200603-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42571iACA30..LHD..5F..X;ACA30..LHD..4FC..G200710-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42580iACA31200701-200710

main48131-42581iACA31200710-200812

main48131-42582iZSA30..LHD..G;ACA38..4FC..GCC;ACA30,33..LHD..4FC..EUR200903-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48131-42610iALA30..RHD..X200812-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42620iGSA33200708-200710

main48131-42621iGSA33200808-201212

main48131-42630iALA30..LHD..X200812-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42631iALA30..LHD..X200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42661iACA38..4FC..ARL201003-201212

main48131-42280iALA30..RHD..G..DCR200511-200710

BERMUDA SPEC

main48131-42281iALA30..RHD..G..DCR200710-200812

BERMUDA SPEC

main48131-42291iALA30..RHD..G..DCR..ATYPE200812-201212

BERMUDA SPEC

48132SPRING, FRONT COIL, LH

main48131-42310iACA30..LHD..5F..X200511-200710

BERMUDA SPEC

main48131-42311iACA33,38..LHD..5F200710-200808

main48131-42470iACA30..RHD..4FC..G200511-200710

BERMUDA SPEC

main48131-42471iACA38..4FC..GEN200808-201212

main48131-42480iACA33..5F..ARL;ACA33..4FC..GCC200511-200710

main48131-42481iACA33..5F..ARL;ACA33..4FC..(GCC,GEN)200808-201212

main48131-42500iACA33..4FC..ARL200511-200710

main48131-42501iACA33..4FC..ARL200710-200808

main48131-42510supersedes 48131-42520iALA30..X200511-200710

225/65R17H ALMINUM 7.0J 5SP

main48131-42511supersedes 48131-42521iALA30..X200710-200812

225/65R17H ALMINUM 7.0J 5SP

main48131-42521iALA30..X200812-200902

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42522iALA30..6F..DCRL200903-201212

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42530iACA30..5F..G200511-200710

225/65R17H ALMINUM 7.0J 5SP

main48131-42531iACA30..5F..G200710-200812

225/65R17H ALMINUM 7.0J 5SP

main48131-42540iACA30..RHD..5F..X;ACA30..RHD..4FC..G200511-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42541iACA30..RHD..5F..X;ACA30..RHD..4FC..G200710-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42550iACA30..4FC..X200511-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42551iZSA30..G200812-200902

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42552iZSA30..X200903-201212

main48131-42561iZSA30..RHD..G;ACA38..5F..ARL;ACA30..RHD..4FC200812-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48131-42570iACA30..LHD..5F..G200603-200710

WITHOUT(CURTAIN & SIDE AIR BAG)

main48131-42571iZSA35..LHD..X;ACA30..LHD..5F200812-201212

main48131-42580iACA31200701-200710

main48131-42581iZSA30..LHD..X200812-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42582iZSA30..LHD..G;ACA38..4FC..GCC;ACA30,33..LHD..4FC..EUR200903-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48131-42610iALA30..RHD..X200812-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42620iGSA33200708-200710

main48131-42621iGSA33200710-200808

main48131-42630iALA30..LHD..X200812-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42631iALA30..LHD..X200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42661iACA38..4FC..ARL201003-201212

main48131-42280iALA30..RHD..G..DCR200511-200710

BERMUDA SPEC

main48131-42281iALA30..RHD..G..DCR200710-200812

BERMUDA SPEC

main48131-42291iALA30..RHD..G..DCR..ATYPE200812-201212

BERMUDA SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42020iGSA33200511-200808

main48157-42030iACA38..GEN;ACA33..ARL,GCC,GEN200808-201212

main48157-58010iACA38,GSA33..ARL,GCC;ACA30,33,ALA3#,ZSA3#..EUR201207-201212

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42020iGSA33200511-200808

main48157-42030iACA33..X..GCC;ACA33,38..ARL,GEN200511-200808

main48157-58010iACA38,GSA33..ARL,GCC;ACA30,33,ALA3#,ZSA3#..EUR201207-201212

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-21010iACA3#,ALA3#,GSA33,ZSA3#201207-201212

main48158-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201206

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-21010iACA3#,ALA3#,GSA33,ZSA3#201207-201212

main48158-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201206

48331BBUMPER, FRONT SPRING, RH

main48331-42030iGSA33200511-200808

sub48331-28090

main48331-42040iACA30..RHD..4FC..G200511-200812

BERMUDA SPEC

main48331-42060iACA38,GSA33..ARL,GCC;ACA30,33,ALA3#,ZSA3#..EUR200808-201212

48331CBUMPER, FRONT SPRING, LH

main48331-42030iACA30,31,ALA30200511-200809

sub48331-28090

main48331-42040iACA33..X..GCC;ACA33,38..ARL,GEN200511-200808

main48331-42060iACA30,31,ALA30200810-200812

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80284iACA38,GSA33..ARL,GCC200808-201210

MARK 48510-42180,TYPE A

main48510-80285iALA30200511-200812

MARK 48510-42190,TYPE A

main48510-80287iACA30..RHD..4FC..G200511-200812

MARK 48510-42160,BERMUDA SPEC,TYPE B

main48510-80451iACA30,33,ZSA3#..EUR200812-201112

MARK 48510-42310,TYPE A

main48510-80452iALA3#200812-201208

MARK 48510-42320,TYPE A

main48510-80579iACA30,33,ZSA3#..EUR201112-201212

MARK 48510-42311,TYPE A

main48510-80633iALA3#201208-201212

MARK 48510-42321,TYPE A

main48510-80637iACA38..GEN;ACA33..ARL,GCC,GEN201211-201212

MARK 48510-42161,ALGERIA SPEC,TYPE B

main48510-80638iACA38,GSA33..ARL,GCC201211-201212

MARK 48510-42181,TYPE A

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80071iACA30,31200511-200812

MARK 48520-42180,TYPE A

main48520-80072iALA30200511-200812

MARK 48520-42190,TYPE A

main48520-80074iACA30..RHD..4FC..G200511-200812

MARK 48520-42160,RUSSIA SPEC,TYPE B

main48520-80195iACA30,33,ZSA3#..EUR200812-201112

MARK 48520-42310,TYPE A

main48520-80196iALA3#200812-201208

MARK 48520-42320,TYPE A

main48520-80299iACA30,33,ZSA3#..EUR201112-201212

MARK 48520-42311,TYPE A

main48520-80337iALA3#201208-201212

MARK 48520-42321,TYPE A

main48520-80340iACA38..GEN;ACA33..ARL,GCC,GEN201211-201212

MARK 48520-42161,SOUTH AFRICA SPEC,TYPE B

main48520-80341iACA38,GSA33..ARL,GCC201211-201212

MARK 48520-42181,TYPE A

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42020iACA30,31,ALA30200511-200812

main48609-42030iACA30..RHD..4FC..G200511-200808

BERMUDA SPEC

main48609-42060iACA30..RHD..4FC..G200808-200812

BERMUDA SPEC

sub48609-12580

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42020iGSA33200511-200808

main48609-42030iACA30..RHD..4FC..G200511-200808

BERMUDA SPEC

main48609-42060iACA30..RHD..4FC..G200808-200812

BERMUDA SPEC

sub48609-12580

48619BEARING, STRUT MOUNTING, RH

main48619-42010iGSA33200511-200808

48619ABEARING, STRUT MOUNTING, LH

main48619-42010iGSA33200511-200808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iACA30,ALA30200511-200512

main48684-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200601-200808

main48684-52010iACA30..RHD..4FC..G200511-200512

BERMUDA SPEC

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iACA30,ALA30200511-200512

main48684-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200601-200808

main48684-52010iACA30..RHD..4FC..G200511-200512

BERMUDA SPEC

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iACA33..G..GCC;ACA30,31,ALA30200511-200812

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

48811BAR, STABILIZER, FRONT

main48811-42060iACA38200511-200808

main48811-42070iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

main48811-42071iACA3#,ALA3#,GSA33,ZSA3#201204-201212

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-42070iACA38200708-200808

LH

main48815-42080iACA38200511-200707

RH

main48815-42090iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

LH

main48815-42100iACA33..EUR200808-201001

RH

main48815-42110iACA33..EUR201001-201212

LH

sub48815-42111

main48815-42120iACA33..EUR201001-201212

RH

sub48815-42121

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iACA33..G..GCC;ACA30,31,ALA30200511-200812

9038715033

main90387-15033

9415121241

main94151-21241

27 parts on this diagram · 3 diagrams in section
