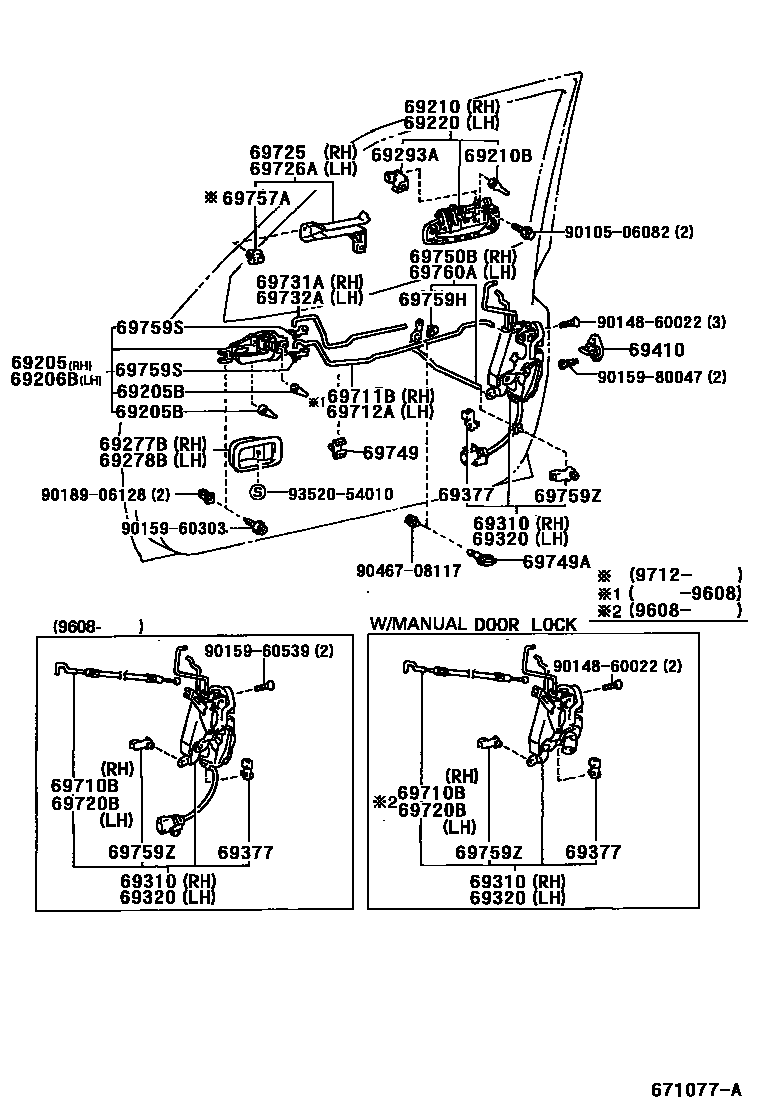

Toyota RAV4 — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM10,12
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
D=8.5
D=12.0
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM10,12
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,K59 ,056
SILVER ME,K61 ,199
SILVER GR.SF.,KA1 ,KA2 ,K98 ,1B9
BLACK,K62 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,K67 ,6P3
GREEN ME.OP.,K69 ,6Q8
MAGELLAN SPEC(BELGIUM),DEEP TEAL M.,K48
BLUE M.M.,K71 ,8L5
WHITE,K59 ,056
MAX CAMPAIGN(AUSTRALIA),WHITE PM.,K18
SILVER ME,K61 ,199
SILVER GR.SF.,K98 ,1B9
BLACK,K99 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,6P3
GREEN ME.OP.,K69 ,6Q8
WORLD CUP CELEBRATION MODEL,BLUE MICA M.,KA4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,K59 ,056
SILVER ME,K61 ,199
SILVER GR.SF.,KA1 ,KA2 ,K98 ,1B9
BLACK,K62 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,K67 ,K68 ,6P3
GREEN ME.OP.,K69 ,6Q8
MAGELLAN SPEC(BELGIUM),DEEP TEAL M.,K48
BLUE M.M.,K71 ,8L5
WHITE,K59 ,056
MAX CAMPAIGN(AUSTRALIA),WHITE PM.,K18
SILVER ME,K61 ,199
SILVER GR.SF.,K98 ,1B9
BLACK,K99 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,6P3
GREEN ME.OP.,K69 ,6Q8
BLUE M.M.,K71 ,8L5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM10,12
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM10,12
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69377SNAP, FRONT DOOR LOCK CONTROL ROD
RH-WHITE
LH-BLUE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69757ACLAMP, DOOR LOCK CONTROL BELLCRANK
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH-PINK
RH-YELLOW
69759ZSNAP, DOOR LOCK CONTROL LINK
LH-YELLOW
RH-BROWN
LH-GREEN
RH-GRAY
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9014860022
main90148-60022
9015960303
main90159-60303
9015960539
main90159-60539
9015980047
main90159-80047
9018906128
main90189-06128
9046708117
main90467-08117
9352054010
main93520-54010
37 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RAV4
This section contains 37 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
