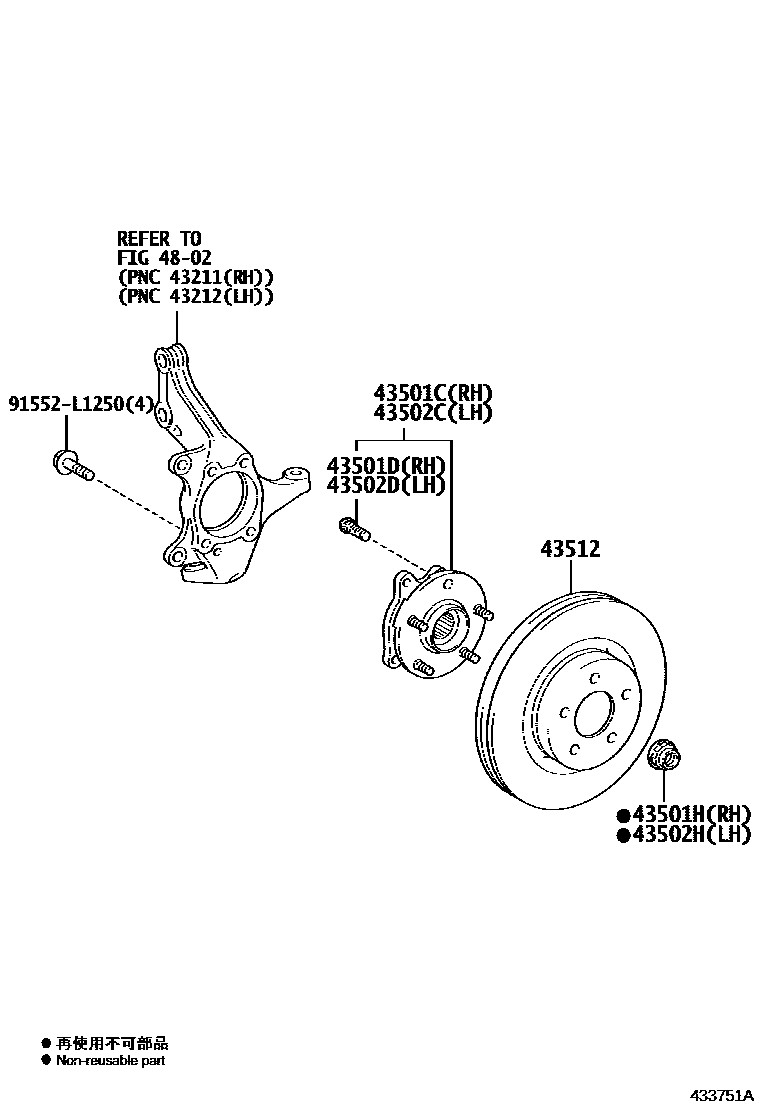

Toyota RAV4 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iACA30,31..4FC;ACA33..G..GCC200511-201212

main43550-42020iACA33,38,GSA33..5F,5FC200511-201212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iACA33..G..GCC;ACA30,31,ALA30200511-201212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main43550-42020iACA30,33,38,ALA3#,GSA33,ZSA3#..5F,5FC,6F,6FC200511-201212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iACA33..G..GCC;ACA30,31,ALA30200511-201212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

43512DISC, FRONT

main43512-42040iACA33,38..GEN200511-201212

main43512-42050iACA33,38..GEN200808-201212

FRONT WHEEL BRAKE-16"DISK(28V),

main43512-42050iACA30,31,33,ALA30,GSA33..ARL,EUR,GCC200511-200812

main43512-42080iACA33,38..GEN200801-200802

sub43512-42040

main43512-42090iACA33,38..GEN200801-200802

FRONT WHEEL BRAKE-16"DISK(28V),

sub43512-42050

main43512-42100iALA3#200812-201212

4802

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section
