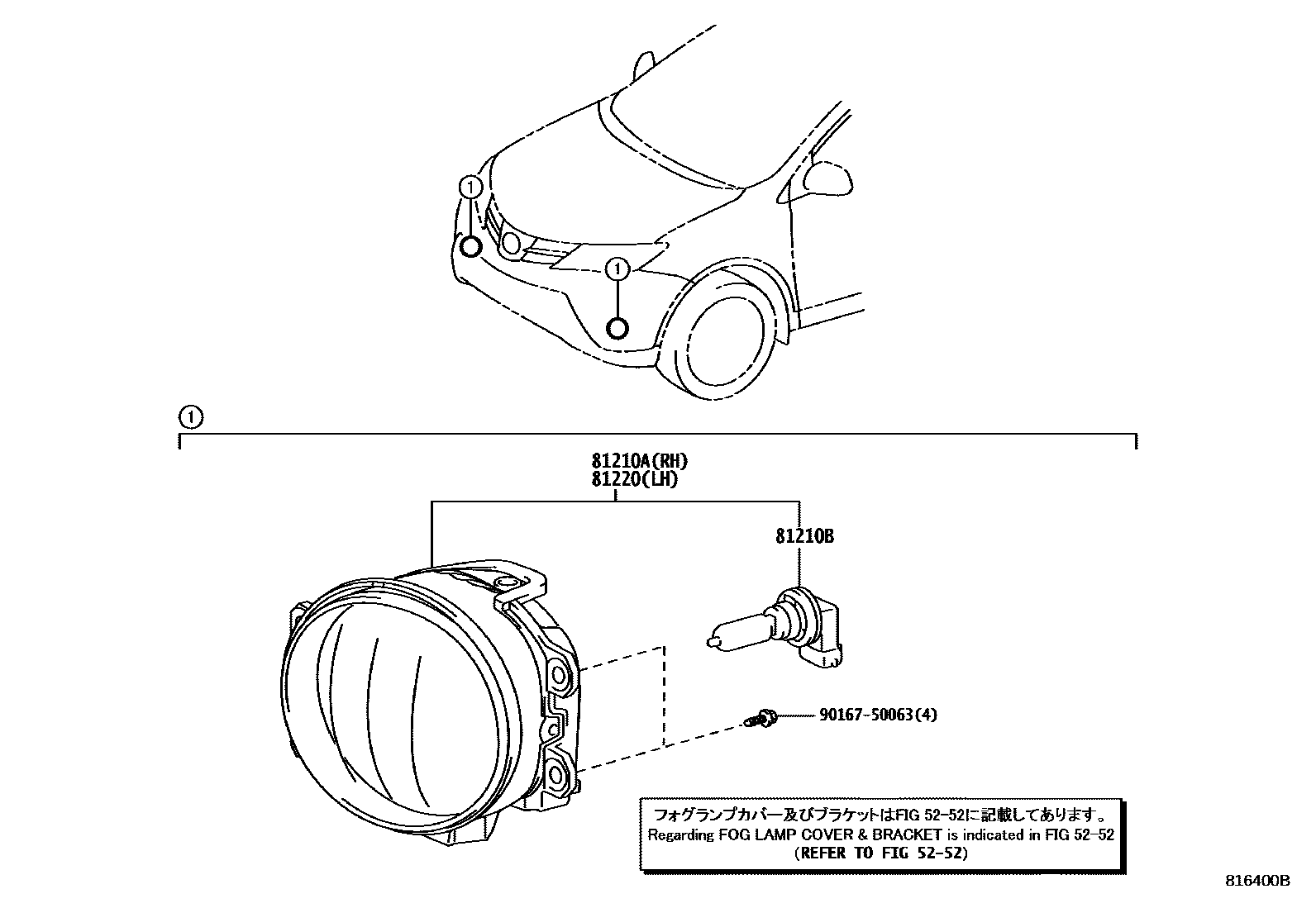

Toyota RAV4 — FOG LAMP
5252FRONT BUMPER & BUMPER STAY
81210ALAMP ASSY, FOG, RH
main81210-47010iWWA42..G,M;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main81210-60180iALA4#,ZSA44..LHD..X; ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM); ALA49,ZSA44..RHD..(6F,6FC)..X; ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M); ALA49..RHD..X; ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M)201212-201411
AUSTRALIA SPEC; BASIC PACKAGE; FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT; NEW ZEALAND SPEC
main81210-60200iALA4#,ZSA44..LHD..X; ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM); ALA49,ZSA44..RHD..(6F,6FC)..X; ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M); ALA49..RHD..X; ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M)201412-201510
AUSTRALIA SPEC; BASIC PACKAGE; FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT; NEW ZEALAND SPEC
81210BBULB, FOG LAMP
main90981-13090×2iWWA42..G,M;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
12V 19W
81220LAMP ASSY, FOG, LH
main81220-47010iWWA42..G,M;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main81220-60100iALA4#,ZSA44..LHD..X; ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM); ALA49,ZSA44..RHD..(6F,6FC)..X; ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M); ALA49..RHD..X; ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M)201212-201411
AUSTRALIA SPEC; BASIC PACKAGE; FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT; NEW ZEALAND SPEC
main81220-60120iALA4#,ZSA44..LHD..X; ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM); ALA49,ZSA44..RHD..(6F,6FC)..X; ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M); ALA49..RHD..X; ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M)201412-201510
AUSTRALIA SPEC; BASIC PACKAGE; FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT; NEW ZEALAND SPEC
9016750063
main90167-50063
5 parts on this diagram · 2 diagrams in section
FOG LAMP for Toyota RAV4
This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota RAV4. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
