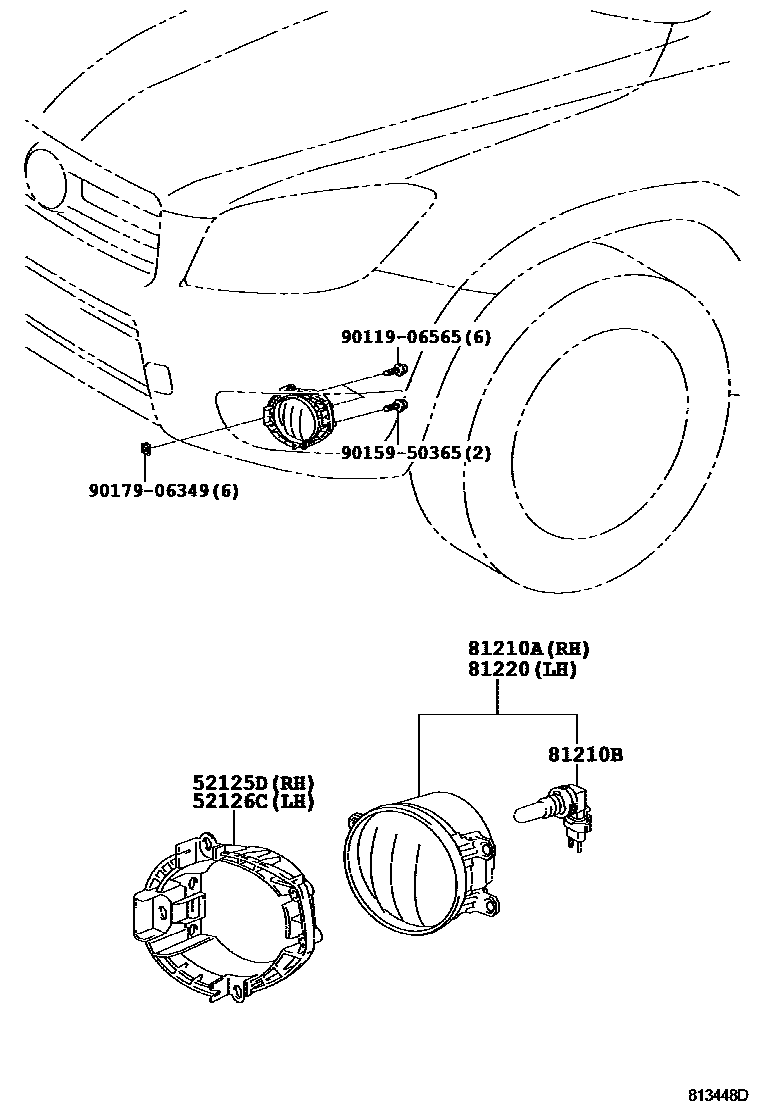

Toyota RAV4 — FOG LAMP

52125DBRACKET, FOG LAMP MOUNTING, RH

main52125-42020i200511-200812

52126CBRACKET, FOG LAMP MOUNTING, LH

main52126-42020i200511-200812

81210ALAMP ASSY, FOG, RH

main81210-0D040i200511-200611

main81210-0D041i200612-200812

main81210-0D042i201005-201212

main81210-0W050i201002-201212

81210BBULB, FOG LAMP

main90981-13075×2i200511-200812

12V 55W,HALOGEN,PHILIPS

main90981-13081×2i200808-201212

12V 55W,HALOGEN,OSRAM

main90981-WD011×2i201107-201109

12V 55W,SPECIAL EDITION

81220LAMP ASSY, FOG, LH

main81220-0D040i200511-200611

main81220-0D041i200612-200812

main81220-0D042i201005-201212

main81220-0W040i201002-201212

9011906565

main90119-06565

9015950365

main90159-50365

9017906349

main90179-06349

8 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota RAV4

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota RAV4. Key components include: BRACKET, FOG LAMP MOUNTING, RH, BRACKET, FOG LAMP MOUNTING, LH, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
