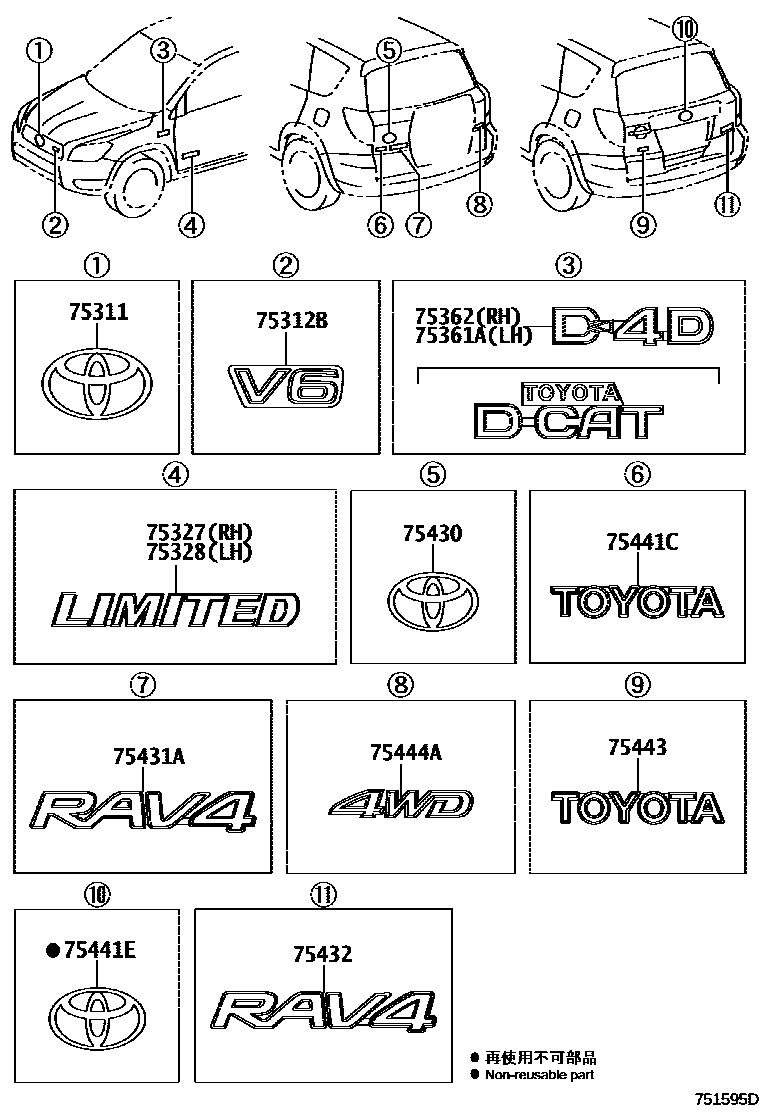

Toyota RAV4 — EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main75311-42050iACA30..LHD200804-200812

RUSSIA SPEC

main75311-42050iACA33..EUR200812-201212

main90975-02100iACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3#..ATYPE200808-201212

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-42010iGSA33200708-200808

main75312-42020iGSA33200808-201212

75327MARK, FRONT DOOR, RH

main75327-42010

75328MARK, FRONT DOOR, LH

main75328-42010

75361APLATE, FRONT FENDER NAME, NO.1

main75361-42010iALA30..DCR,DCRE200511-200812

D-4D

main75361-42020iALA30..DCRL200511-201212

TOYOTA D-CAT

75362PLATE, FRONT FENDER NAME, NO.2

main75362-42010iALA30..DCR,DCRE200511-200812

main75362-42020iALA30..DCRL200511-200812

main75362-42020iALA30..DCRL200812-201212

TOYOTA D-CAT

75430EMBLEM ASSY, BACK DOOR, NO.1

main75430-42010iACA31200511-200803

sub75471-42050

main75430-42010iACA30,33,38,ALA30,GSA33200511-200807

235/55R18H ALMINUM 7.5J

sub75471-42050

main75430-42010iACA30,33,38,ALA30,GSA33200511-200807

WITHOUT SPARE TIRE

sub75471-42050

main75430-42010iACA30,33,38,ALA30,GSA33200511-200807

REPAIR KIT(W/O SPARE TIRE)

sub75471-42050

main75430-42020iACA31200803-200811

RUSSIA SPEC

main75471-42050iACA30,ALA30;ACA33..G..GCC200807-200812

WITHOUT SPARE TIRE

main75471-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200807-201212

main75471-42050iACA30,ALA30;ACA33..G..GCC200807-200812

235/55R18H ALMINUM 7.5J

main75471-42050iACA30,ALA30;ACA33..G..GCC200807-200812

REPAIR KIT(W/O SPARE TIRE)

main75471-42070iACA30..LHD200811-200812

RUSSIA SPEC

main75471-42070iACA33..EUR200812-201212

75431AEMBLEM, BACK DOOR, NO.1

main75431-42030iACA30,ALA30;ACA33..G..GCC200511-201212

RAV4

sub75431-42150

main75431-42070iACA33..EUR200812-201212

main75431-42070iACA31200803-200812

RUSSIA SPEC

75432EMBLEM, BACK DOOR, NO.2

main75431-42040iALA30..6FC..ATYPE;ALA30,ZSA3#..G..BTYPE;ALA35..G..DCRE..BTYPE200903-201212

RAV4

75441CPLATE, BACK DOOR NAME

main75441-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

TOYOTA

main75441-42060iACA30..LHD200803-200812

RUSSIA SPEC

main75441-42060iACA33..EUR200812-201212

75441EPLATE, BACK DOOR NAME, NO.1

main90975-02071iALA35..G..DCR201002-201212

main90975-02072iALA30..6FC200903-201002

75443PLATE, BACK DOOR NAME, NO.3

main75441-42040iALA35..G..DCR..BTYPE200903-201212

TOYOTA

75444APLATE, BACK DOOR NAME, NO.4

main75444-42010iACA33..4FC..ARL200511-201212

4WD

main75444-42010iACA33..4FC..ARL200511-201212

4WD,SINGAPORE SPEC

main75444-42010iACA33..G..GCC200511-200812

4WD,HONG KONG SPEC

main75444-42010iACA33..G..GCC200511-200812

4WD,SOUTH AFRICA SPEC

13 parts on this diagram · 1 diagram in section
