Toyota RAV4 — ECO-RUN SYSTEM

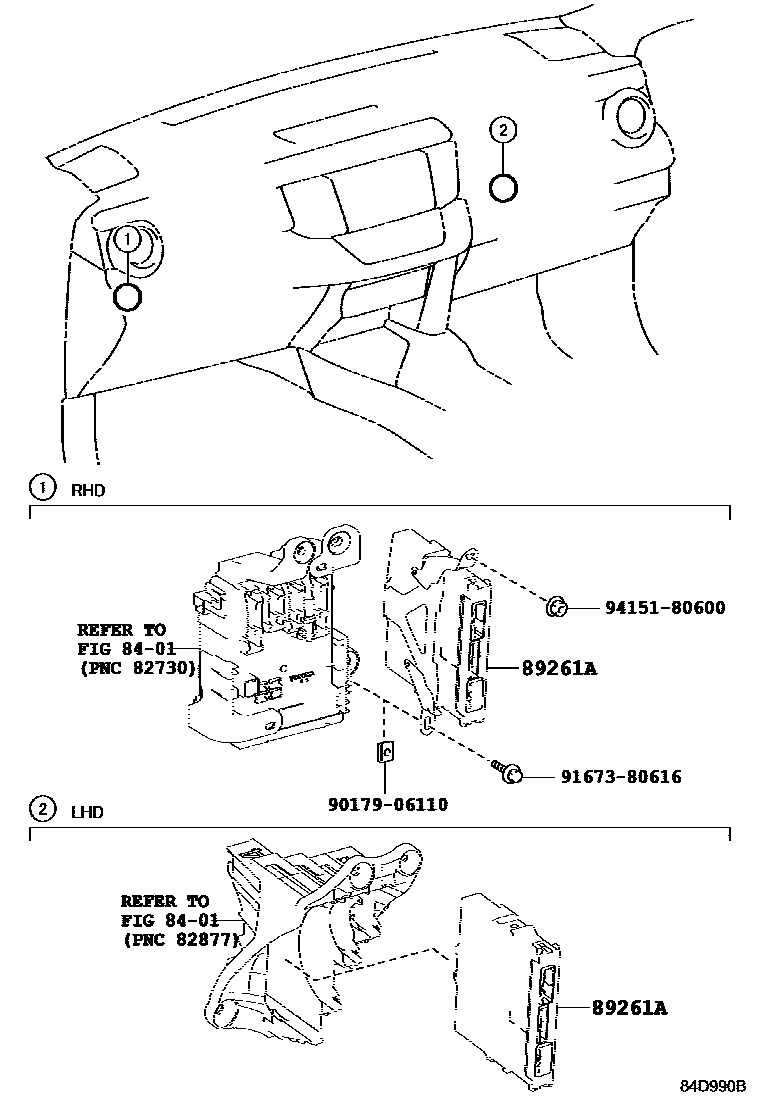

Parts diagram

8401

89261ACOMPUTER, ENGINE STOP AND START

main89260-12100i201212-201510

main89260-42010i201212-201510

main89260-42080i201510-201810

main89260-42090i201510-201810

main89260-42100i201510-201810

main89260-42120i201510-201805

main89260-42130i201510-201805

main89260-42140i201504-201510

main89260-42150i201504-201510

9017906110

main90179-06110

9167380616

main91673-80616

9415180600

main94151-80600

5 parts on this diagram · 1 diagram in section
