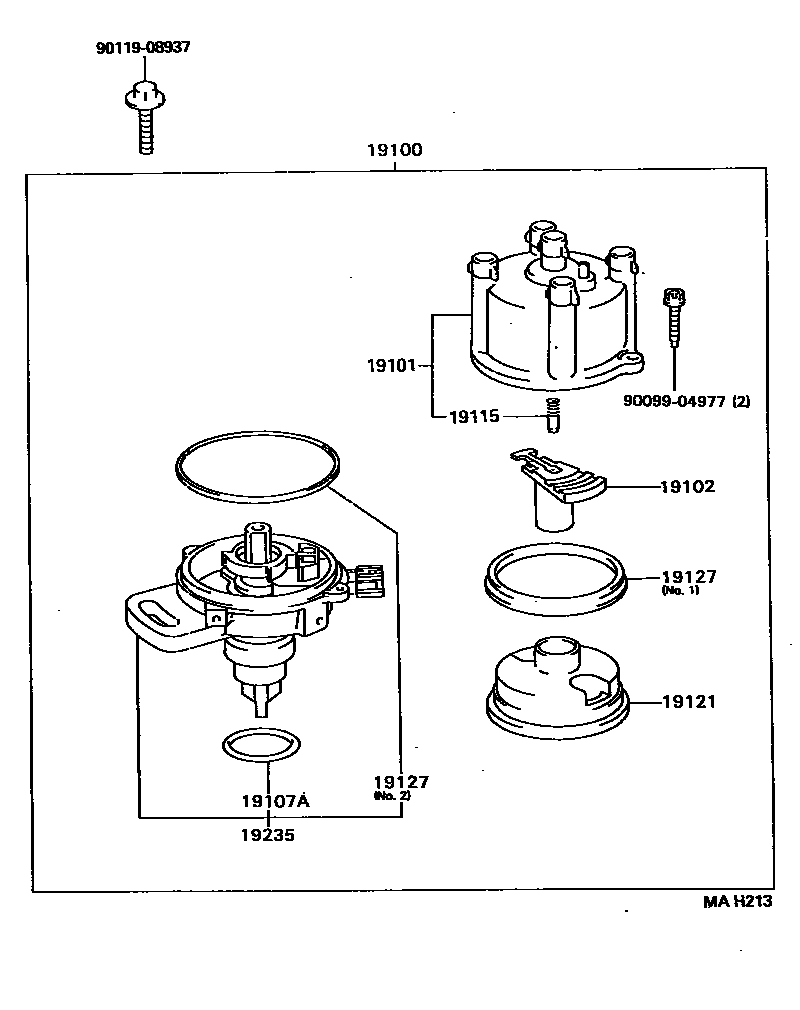

Toyota RAV4 — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19050-74040i3SFE..SXA1#..EUR,GCC,GEN199404-199608

main19100-74081i3SFE..SXA1#..ARL199404-199709

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74150i3SFE..SXA1#..ARL199404-199709

main19101-74180i3SFE..SXA1#..EUR,GCC,GEN199404-199608

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE..SXA1#..ARL199608-199709

sub19102-11370

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i3SFE..SXA10199404-199409

main90099-14127i3SFE..SXA1#..EUR,GEN199409-199508

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i3SFE..SXA1#..EUR,GCC,GEN199404-199608

main19115-88280i3SFE..SXA1#..ARL199404-199709

19121COVER, DUST PROOF

main19121-11080i3SFE..SXA1#..EUR,GCC,GEN199404-199608

main19121-74010i3SFE..SXA1#..ARL199404-199709

19127PACKING, DUST PROOF

main19127-74010i3SFE..SXA1#..ARL199404-199709

NO.1

main19127-74040i3SFE..SXA1#..ARL199404-199709

NO.2

main19127-74050i3SFE..SXA1#..EUR,GCC,GEN199404-199608

19235HOUSING, DISTRIBUTOR

main19235-74160i3SFE..SXA1#..ARL199404-199709

main19235-74210i3SFE..SXA1#..EUR,GCC,GEN199404-199608

9009904977

main90099-04977

9011908937

main90119-08937

10 parts on this diagram · 2 diagrams in section
