Toyota RAV4 — CLUTCH & RELEASE FORK

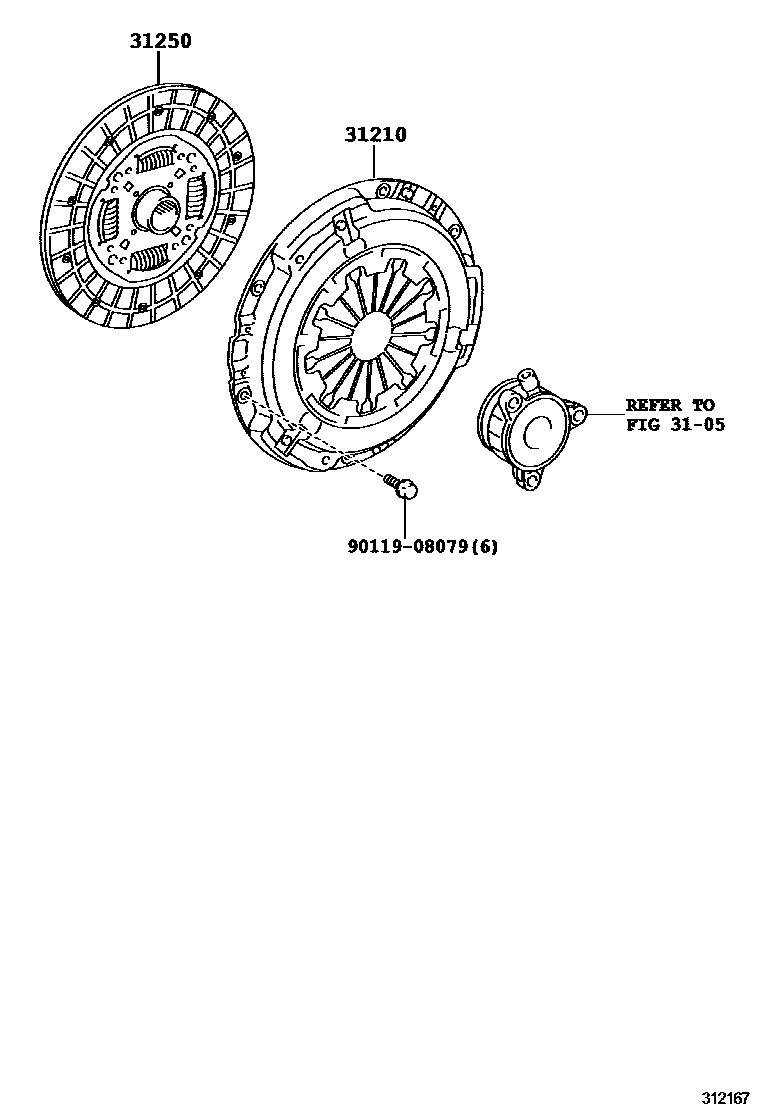

Parts diagram

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-42030i201212-201810

31250DISC ASSY, CLUTCH

main31250-42021i201212-201708

main31250-42022i201709-201810

9011908079

main90119-08079

4 parts on this diagram · 3 diagrams in section
