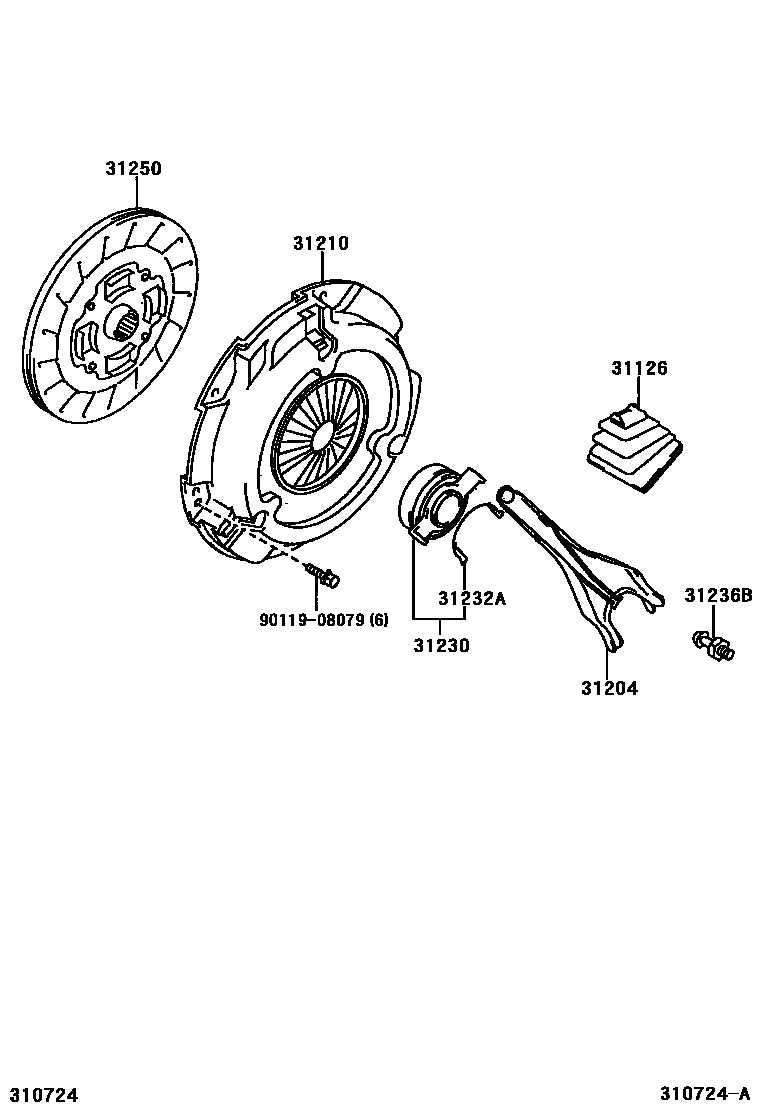

Toyota RAV4 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iACA2#..MTM200008-200307

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACA2#..MTM200307-200511

31210COVER ASSY, CLUTCH

main31210-28060iACA2#..MTM200307-200508

main31210-33040iACA2#..MTM200509-200511

sub31210-33041

main31210-42010iACA2#..MTM200008-200307

sub31210-42020

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACA2#..MTM200307-200511

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACA2#..MTM200307-200511

31236BSUPPORT, RELEASE FORK

main31236-20060iACA2#..MTM200307-200511

31250DISC ASSY, CLUTCH

main31250-28180iACA2#..MTM200307-200510

main31250-28181iACA2#..MTM200511

sub31250-33060

main31250-42010iACA2#..MTM200008-200307

sub31250-42011

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
