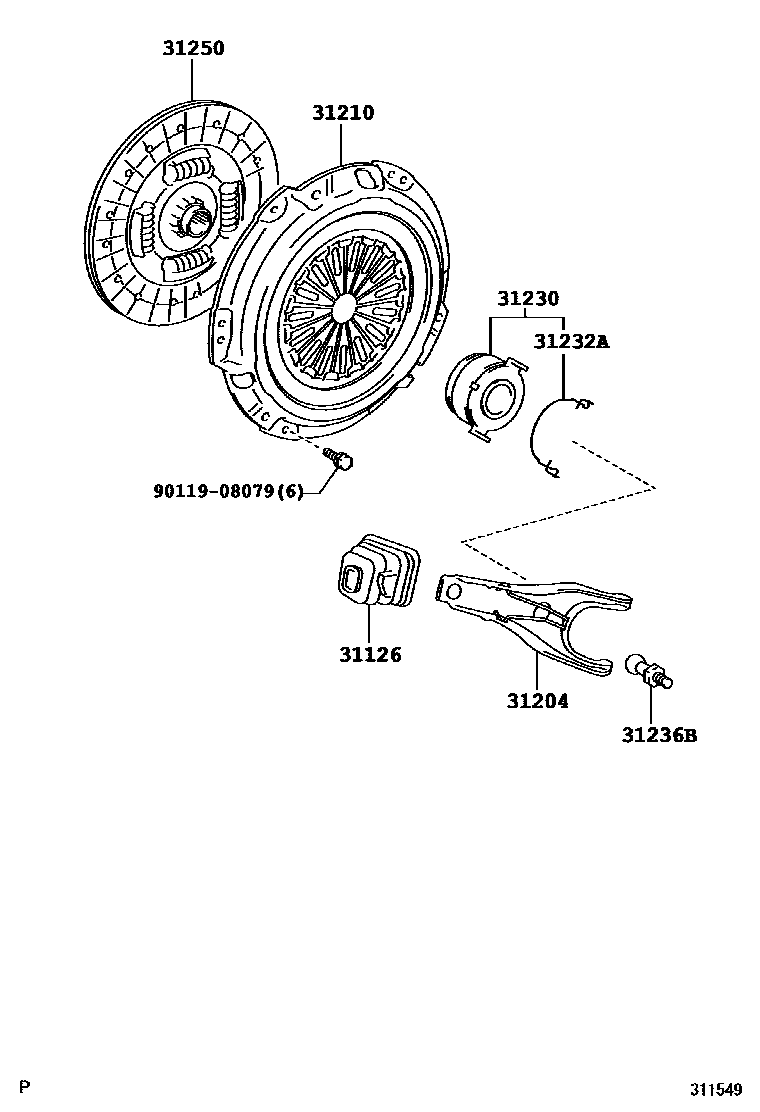

Toyota RAV4 — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iALA30200511-200812

main31126-32010iACA33,38..5F200511-200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACA33,38..5F200511-200808

main31204-20140iALA30200511-200812

31210COVER ASSY, CLUTCH

main31210-33040iACA33,38..5F200511-200701

main31210-33041iACA33,38..5F200702-200703

main31210-33042iACA33,38..5F200703-200808

main31210-42020iACA30..5F200511-200703

main31210-42021iACA30..5F200812-201212

main31210-42030iZSA3#..6F200812-201212

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACA3#..5F200511-200608

main31230-20200iALA30200511-200812

main31230-33020iACA30,33,38..5F200808-201212

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACA30..5F200511-200812

main31232-20031iALA3#..6F200812-201212

31236BSUPPORT, RELEASE FORK

main31236-20060iACA33,38..5F200511-200808

main31236-20080iALA3#..6F200812-201212

31250DISC ASSY, CLUTCH

main31250-33040iACA30,33,38..5F200808-201111

main31250-33041iACA3#..5F201112-201212

sub31250-33042

main31250-42020iZSA3#..6F200812-201107

main31250-42021iZSA3#..6F201108-201212

sub31250-42022

9011908079

main90119-08079

8 parts on this diagram · 3 diagrams in section
