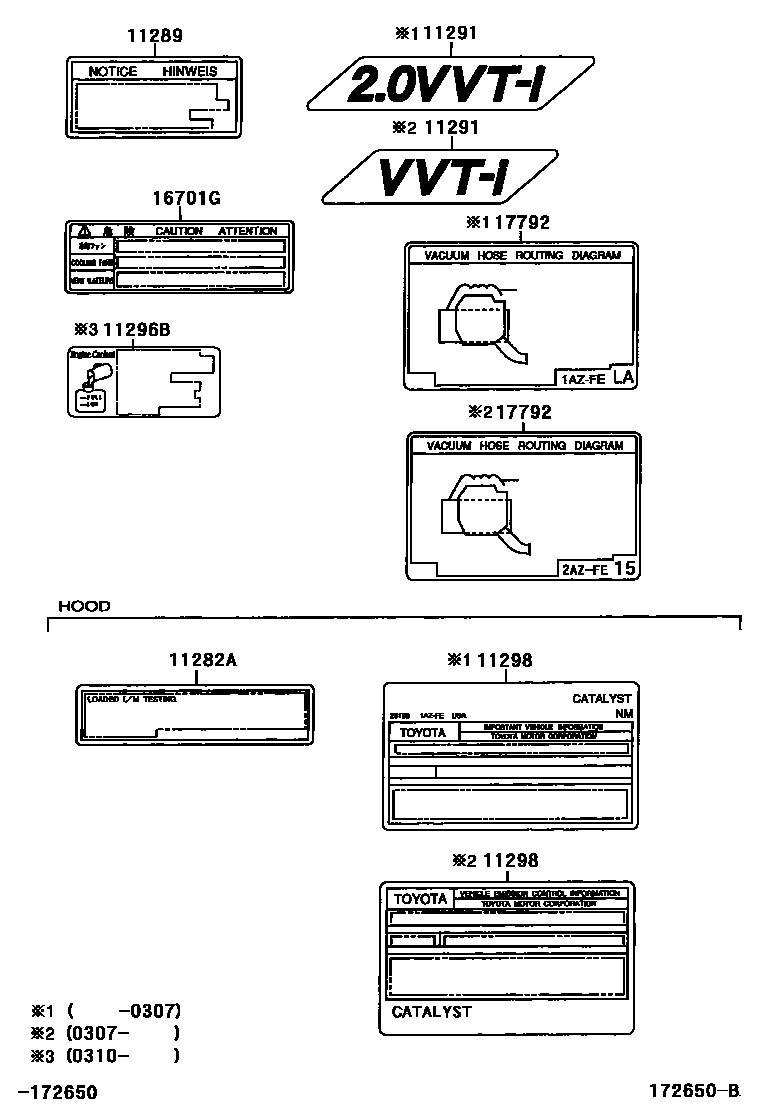

Toyota RAV4 — CAUTION PLATE & NAME PLATE (ENGINE)

11282ALABEL, LOADED TESTING CAUTION

main11282-74010i1AZFE..ACA21200008-200307

11289PLATE, SPARK PLUG CAUTION

main11289-28010i1AZFE..ACA2#200008-200307

11291PLATE, ENGINE NAME

main11291-28100i1AZFE..ACA2#200008-200307

main11291-28120i2AZFE..ACA2#200307

11296BLABEL, ENGINE SERVICE INFORMATION

main11296-27020i2AZFE..ACA2#200310

11298PLATE, EMISSION CONTROL INFORMATION

main11298-28150i1AZFE..ACA2#200008-200108

main11298-28200i1AZFE..ACA2#200108-200208

main11298-28240i1AZFE..ACA2#200208-200307

main11298-28300i2AZFE..ACA2#200307-200409

main11298-28360i2AZFE..ACA2#200409

16701GLABEL, CAUTION

main16793-46010i1AZFE..ACA2#200008-200307

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-28140i1AZFE..ACA2#200008-200307

main17792-28180i2AZFE..ACA2#200307

7 parts on this diagram · 1 diagram in section
