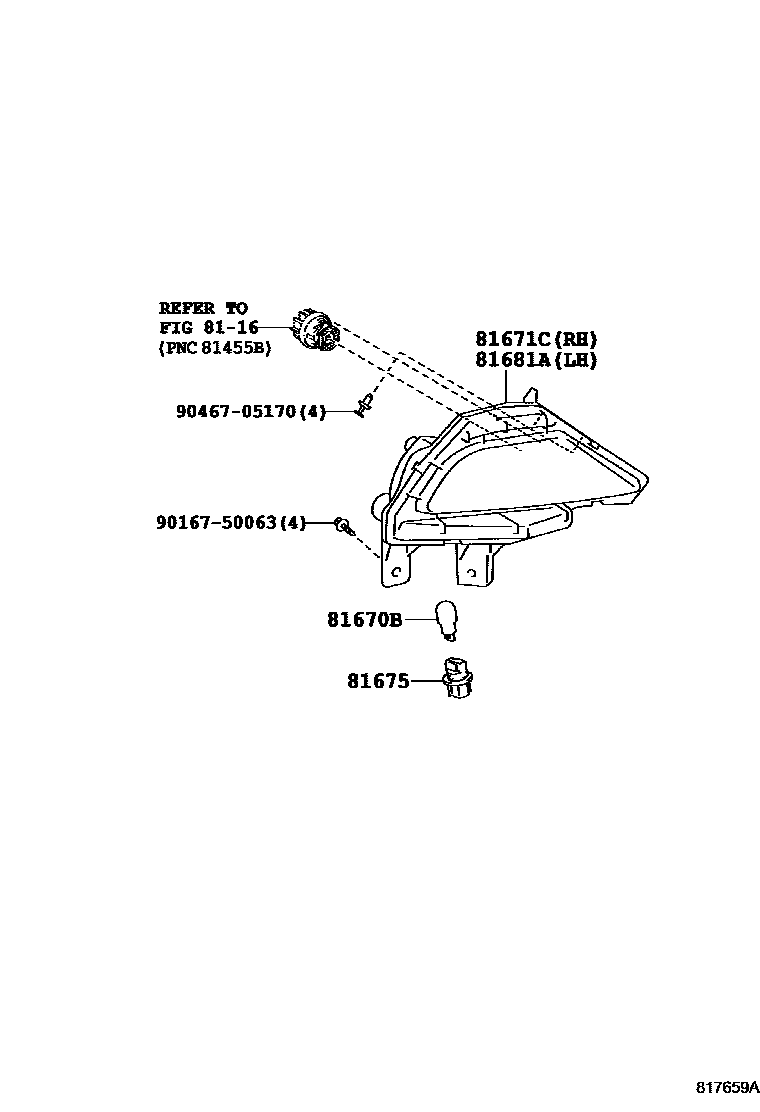

Toyota RAV4 — BACK UP LAMP
8116REAR FOG LAMP
81670BBULB(FOR BACK-UP LAMP)
main90981-11059×2iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
12V 16W
81671CLENS & BODY, BACK-UP LAMP, RH
main81457-42060iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M); ZSA44..RHD..(G,M)201510-201810
EXCEPT FOR WVTA&HONG KONG,MACAO SPEC
EXCEPT FOR WVTA
81675SOCKET & WIRE, BACK-UP LAMP
81681ALENS & BODY, BACK-UP LAMP, LH
main81456-42060iWWA42;ZSA44..RHD..X;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
EXCEPT FOR WVTA
9016750063
main90167-50063
9046705170
main90467-05170
7 parts on this diagram · 1 diagram in section
BACK UP LAMP for Toyota RAV4
This section contains 7 genuine Toyota parts for the BACK UP LAMP system of the Toyota RAV4. Key components include: REAR FOG LAMP, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, RH, SOCKET & WIRE, BACK-UP LAMP, LENS & BODY, BACK-UP LAMP, LH.
