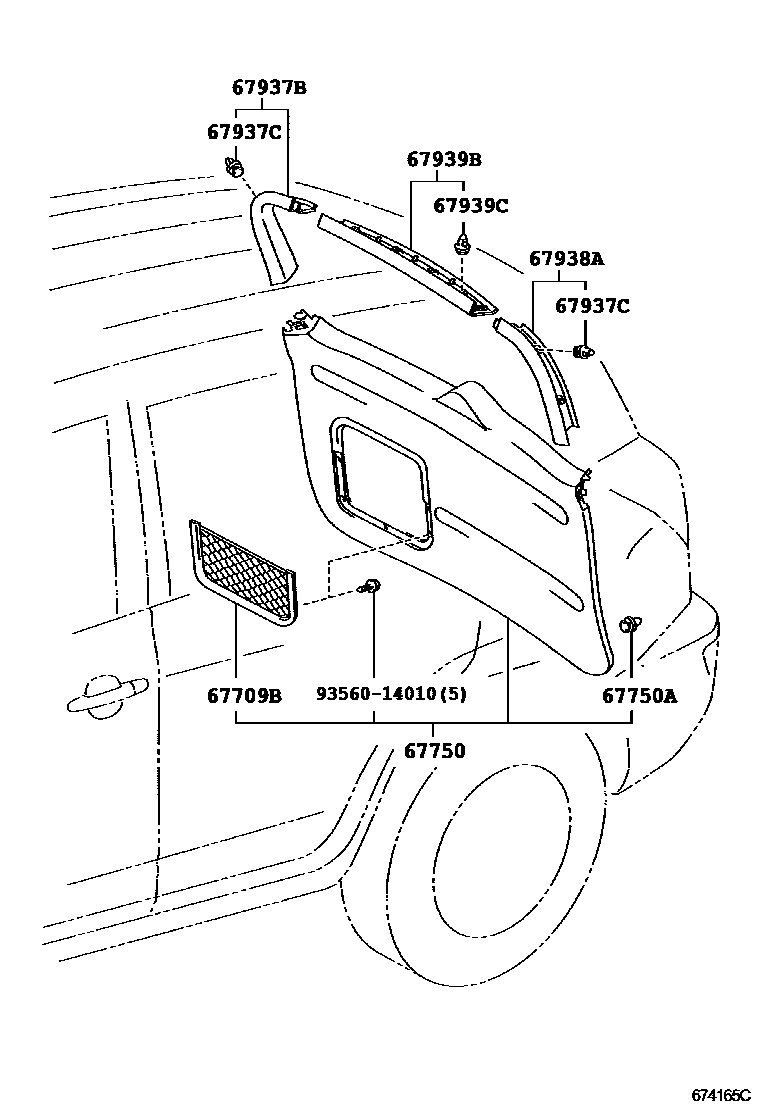

Toyota RAV4 — BACK DOOR PANEL & GLASS

0001 1 0002 1W(SPARE TIRE CARRIER) 0003 1W/O(SPARE TIRE CARRIER) 0004 1W(SPARE TIRE CARRIER) 0005 1W/O(SPARE TIRE CARRIER)

67709BPOCKET SUB-ASSY, BACK DOOR TRIM

main67709-42020-B0iACA33,38;ACA30,31,ALA30..G200511-200812

DK.GRAY,TRIM1#,4#

main67709-42020-B0iACA33,38;ACA30,31,ALA30..G200511-200812

DK.GRAY,TRIM1#

main67709-42020-B1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

DK.GRAY,TRIM1#,4#

main67709-42020-B1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

DK.GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-42020-B0iACA33,38;ACA30,31,ALA30..G200511-201212

DK.GRAY,TRIM1#,4#

main67750-42020-B0iACA33,38;ACA30,31,ALA30..G200511-201212

DK.GRAY,TRIM1#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

67937BGARNISH, BACK DOOR SIDE, RH

main67937-42030-A0iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main67937-42030-B0iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

main67937-42030-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10161iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42030-A0iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main67938-42030-B0iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

main67938-42030-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

67939BGARNISH, BACK DOOR, CENTER

main67939-42020-A0iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main67939-42020-B0iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

main67939-42020-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

9356014010

main93560-14010

9 parts on this diagram · 5 diagrams in section
