Toyota RAV4 — BACK DOOR LOCK & HINGE

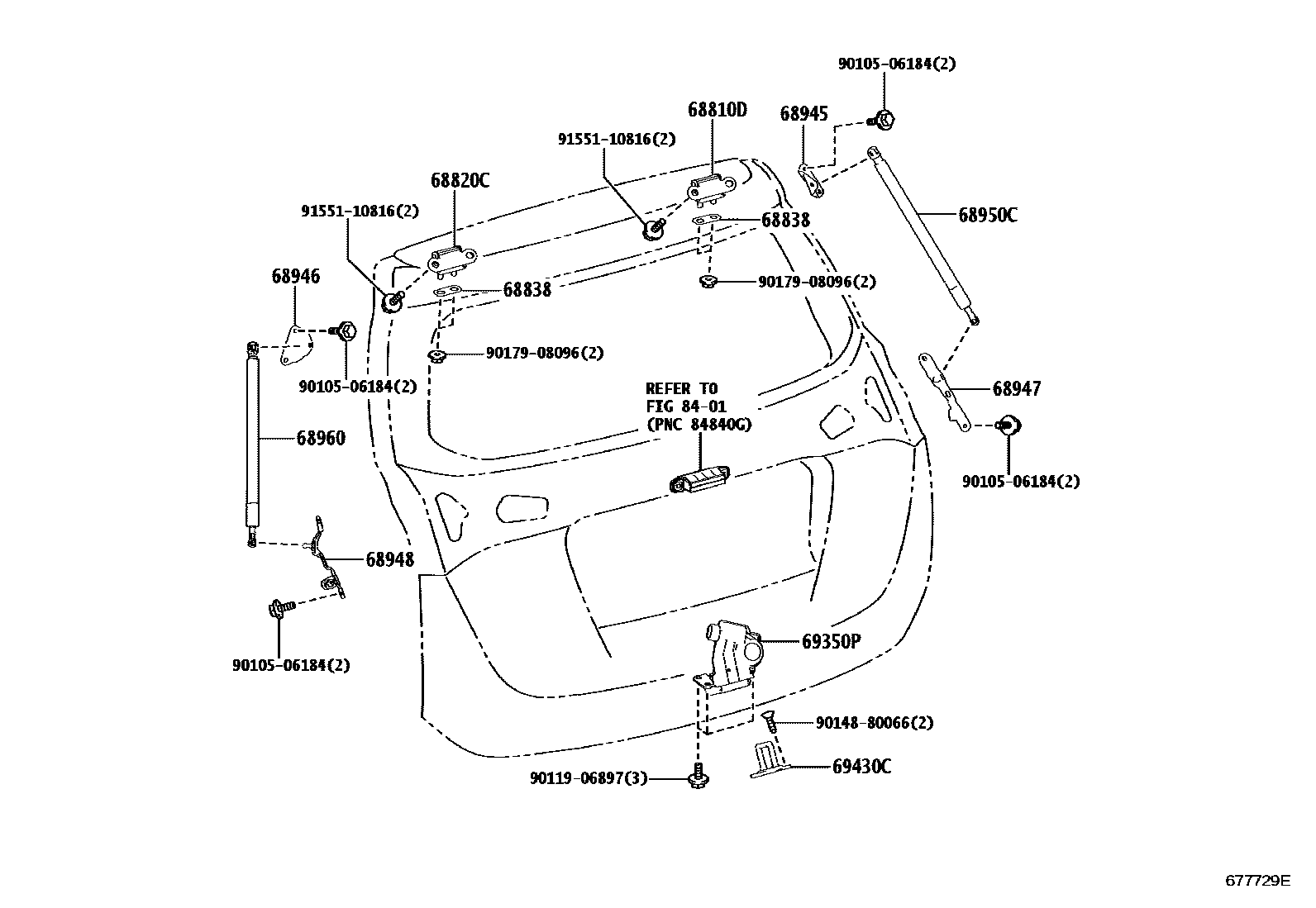

Parts diagram

68810DHINGE ASSY, BACK DOOR, RH

main68810-42070i201510-201810

68820CHINGE ASSY, BACK DOOR, LH

main68810-42070i201212-201510

68838PAD, BACK DOOR HINGE, NO.1

main68838-42010×2i201510

T=1.0

main68838-42020×2i201510-201810

T=1.5

main68838-42030×2i201212-201510

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-42010i201510-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-42010i201510-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68903-42010i201212-201306

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68903-42011i201307-201308

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68903-42012i201309-201312

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68903-42013i201312-201406

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68903-42014i201510-201801

BASIC PACKAGE&AUDIO-WITHOUT; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68903-42015i201801-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68947-42020i201212-201510

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68904-42010i201212-201306

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68904-42011i201307-201308

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68904-42012i201309-201312

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68904-42013i201312-201406

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68904-42014i201510-201801

BASIC PACKAGE&AUDIO-WITHOUT; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68904-42015i201801-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main68948-42020i201212-201510

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

68950CSTAY ASSY, BACK DOOR, RH

main68950-0R010i201212-201510

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68950-0R020i201510-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

68960STAY ASSY, BACK DOOR, LH

main68960-0R010i201212-201510

BASIC PACKAGE; POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH(POWER BACK DOOR)

main68960-0R020i201510-201909

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28151i201212-201510

BASIC PACKAGE; POWER DOOR LOCK-WITH

main69350-28160i201212-201510

POWER DOOR LOCK-WITH(POWER BACK DOOR)

main69350-42060i201510-201810

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main69350-42070i201510

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030i201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

17 parts on this diagram · 2 diagrams in section

BACK DOOR LOCK & HINGE for Toyota RAV4

This section contains 25 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota RAV4. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, UNIT ASSY SET, POWER BACK DOOR, RH, UNIT ASSY SET, POWER BACK DOOR, LH.
