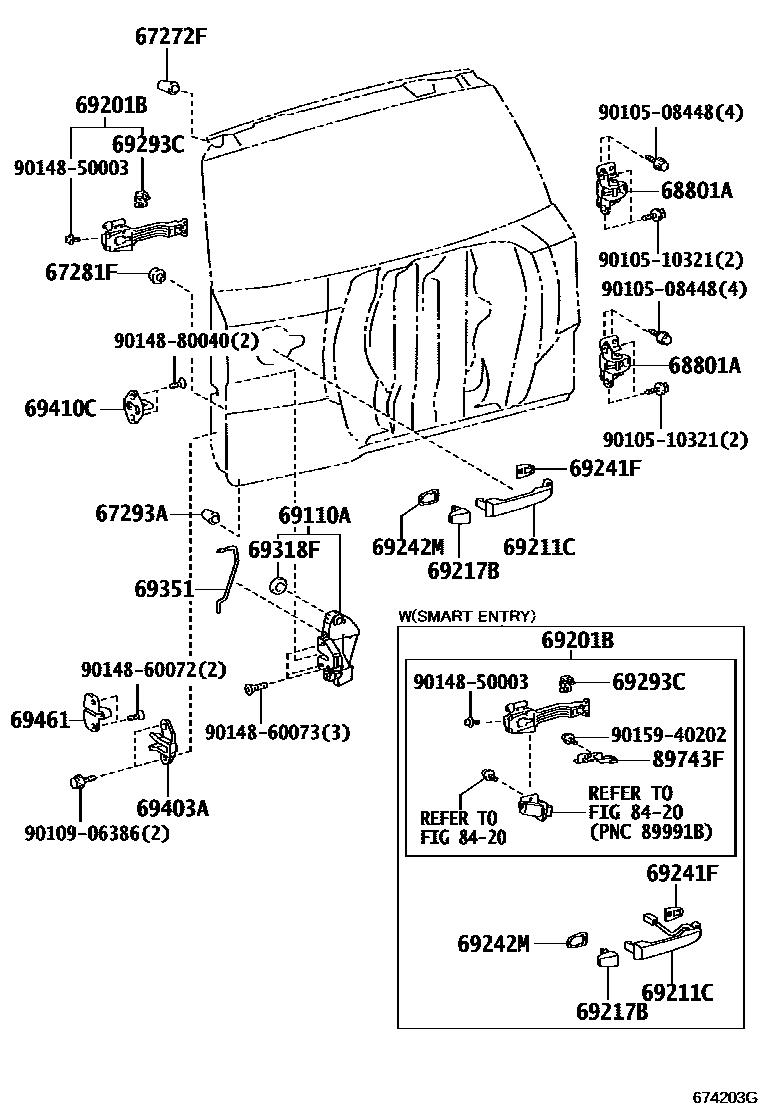

Toyota RAV4 — BACK DOOR LOCK & HINGE

67272FCUSHION, BACK DOOR STOPPER, NO.2

main90541-09108iACA33..G..GCC;ACA30,31,ALA30200511-201212

67281FSTOPPER, BACK DOOR, LOWER

main67282-46010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

67293ACUSHION, BACK DOOR STOPPER

main67272-42010iALA30..6FC..ATYPE;ALA3#,ZSA3#..G..BTYPE200903-201212

main67293-42030iACA33..G..GCC;ACA30,31,ALA30200808-201212

main67293-60030iACA3#,ALA30,GSA33200511-200807

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-42050iACA33..G..GCC;ACA30,31,ALA30200511-201212

sub68801-42051

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-42130iACA33,38,GSA33;ACA30,ALA3#,ZSA3#..LHD200511-201203

sub69110-42131

main69110-42131iACA33,38,GSA33;ACA30,ALA3#,ZSA3#..LHD201204-201212

main69110-42140iACA30,ALA3#,ZSA3#..RHD200511-201203

sub69110-42141

main69110-42141iACA30,ALA3#,ZSA3#..RHD201204-201212

69201BFRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE

main69201-52040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69211CHANDLE, BACK DOOR OUTSIDE

main69211-12220-03iACA38;ACA33..4FC..X;ACA33..LHD..5F;ACA30,33,ALA3#,GSA33,ZSA3#..G200511-201212

WHITE PEARL CS.,070

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-A0iACA33,38,GSA33..X;ACA30,ALA30..DCR,DCRE,HTWC200511-201212

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C1iACA3#,ALA30,GSA33200511-201212

BLACK,202

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-E4iACA33,38,GSA33;ACA30,31,ALA30..G200511-200812

BEIGE ME.,4R4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G4iACA33,38,GSA33;ACA30,31,ALA30..G200511-200812

LT.GREEN ME.,6T6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K5iALA30..DCRL200812-201002

DK.VIOLET M.M.,9AF

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-L8iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BRONZE M.M.,4T3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-L9iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BEIGE ME.,4T8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P2iACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

DK.GRAY MC.,1E0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P5iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

GRAY ME.,1G3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P6iACA3#,ALA30,GSA33200511-201212

SILVER ME.,1F7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P9iACA3#,ALA3#,GSA33,ZSA3#201002-201212

DK. STEEL MC.,1H2

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-Q0iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200511-201008

DK.GREEN MC.,6T3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R8iACA3#,ALA30,GSA33200511-200812

DK.BLUE MC.,8S6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R9iACA3#,ALA30,GSA33200511-201212

GRAYISH BLUE ME.,8R3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X2iACA30,33,ALA3#,ZSA3#..EUR201002-201008

DK. RED M.M.,3Q3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X4iACA33,38,GSA33;ACA30,31,ALA30..G200511-201212

RED M.M.,3R3

sub69211-12903

sub69211-12220

sub69211-52090

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-12040-A0iACA33,38,GSA33..X;ACA30,ALA30..DCR,DCRE,HTWC200511-201212

SUPER WHITE 2,040

sub69217-12040

main69217-12040-A9iACA38;ACA33..4FC..X;ACA33..LHD..5F;ACA30,33,ALA3#,GSA33,ZSA3#..G200511-201212

WHITE PEARL CS.,070

sub69217-12040

main69217-12040-B8iACA30,31,33,ALA30,GSA33..ARL,EUR200511-200812

DK.GRAY MC.,1E0

sub69217-12040

main69217-12040-C1iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

BLACK,202

sub69217-12040

main69217-12040-D7iACA30,33,ALA3#,ZSA3#..EUR201002-201008

DK. RED M.M.,3Q3

sub69217-12040

main69217-12040-D9iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

RED M.M.,3R3

sub69217-12040

main69217-12040-E7iACA33,38,GSA33;ACA30,31,ALA30..G200511-200812

BEIGE ME.,4R4

sub69217-12040

main69217-12040-G8iACA30,ALA30..G;ACA33,38,GSA33200511-201008

DK.GREEN MC.,6T3

sub69217-12040

main69217-12040-G9iACA33,38,GSA33;ACA30,31,ALA30..G200511-200812

LT.GREEN ME.,6T6

sub69217-12040

main69217-12040-K5iACA30,ALA3#,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM)200812-201002

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF

sub69217-12040

main69217-12040-K5iALA30..DCRL200812-201002

DK.VIOLET M.M.,9AF

sub69217-12040

main69217-12040-L4iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BRONZE M.M.,4T3

sub69217-12040

main69217-12040-L5iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BEIGE ME.,4T8

sub69217-12040

main69217-12040-P0iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

GRAY ME.,1G3

sub69217-12040

main69217-12040-P1iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

SILVER ME.,1F7

sub69217-12040

main69217-12040-P5iACA3#,ALA3#,GSA33,ZSA3#201002-201212

DK. STEEL MC.,1H2

sub69217-12040

main69217-12040-R5iACA3#,ALA30,GSA33200511-200812

DK.BLUE MC.,8S6

sub69217-12040

main69217-12040-R6iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

GRAYISH BLUE ME.,8R3

sub69217-12040

69241FPAD, DOOR OUTSIDE HANDLE

main69241-42020iACA33..G..GCC;ACA30,31,ALA30200511-201212

69242MPAD, BACK DOOR OUTSIDE HANDLE, REAR

main69242-42010iACA3#,ALA30,GSA33200511-200709

main69242-52020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200710-201212

69293CSNAP, BACK DOOR HANDLE

main69293-12030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69318FSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69378-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-60011iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-60010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

8420

89743FBRACKET, ELECTRICAL KEY WIRE HARNESS

9010508448

main90105-08448

9010510321

main90105-10321

9010906386

main90109-06386

9014850003

main90148-50003

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9015940202

main90159-40202

26 parts on this diagram · 1 diagram in section
