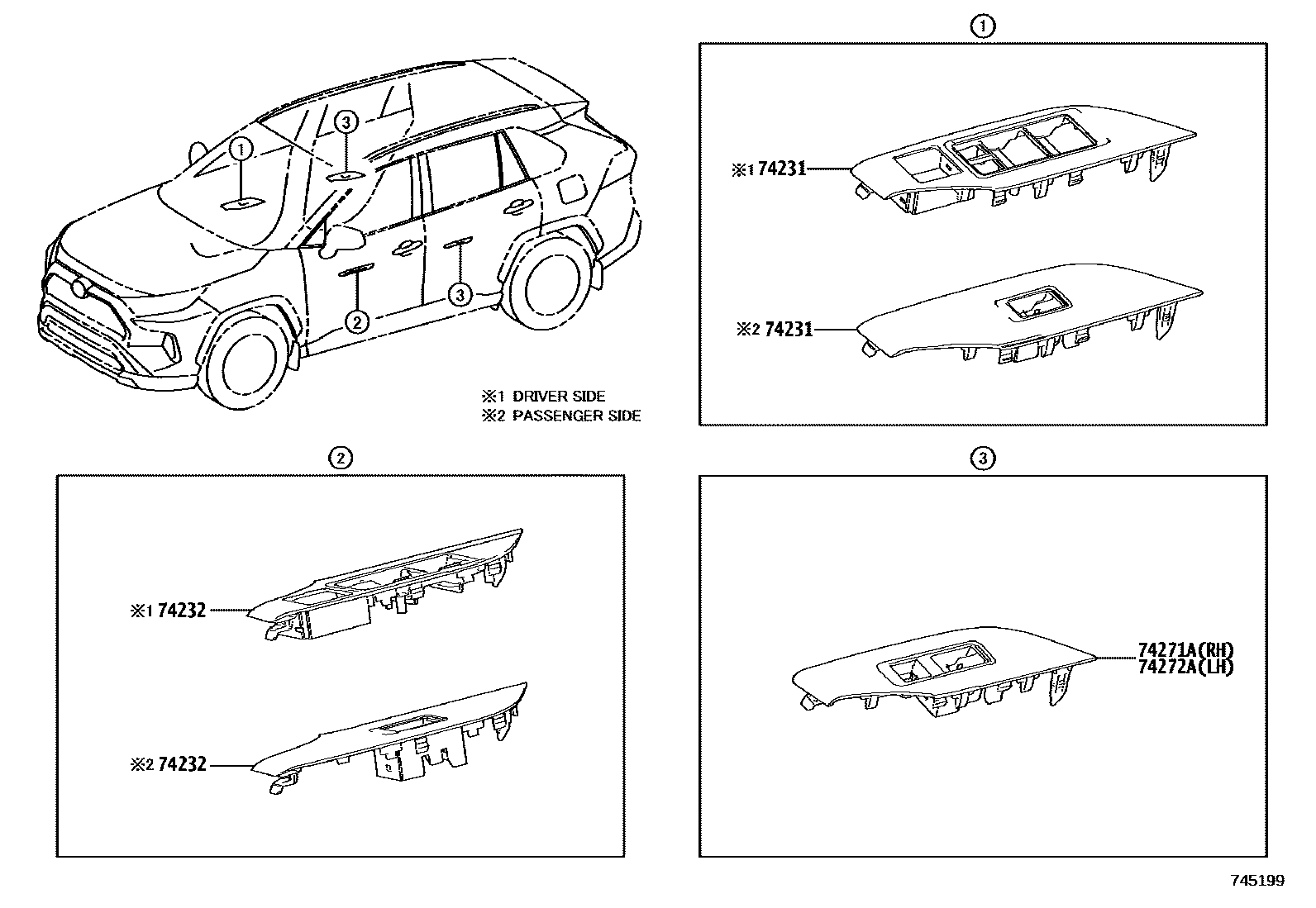

Toyota RAV4 — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42340iAXAP54..LHD202006-202310

main74231-42360iAXAP54..RHD202006-202310

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-42220iAXAP54..LHD202006-202310

main74232-42240iAXAP54..RHD202006-202310

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-42130iAXAP54202006-202310

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-42130iAXAP54202006-202310

4 parts on this diagram · 2 diagrams in section
