Toyota RAV4 — ARMREST & VISOR

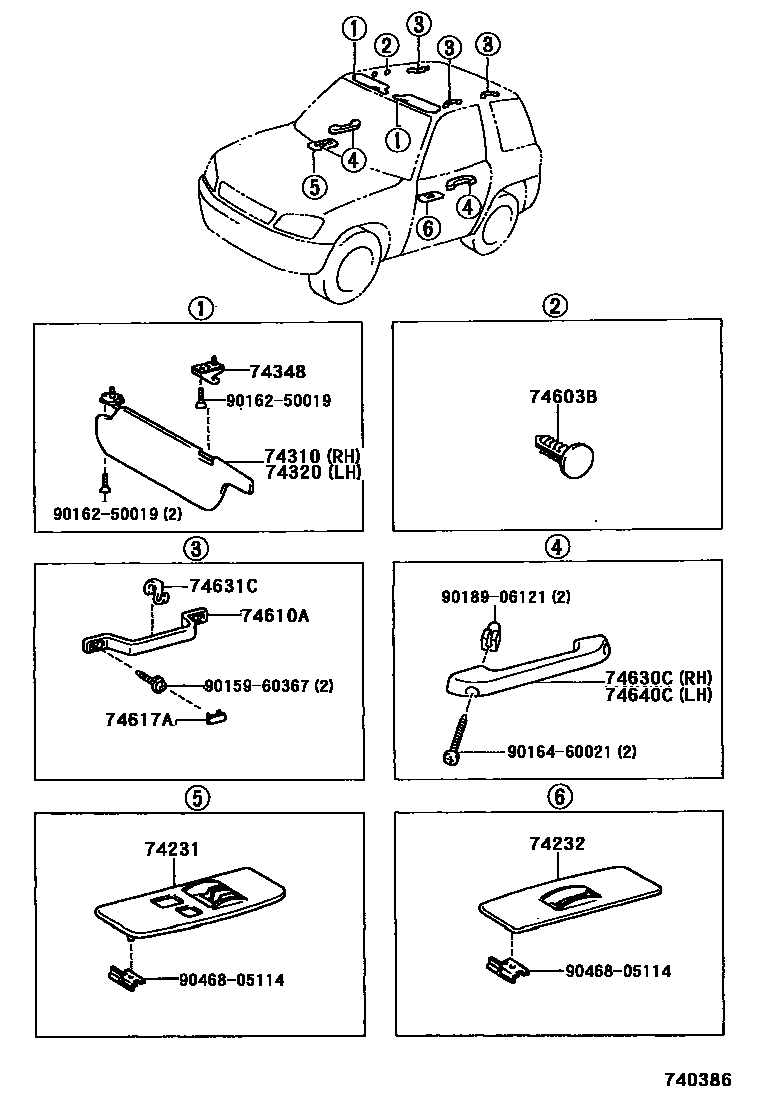

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-33050-B1i199504-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74231-42010-B0i199404-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74231-42020-B0i199404-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74231-42040-B1i199709-200008
DARK GRAY,TRIM10,11
main74231-42040-B1i199808-200005
W(POWER WINDOW---FRONT ONLY),DARK GRAY,TRIM10,11,12
main74231-42040-B1i199709-199808
W(POWER WINDOW---FRONT ONLY),DARK GRAY,TRIM10,12
main74231-42060-B1i199808-200005
W(POWER WINDOW),DARK GRAY,TRIM1#,10,12
main74231-42060-B1i199709-200008
W(POWER WINDOW),DARK GRAY,TRIM10,12
main74231-42070-B0i199808-200008
DARK GRAY,TRIM1#,10,12
main74231-42070-B0i199709-200008
DARK GRAY,TRIM10,11
main74231-42070-B0i199709-200008
DARK GRAY,TRIM10,12
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-33011-B0i199504-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74232-42010-B0i199404-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74232-42020-B0i199404-199709
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main74232-42030-B1i199808-200005
W(POWER WINDOW---FRONT ONLY),DARK GRAY,TRIM1#,10,12
main74232-42030-B1i199709-200008
DARK GRAY,TRIM10,11
main74232-42030-B1i199709-199808
W(POWER WINDOW---FRONT ONLY),DARK GRAY,TRIM10,12
main74232-42040-B1i199709-200008
W(POWER WINDOW),DARK GRAY,TRIM10,12
main74232-42040-B1i199808-200008
W(POWER WINDOW),DARK GRAY,TRIM1#,10,12
main74232-42050-B0i199808-200005
W(POWER WINDOW),DARK GRAY,TRIM10,11,12
main74232-42050-B0i199709-200008
W(POWER WINDOW),DARK GRAY,TRIM10,12
main74232-42050-B0i199709-200008
DARK GRAY,TRIM10,11
74310VISOR ASSY, RH
main74310-42020-B0i199404-199406
LT. BLUISH GRAY,TRIM1#
main74310-42020-B1i199406-199608
LT. BLUISH GRAY,TRIM1#
main74310-42021-B1i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
main74310-42030-B0i199404-199406
LT. BLUISH GRAY,TRIM1#
main74310-42030-B1i199406-199709
LT. BLUISH GRAY,TRIM1#
main74310-42030-B2i199709-199808
LT. GRAY,TRIM10,11
main74310-42030-B2i199709-199808
LT. GRAY,TRIM10,12
main74310-42031-B2i199808
LT. GRAY,TRIM10,12
main74310-42031-B2i199808
LT. GRAY,TRIM10,11
main74310-42110-B0i199504-199608
BLUISH GRAY,TRIM1#
main74310-42111-B0i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
main74310-42130-B0i199608-199709
HONG KONG SPEC,LT. BLUISH GRAY,TRIM1#
main74310-42130-B0i199608-199709
LT. BLUISH GRAY,TRIM1#
main74310-42150-B0i199608-199709
HONG KONG SPEC OR SINGAPORE SPEC,LT. BLUISH GRAY,TRIM1#
main74310-42150-B0i199608-199709
LT. BLUISH GRAY,TRIM1#
main74310-42200-B0i199709-199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,12
main74310-42200-B0i199709-199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,11
main74310-42201-B0i199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,12
main74310-42201-B0i199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,11
main74310-42210-B0i199709-199808
LT. GRAY,TRIM10,12
main74310-42210-B0i199709-199808
LT. GRAY,TRIM10,11
main74310-42211-B0i199808
LT. GRAY,TRIM10,12
main74310-42211-B0i199808
LT. GRAY,TRIM10,11
74320VISOR ASSY, LH
main74320-42020-B0i199404-199406
LT. BLUISH GRAY,TRIM1#
main74320-42020-B1i199406-199709
LT. BLUISH GRAY,TRIM1#
main74320-42020-B2i199709-199808
LT. GRAY,TRIM10,11
main74320-42020-B2i199709-199808
LT. GRAY,TRIM10,12
main74320-42021-B2i199808
LT. GRAY,TRIM10,11
main74320-42021-B2i199808
LT. GRAY,TRIM10,12
main74320-42030-B0i199404-199406
LT. BLUISH GRAY,TRIM1#
main74320-42030-B1i199406-199608
LT. BLUISH GRAY,TRIM1#
main74320-42031-B1i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-42100-B0i199504-199608
BLUISH GRAY,TRIM1#
main74320-42101-B0i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-42130-B0i199601-199608
LT. BLUISH GRAY,TRIM1#
main74320-42131-B0i199608-199709
LT. BLUISH GRAY,TRIM1#
main74320-42140-B0i199608-199709
MIDDLE SOUTH AMERICA SPEC,LT. BLUISH GRAY,TRIM1#
main74320-42140-B0i199608-199709
LT. BLUISH GRAY,TRIM1#
main74320-42150-B0i199608-199709
MIDDLE SOUTH AMERICA SPEC,LT. BLUISH GRAY,TRIM1#
main74320-42150-B0i199608-199709
LT. BLUISH GRAY,TRIM1#
main74320-42150-B0i199611-199709
W(16CM SPEAKER),LT. BLUISH GRAY,TRIM1#
main74320-42160-B0i199709-199808
LT. GRAY,TRIM10,11
main74320-42160-B0i199709-199808
LT. GRAY,TRIM10,12
main74320-42161-B0i199808
LT. GRAY,TRIM10,11
main74320-42161-B0i199808
LT. GRAY,TRIM10,12
main74320-42230-B0i199709-199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,12
main74320-42230-B0i199709-199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,11
main74320-42230-B0i199712-199808
LT. GRAY,TRIM10,11
main74320-42231-B0i199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,11
main74320-42231-B0i199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),LT. GRAY,TRIM10,12
main74320-42240-B0i199709-199808
LT. GRAY,TRIM10,12
main74320-42240-B0i199709-199808
LT. GRAY,TRIM10,11
main74320-42241-B0i199808
LT. GRAY,TRIM10,11
main74320-42241-B0i199808
LT. GRAY,TRIM10,12
74348HOLDER, VISOR
main74348-22020-B4i199404-199709
LT.BLUISH GRAY,TRIM1#
main74348-22020-B6i199709-200008
LT.GRAY,TRIM10,11
main74348-22020-B6i199808-200008
LT.GRAY,TRIM10,11,12
main74348-22020-B6i199709-200008
LT.GRAY,TRIM10,12
74603BCLIP (FOR ASSIST GRIP)
main90467-06070-B1i199404-199709
LT.BLUISH GRAY,TRIM1#
main90467-06070-B4i199709-200008
LT.GRAY,TRIM10,12
main90467-06070-B4i199709-200008
LT.GRAY,TRIM10,11
main90467-06070-B4i199808-200008
LT.GRAY,TRIM10,11,12
74610AGRIP SUB-ASSY, ASSIST
main74603-16010-B0i199404-199709
LT.BLUISH GRAY,TRIM1#
main74603-16010-B1i199808-200008
GRAY,TRIM10,11,12
main74603-16010-B1i199709-200008
GRAY,TRIM10,12
main74603-16010-B1i199709-200008
GRAY,TRIM10,11
main74610-12020-B1i199504-199709
W(MOON ROOF),BLUISH GRAY,TRIM1#
main74610-12020-B2i199709-200008
W(MOON ROOF),LT.GRAY,TRIM10,12
main74610-12020-B2i199709-200008
W(MOON ROOF),LT.GRAY,TRIM10,11
main74610-12020-B2i199808-200008
W(MOON ROOF),LT.GRAY,TRIM10,11,12
main74610-16010-B3i199601-199709
LT.BLUISH GRAY,TRIM1#
main74610-42020-B0i199712-200005
SHADOW GRAY,TRIM10,11,CENTER PILLAR
74617APLUG, ASSIST GRIP
main74617-16010-B7i199404-199709
LT.BLUISH GRAY,TRIM1#
main74617-16010-B8i199709-200008
LI. GRAY,TRIM10,12
main74617-16010-B8i199709-200008
LI. GRAY,TRIM10,11
main74617-16010-B8i199808-200008
LI. GRAY,TRIM10,11,12
main74617-26010-B5i199712-200005
SHADOW GRAY,TRIM10,11,REAR RH
main74617-26020-B5i199712-200005
SHADOW GRAY,TRIM10,11,REAR LH
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main74630-42020-B0i199504-199608
BLUISH GRAY,TRIM1#
main74630-42030-B0i199608-199709
BLUISH GRAY,TRIM1#
main74630-42030-B1i199709
SHADOW GRAY,TRIM10,11
main74630-42030-G0i199611-199612
LIMITED EDITION FOR '97 SPRING CAMPAIGN,GREEN,TRIM1#
main74630-42030-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main74630-42040-B0i199608-199709
BLUISH GRAY,TRIM1#
main74630-42040-B1i199709-199808
SHADOW GRAY,TRIM10,12
main74630-42040-B1i199808
SHADOW GRAY,TRIM1#,10,12
main74630-42040-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
74631CHOOK, COAT
main74631-20040-B0i199504-199608
LT.BLUISH GRAY,TRIM1#
main74631-42010-B0i199808-200008
LT.GRAY,TRIM10,11,12
main74631-42010-B0i199709-200008
LT.GRAY,TRIM10,12
main74631-42010-B0i199709-200008
LT.GRAY,TRIM10,11
main74631-42020-B0i199808-200008
W(MOON ROOF),LT.GRAY,TRIM10,11,12
main74631-42020-B0i199709-200008
W(MOON ROOF),LT.GRAY,TRIM10,12
main74631-42020-B0i199709-200008
W(MOON ROOF),LT.GRAY,TRIM10,11
74640CGRIP ASSY, DOOR ASSIST, LH
main74630-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main74630-42020-B0i199504-199608
BLUISH GRAY,TRIM1#
main74630-42030-B0i199608-199709
BLUISH GRAY,TRIM1#
main74630-42030-B1i199709
SHADOW GRAY,TRIM10,11
main74630-42030-G0i199611-199612
LIMITED EDITION FOR '97 SPRING CAMPAIGN,GREEN,TRIM1#
main74630-42030-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main74630-42040-B0i199608-199709
BLUISH GRAY,TRIM1#
main74630-42040-B1i199709-199808
SHADOW GRAY,TRIM10,12
main74630-42040-B1i199808
SHADOW GRAY,TRIM1#,10,12
main74630-42040-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
9015960367
main90159-60367
9016250019
main90162-50019
9016460021
main90164-60021
9018906121
main90189-06121
9046805114
main90468-05114

16 parts on this diagram · 4 diagrams in section

ARMREST & VISOR for Toyota RAV4

This section contains 19 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RAV4. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR.
